3 EC350 installation
3.2 Overview of installation
Honeywell 2024
23
3.2 Overview of installation
The EC350 installation consists of mounting and wiring EC350 according to the instructions given in this
section. Before proceeding, read the installation information provided in this section and refer to the
section “Model number interpretation ”, to familiarize yourself with the EC350 model you have selected.
Based on the mounting selected, refer to one of the following two methods for installing EC350 on a
meter.
l

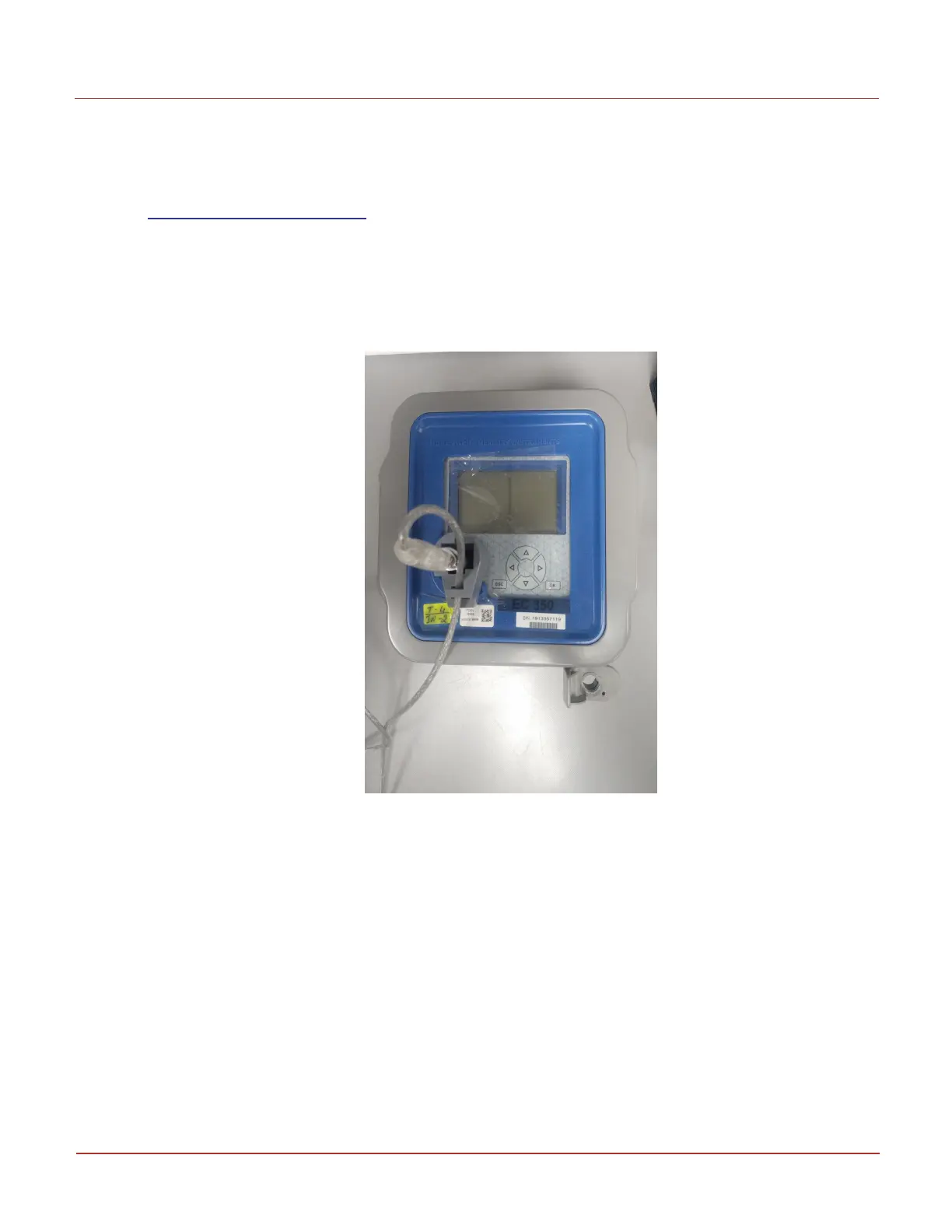

Installing EC350 on conventional diaphragm, rotary or turbine gas meters. The following image
illustrates with a UMB.
l
Installing EC350 on a rotary mount. The following image illustrates EC350 configured for a
rotary mount. (Adapter plate, which varies by meter model, not shown.)
