3.5 Installing EC350 on conventional diaphragm, rotary or turbine gas
meters
This section describes the procedures to install EC350 on conventional diaphragm, rotary or turbine gas
meters, equipped with instrument drive capability.
l
Installing the index slide and label
l
Changing the drive rotation
l
Mounting EC350 on the meter
l
Connecting a pressure line to EC350
3.5.1 Installing the index slide and label
The UMB has a digital index for indicating uncorrected volume. You can move the slide on the mechanical
counter to cover the digits that are not used, based on customer configuration.
To install the index slide and label
l

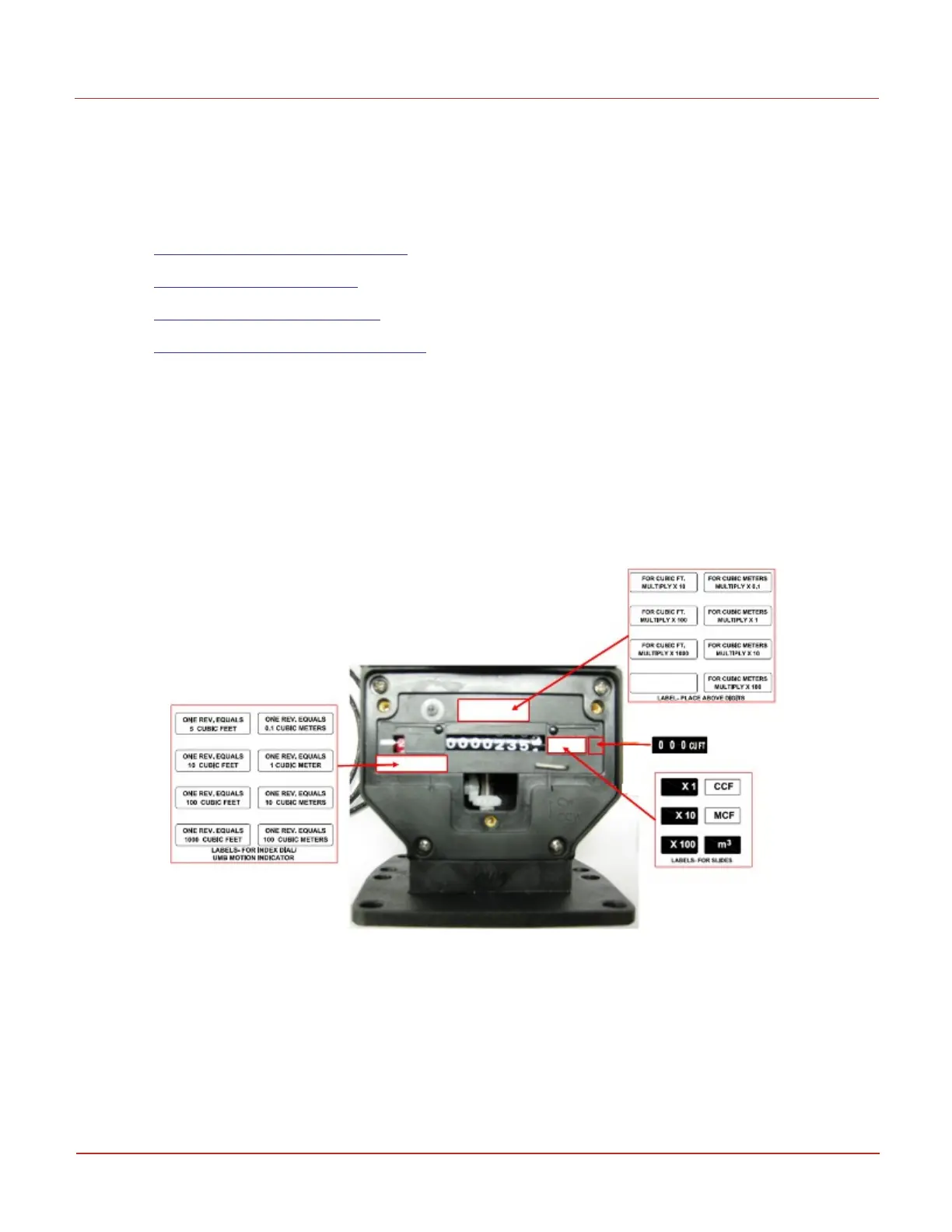

Based on your application, apply labels to the UMB. Refer to the following image for applying the
labels.
