3.6.2 Installing the temperature probe
Insert the temperature probe into the meter thermowell before mounting the EC350 on the meter.
To mount the temperature probe into the meter base:
l

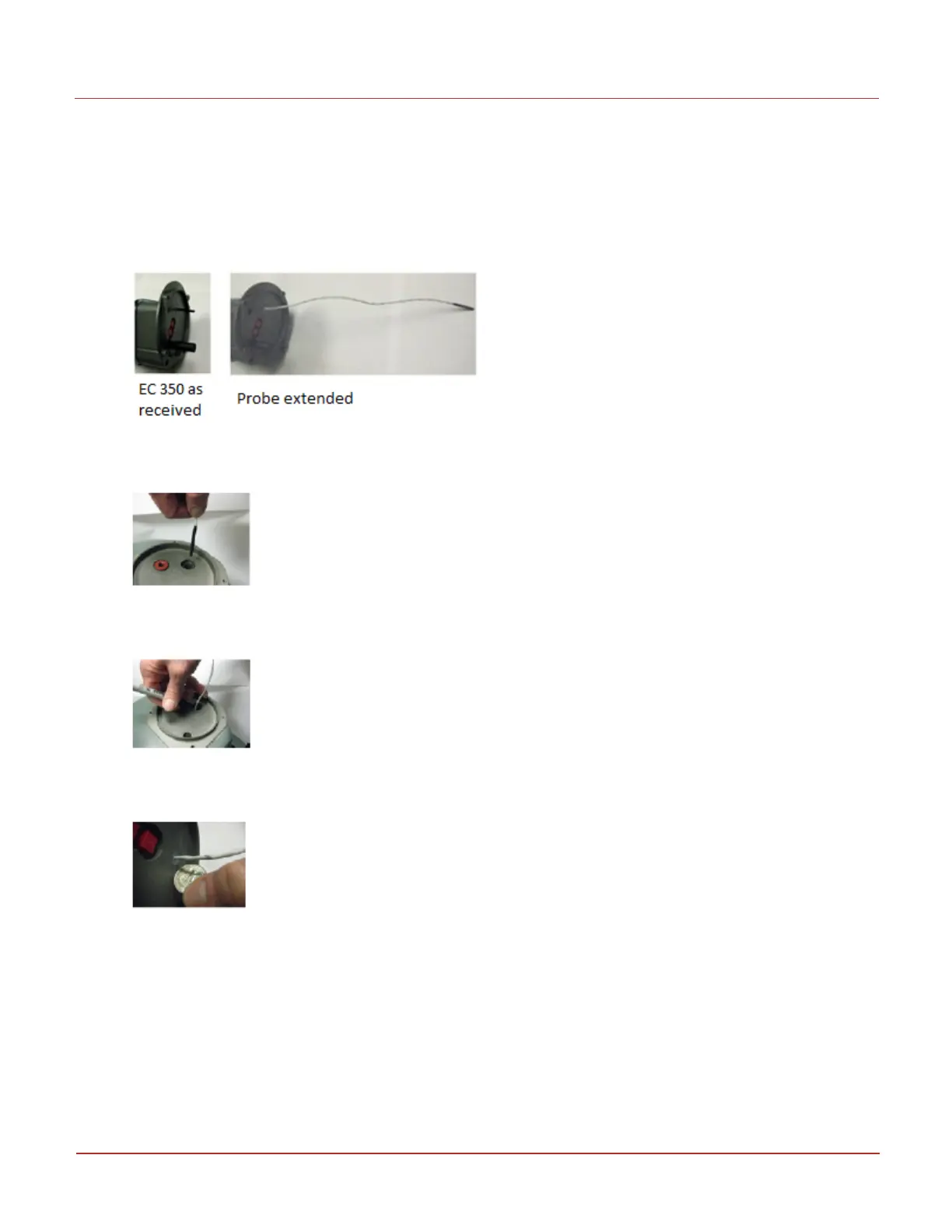

Pull the temperature probe out of the mounting plate as illustrated in the following image.
l
Use the temperature probe as a measuring device, and insert the probe until it bottoms out from
the thermowell of the meter as illustrated in the following image.
l
Mark the temperature probe cable at the point where the cable comes out from the meter body as
illustrated in the following image.
l
The temperature probe is held in place with a rubber gland in the mounting plate. Push the probe
into EC350 until the mark is one inch from the mounting plate, as illustrated in the following image.
The one inch additional length ensures that the probe bottoms out at the end of the thermowell.
l
Insert the temperature probe into the thermowell as illustrated in the following image.
The temperature probe is mounted into the meter base.
