Honeywell EC350 - 3.5.1.1 Next steps

3 EC350 installation
3.5 Installing EC350 on conventional diaphragm, rotary or turbine gas meters
Honeywell 2024
27

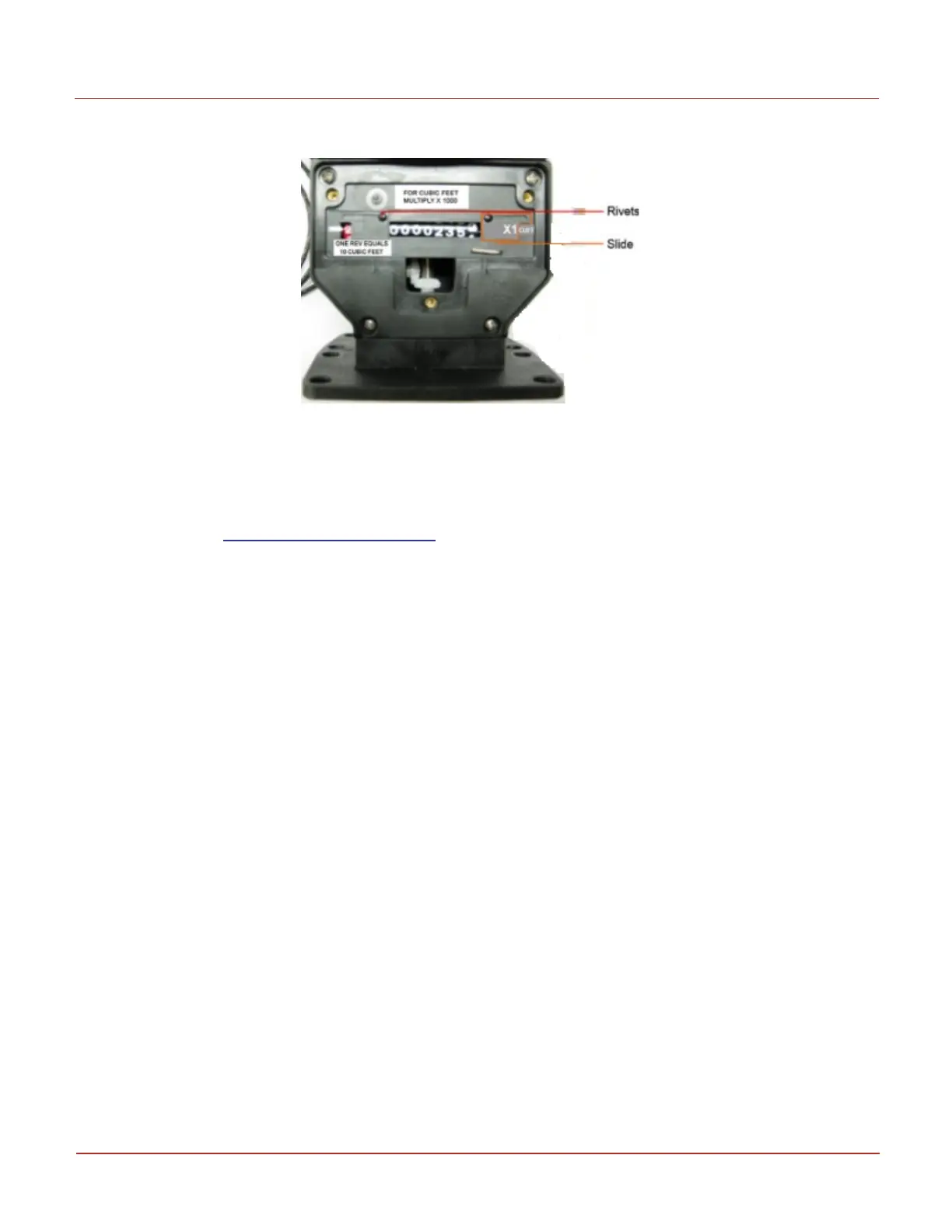

The following image illustrates the labels applied to the UMB, slides, and rivets.
3.5.1.1 Next steps
Verify if the digital index reading rotates in the proper direction. If not, perform the tasks described in the
following section, “ Changing the drive rotation ”, to position the bevel-gear thimble of EC350 to ensure
the reading rotates in the proper direction.
