3.5.2 Changing the drive rotation
The bevel-gear Thimble assembly or the Thimble gear assembly in the UMB permits either clockwise (CW)
or counterclockwise (CCW) rotation. Before installing EC350, note whether the output shaft of the meter
rotates CW or CCW. You can change the driver rotation by positioning the Thimble gear assembly of
EC350 to match the meter rotation.
To change the driver rotation to match the meter rotation
l
Remove the supplied Spline wrench from the front plate storage.

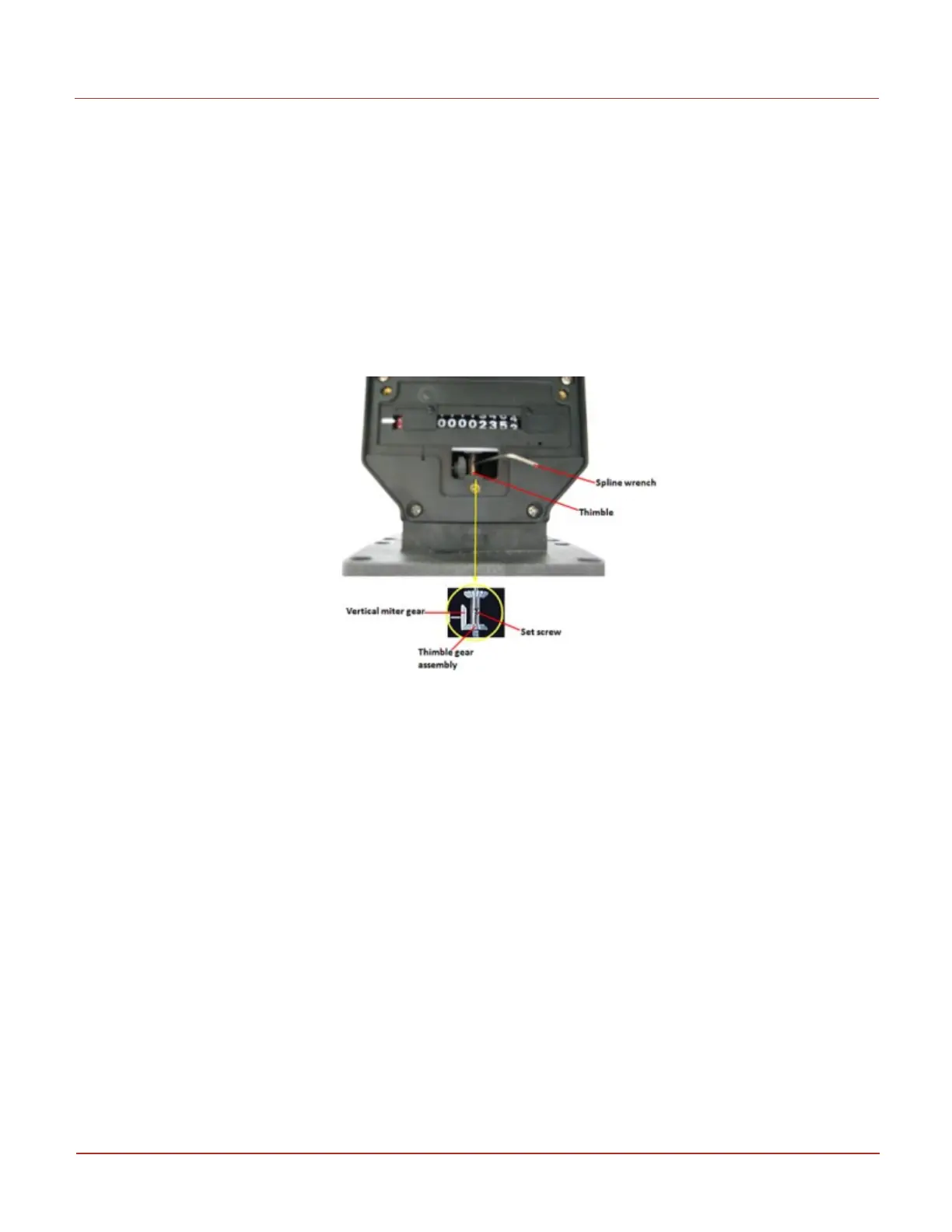

The following image illustrates the Spline wrench in the front plate storage.
l
Loosen the Set screw on the Thimble gear assembly.
The Thimble gear assembly position can be adjusted without removing the front plate of the UMB
assembly.
l
Shift the Thimble gear assembly Up to set the drive rotation in the CW direction or Down to set the
drive rotation in the CCW direction.
l
Tighten the set screw after the Thimble gear assembly is properly positioned and fully meshed with
the Vertical miter gear on the horizontal shaft.
l
Replace the transparent index cover and the three Phillips-head screws after stowing the Spline
wrench.
3 EC350 installation
3.5 Installing EC350 on conventional diaphragm, rotary or turbine gas meters
Honeywell 2024
28
