Click Span Calib.

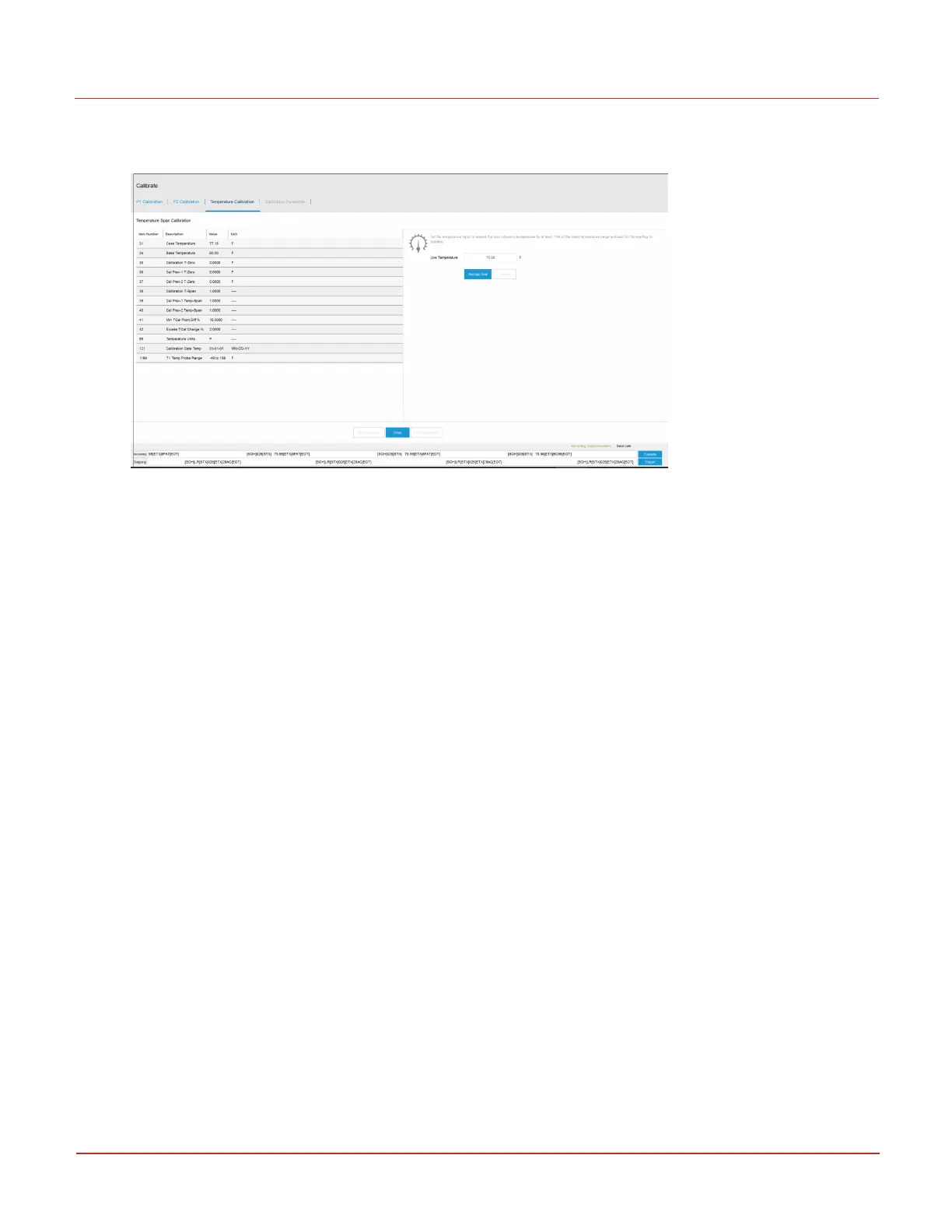

The Temperature Span Calibration page appears.
l
Insert the temperature probe of EC350 and the calibrated thermometer into a high temperature
bath, which provides the temperature span reference.
The temperature reading displayed on the Temperature Calibration dialog box must exceed the zero
reference temperature by at least 15% to proceed with span calibration.
l
After the reading stabilizes, click Average Temperature Now .
MasterLink Software Application SQL averages the reading and displays the average temperature.
l
Click Change.
The Change Temperature Calibration Value dialog box appears.
l
Change the value to accurately match the temperature measured by the calibrated thermometer
placed in the high calibration bath.
l
Click OK .
