72 IFP-75/IFP-75HV Installation/Operation Manual — P/N LS10147-001SK-E:D 06/25/2021
IDP, SK, SD and SWIFT SLC Device Installation Addressing SD SLC Devices
7.9 Addressing SD SLC Devices
This Section describes the procedure to set the address for detectors and modules. See Table 7.3 for a list of detectors that are easily
addressed at the FACP. The Installer Code is required to perform this task.
To set the address, do the following.
1. Connect a detector base temporarily to the programming terminals as shown in Figure 7.6. (You can use the same base for each
detector).

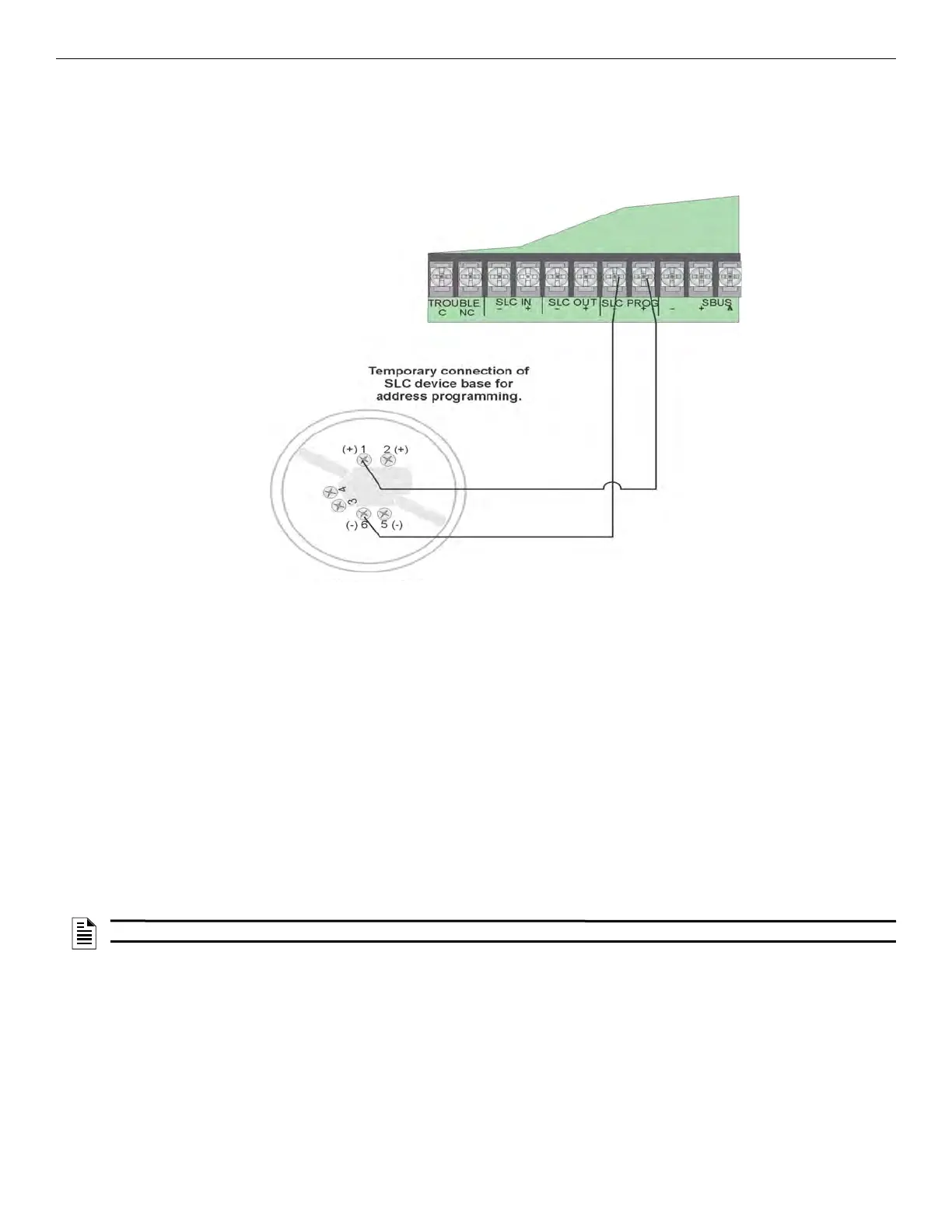

Figure 7.6 Temporary Connection of Detector Base to Panel for Addressing
2. Enter the Installer Code, then, press ENTER.
3. Select 2 to access the Point Functions.
4. Select 3 to access the Set SLC Dev Addr.
5. To select “Yes”, press the up arrow, then press ENTER.
(The panel will go into trouble at this point. You can use the SILENCE key to stop the PZT. The trouble will clear automatically when
the panel reinitializes when you finish the programming).
6. When the wait message clears, the following options display:
• 1- for Read Address. Use to read (or check) a single detector’s address.
• 2- for Write Address. Use to program a single detector’s address.
• 3- for Seq. Programming. Use to program more than one detector in sequential order.
7. If you the change addresses, write the programmed address on the back of the device.
8. To exit, press the left arrow to exit.
7.9.1 SLC Devices with DIP Switches
Set the input and the relay module addresses using the DIP switches on the module board. The chart below shows the available addresses.
For example, to select address 3, place DIP switches 1 and 2 in the up position. The range of valid addresses is 1-50. The zero, 0, is an invalid
address.
NOTE: Any device addressed over 50 will not be recognized by the panel.
