System Operation Smoke Alarm Verification
10.8 Smoke Alarm Verification

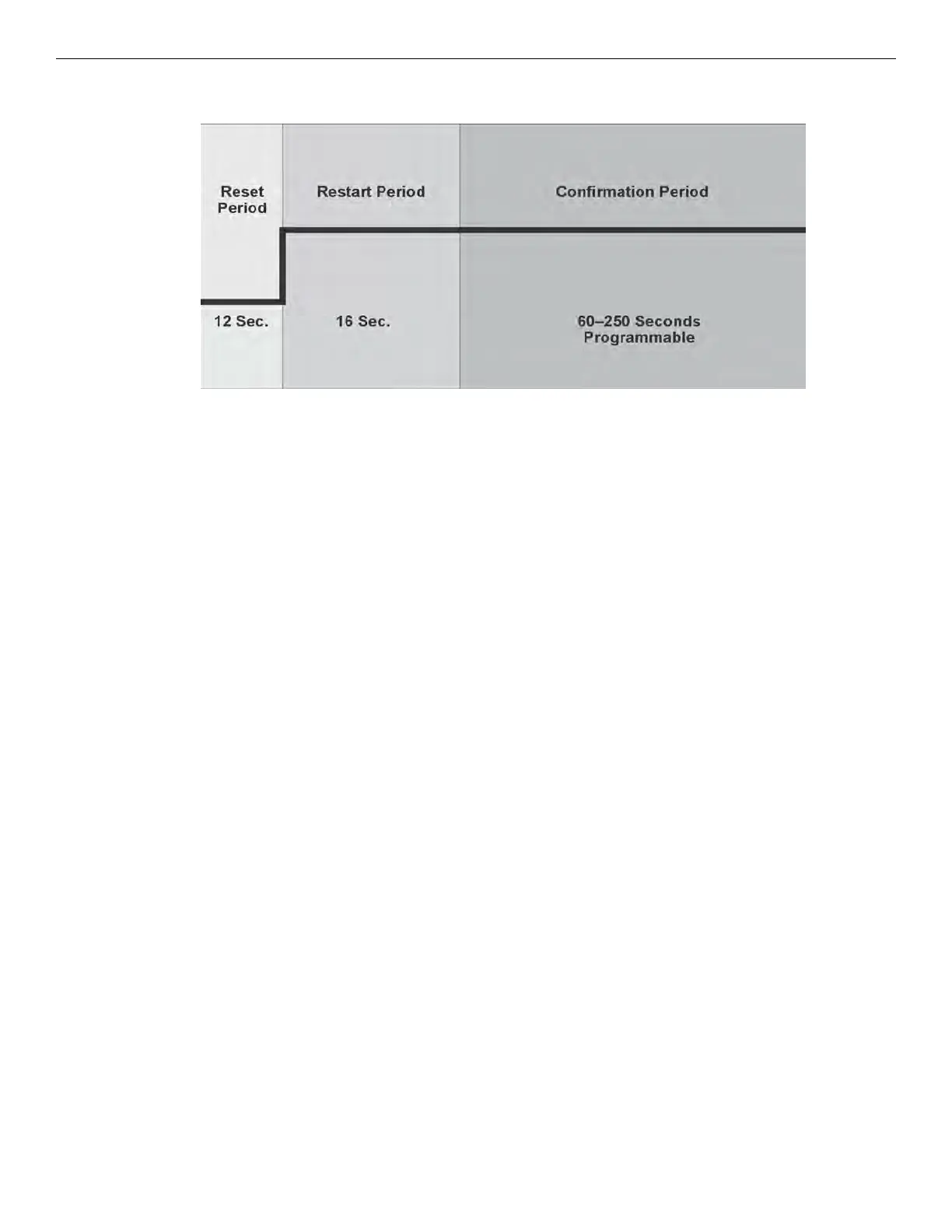

Figure 10.7 illustrates how the Smoke Alarm Verification cycle operates.
Figure 10.7 Smoke Verification Cycle
During the Confirmation Period, if there is no alarm indication then the System will return to normal operation.
10.9 Function Keys
The function keys (i.e., only) on the IFP-75have multiple features. Their macro key functionality can simplify the disabling,
activating, or inhibiting points or groups, respectively. They can also be used as status type Activation Event and used to acti-
vate the Map Inhibit. Each F-Key macro can hold 50 events.
To access the F-Key Recording Menu:
1. From the Idle screen, press and hold the F-Key for 5 seconds.
2. Enter a PIN with F-Key macro recording privileges, if prompted.
10.9.1 Recording an F-Key Macro
1. Access the F-Key Recording Menu and select the ‘Start F-KEY Recording’ option.
2. The panel will return to the Idle screen. Notice the 4th line on the display now alternates with <F# Key Recording>, where
# is the number of the F-Key being recorded.
3. Any Disabling or Activating of points, Output Groups, or templates from the site at this point will be programmed into the
macro. Do this by accessing any annunciator within the site and entering the Main Menu -> Point Functions. Then, use the
Disable/Enable Point or use the I/O Point Control to disable Output Groups or Individual Points or activate Individual
Points.
4. After you finished disabling or activating the Points/Output Groups, enter the F-Key Recording Menu again and select the
‘End F-KEY Recording’ option.
5. The panel will return to the Idle screen.
