Panel Operation Mode Conditions System Operation
10.6 Panel Operation Mode Conditions
The fire alarm control panel displays one of the following seven mode conditions at any given moment:
Table 10.1describes the seven mode operation conditions that can activate the fire alarm control panel.
• Normal • Alarm • Pre-alarm • Supervisory • Trouble • Silenced • Reset
Operation
Mode
Occurs When System Behavior In This Mode You Can
Normal No alarm,
supervisories or
trouble condition
exists and Menus
are not in use.
SYSTEM POWER LED is on. The All
Systems Normal display indicates that the
system is in normal mode. The current date
and time display on the last line of the LCD.
Enter the appropriate code, or rotate the key to
activate the Main Menu.
Alarm
A smoke detector
goes into alarm
or a pull station is
activated.
CO detector goes
into alarm.
If more than 3
categories are
active at a single
time, the screen
will display as
shown.
The communicator seizes control of the
phone line and calls the central station.
The on-board annunciator sounds a loud,
steady beep (any notification devices
attached to the system will also sound).
GENERAL ALARM LED flashes.

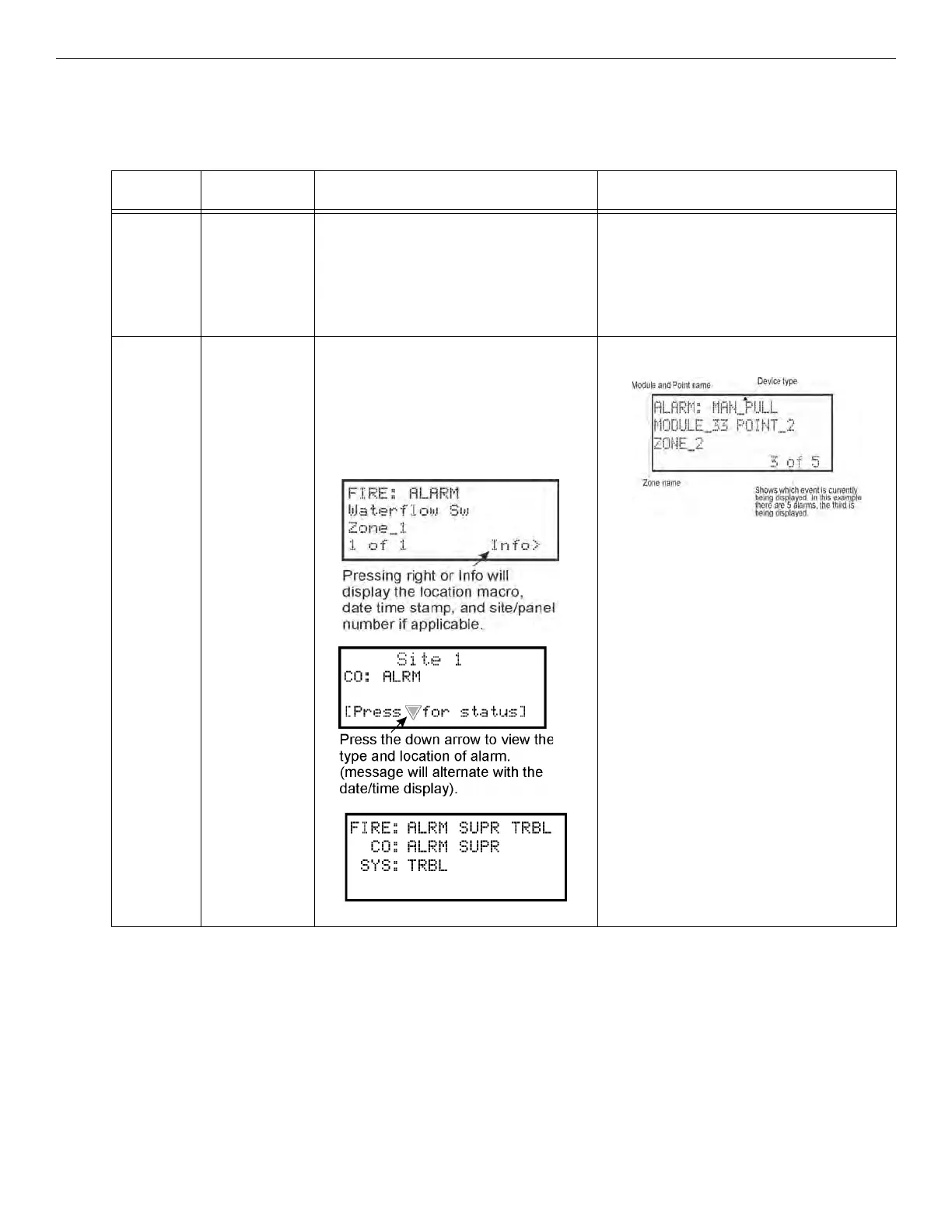

The LCD displays a screen similar to this
one.
Press the down arrow to view the alarm. A
screen similar to this one displays.
Press SILENCE and enter an Access Code (or
activate the key) to silence the annunciator (and
any notification devices attached to the system).
When the alarm condition clears, press RESET
and enter a code (or activate the key) to restore
the panel to normal.
Table 10.3 Panel Mode Operation Conditions
