24 IFP-75/IFP-75HV Installation/Operation Manual — P/N LS10147-001SK-E:D 06/25/2021
Section 4: Control Panel Installation
4.1 Mounting the Control Panel Cabinet
Read the Environmental Specifications in Section 3.2 before mounting the IFP-75 panel.
The IFP-75 cabinet base dimensions are: 12.531” W x 14.875” H.
The IFP-75 panel should be located within a secured area, where it is accessible to the main drop wiring runs and where it can be easily
tested and serviced. End-users responsible for maintaining the panel should be able to hear alarms and troubles. When you select a location,
keep in mind that the panel itself is the main source of alarm and trouble annunciation.
When you mount the cabinet on the interior walls, use the appropriate screw anchors in plaster. When you mount the cabinet on concrete,
especially when moisture is expected, attach a piece of ¾” plywood to the concrete surface and then attach the IFP-75 to the plywood. Also
mount any other desired components to the plywood.
DO NOT flush-mount the IFP-75cabinet in a wall designated as a fire-break.

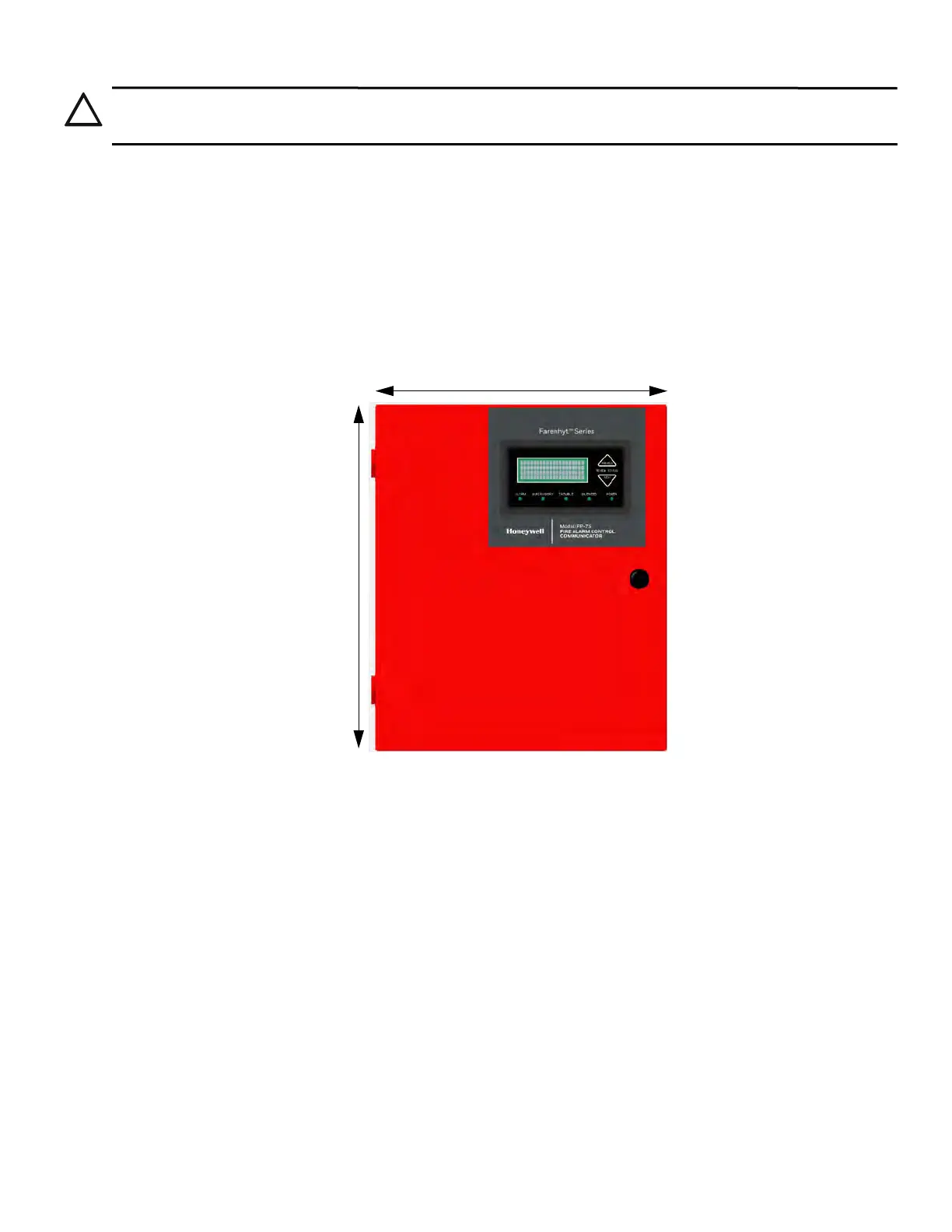

Figure 4.1 IFP-75 Cabinet
4.1.1 Preventing Water Damage
Water damage to the Fire System can be caused by moisture entering the cabinet through the conduits. Conduits that are installed to enter the
top of the cabinet are most likely to cause water problems. Installers should take reasonable precautions to prevent water from entering the
cabinet. Water damage is not covered under warranty.
4.1.2 Removing the IFP-75 Assembly from the Housing
If it is necessary to remove the control panel assembly from the cabinet for repair, remove the screws that hold the control panel in to the cab-
inet. Do not attempt to disassemble the circuit boards.
CAUTION: DISCONNECT POWER
TO AVOID THE RISK OF ELECTRICAL SHOCK AND DAMAGE TO THE UNIT, POWER SHOULD BE OFF AT THE
CONTROL PANEL WHILE INSTALLING OR SERVICING.
