Programming Overview Programming Using an Annunciator
8.4.1 Entering / Exiting the Program Menu
To enter the Program Mode:
1. Enter the Installer Code if requested.
2. Select 7 for Program Menu. The Menus described in Section 8 of this manual will display. Section 8.5 of this manual is a quick
reference listing of all programmable options and the JumpStart Auto-Programming defaults.
To Exit Program Mode:
When you completed working with the Menus, press the left arrow button several times until you are exited from Programming mode. Two
prompts will display.
• The first prompt appears to confirm you intended to leave the Program Menu (select Yes or No as appropriate).
• The second prompt appears to confirm all changes. If you select No, any changes you made since you entered the Program Menu will
have no effect.
8.4.2 Moving through the Menus

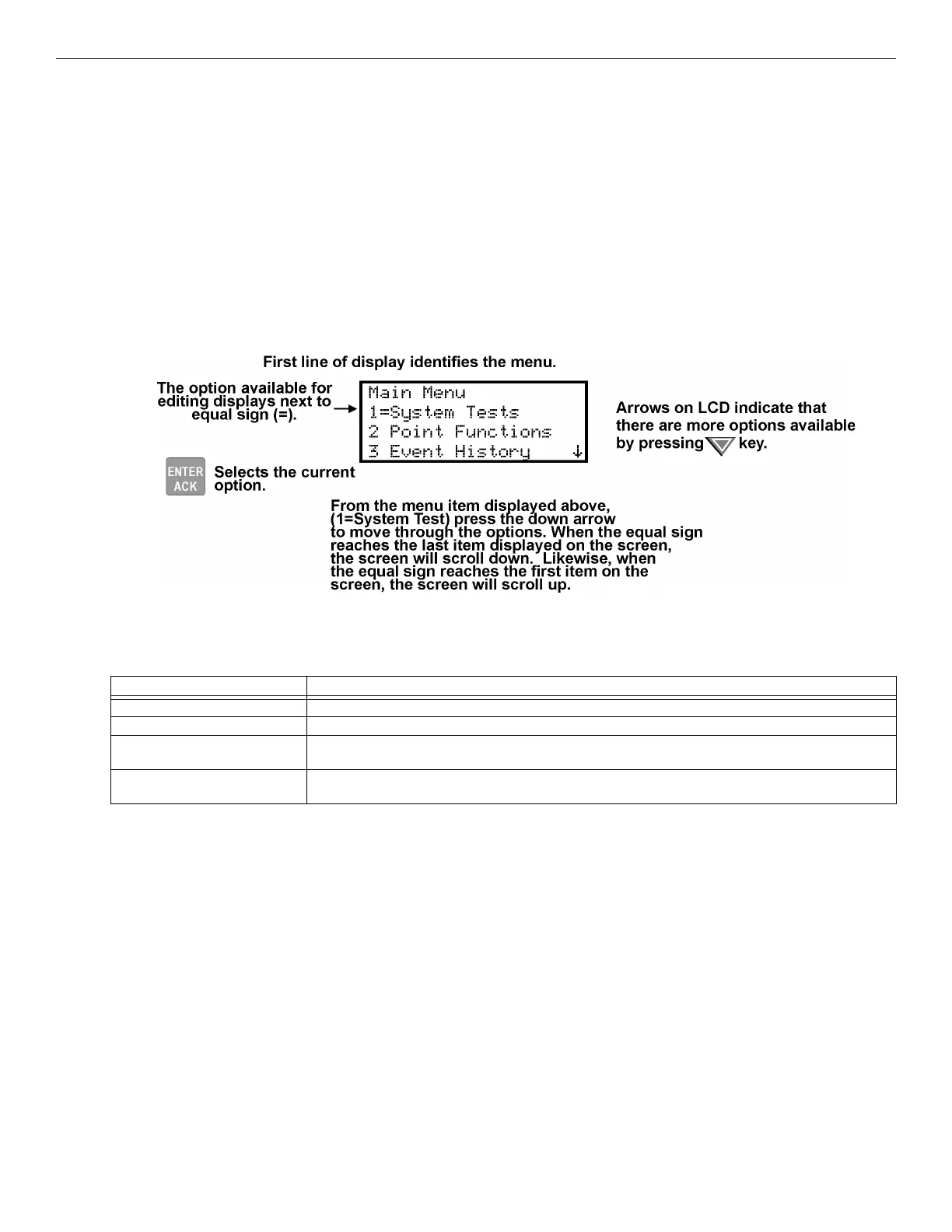

Figure 8.7 shows how to move through Menu screens, using the System Tests screen as an example.
Figure 8.7 Moving through Program Menu
8.4.3 Selecting Options and Entering Data
There are several ways to make programming selections using the control panel depending on which screen you are currently using. The
chart below is a generic explanation.
To Press
Select from a Menu. Enter the number of the option.
Enter the numeric data. Press the appropriate number on the annunciator.
Enter the text (alphanumeric data). Use the Up and Down arrow keys to enter each character individually until the one you want to select
displays. Then, press the right arrow to select the character.
Select from a scrolling list. Use the up and down arrow to move through a list of available options. When the option you want to select
is displayed, press ENTER.
Table 8.3 Selecting the Options
