38 IFP-75/IFP-75HV Installation/Operation Manual — P/N LS10147-001SK-E:D 06/25/2021
Control Panel Installation RA-2000 Remote Annunciator Installation
Surface Mounting
The RA-1000 can be mounted directly to a surface or it can be attached to a single, double, or four-square electrical box. The Model RA-
1000TG/ Trim Ring Kit is available for use when surface mounting.
1. Drill holes in the surface to match the screw holes on the back box.
2. Fit the trim ring over the back box.
3. Attach the back box to the surface using screws provided.
4. After you complete the annunciator wiring to the panel (described in Section 4), replace the electronic assembly in the back box. Place
the bezel over the back box and tighten the set screws on the bezel.
.

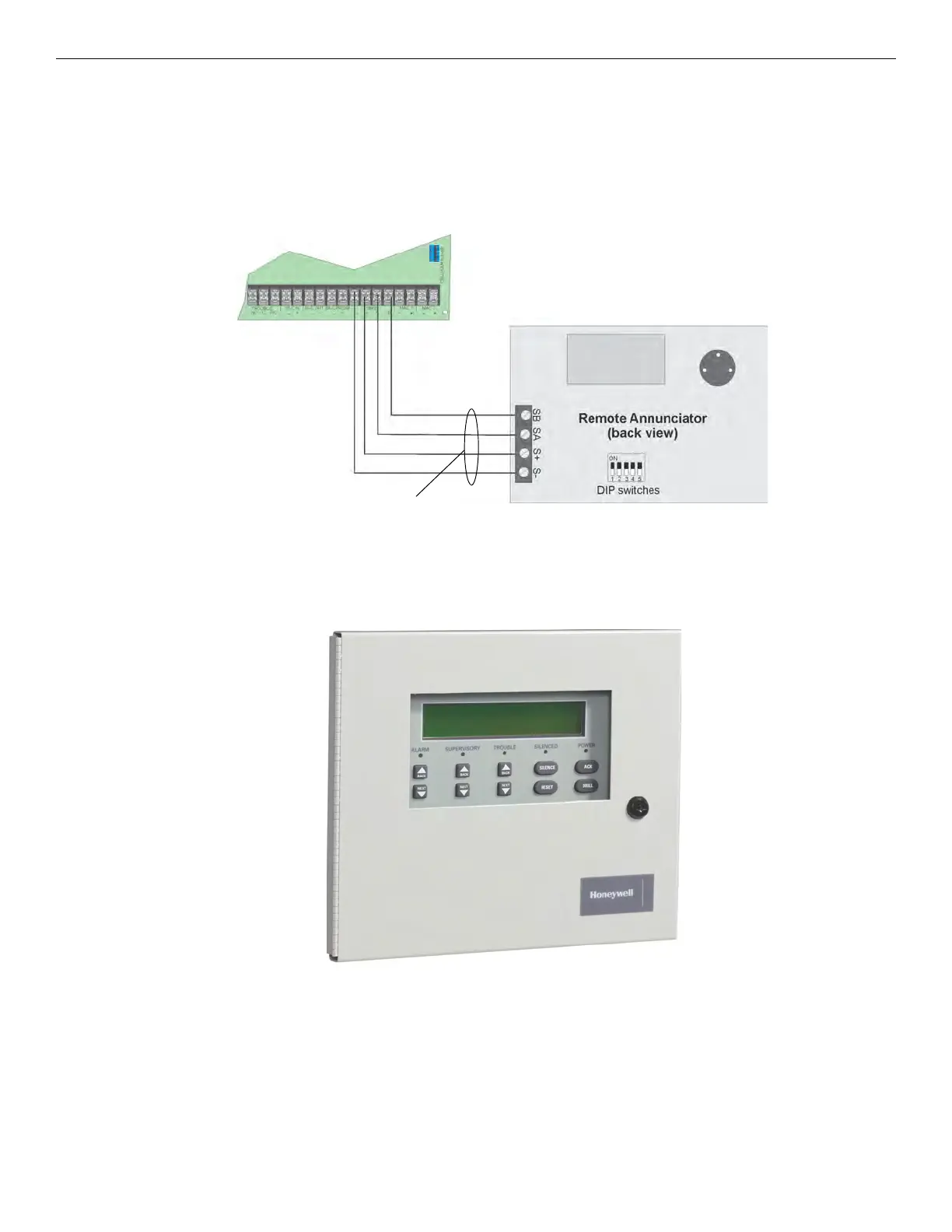

Figure 4.25 Model RA-1000 Connection to the Panel
4.7 RA-2000 Remote Annunciator Installation
The optional Model RA-2000 Remote Annunciator, shown in Figure 4.27. The RA-2000 can be surface or flush mounted. . It is available in
gray color as RA-2000 GRAY.
Figure 4.26 Model RA-2000GRAY Remote Annunciator, Front View
The RA-2000 installation involves the following steps:
1. Make sure the power is off at the panel.
2. Mount the RA-2000 in the desired location (see Section 4.7.1).
3. Connect the RA-2000 to the panel (see Mounting the RA-2000Section 4.7.1).
4. Use the DIP switches on the back of the RA-2000 to assign an SBUS ID# to the RA-2000 (see Section 4.11.1).
5. The RA-2000 module must be added to the System through programming. JumpStart Auto-Programming will add the module
automatically (see Section 8.1).
