IFP-75/IFP-75HV Installation/Operation Manual — P/N LS10147-001SK-E:D 06/25/2021 73
Wiring the WIDP-WGI IDP, SK, SD and SWIFT SLC Device Installation

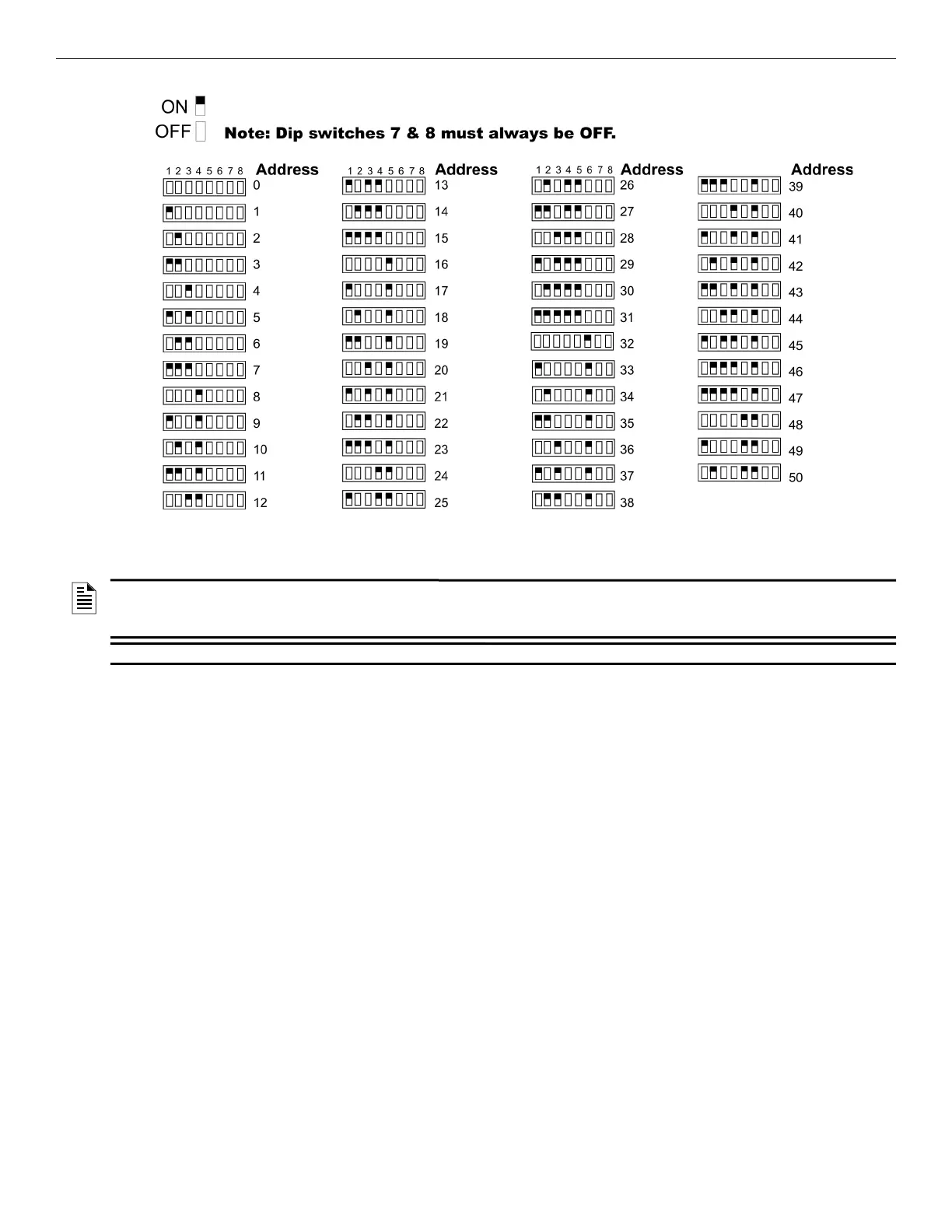

Figure 7.7 SLC Device Addressing Using DIP Switches
7.10 Wiring the WIDP-WGI
For more information regarding Gateway wiring instructions, see the SWIFT Manual P/N: LS10036-000FH-E.
7.10.1 SLC Connections
The WIDP-WGI Wireless Gateway acts as a bridge between a group of wireless fire devices and an SLC loop on the IFP-75. It is powered by
the SLC loops or by a regulated, external 24 VDC UL listed power supply. For details about wireless devices, system setup, and operation,
see the SWIFT
Smart Wireless Integrated Fire Technology Instruction Manual P/N, P/N: LS10036-000FH-E.
NOTE 1: The WIDP-WGI, is part of the wireless network, and is tested for compliance with the Federal Communications Commission (FCC)
requirements of the United States Government. It has not been evaluated for use outside the USA. Use of this System outside the USA is
subject to local laws and rules to which this product may not conform. It is the sole responsibility of the user to determine if this product may be
legally used outside the USA.
NOTE 2: It is recommended to use the same wire gauge is there are multiple connections to the same terminal.
