54 IFP-75/IFP-75HV Installation/Operation Manual — P/N LS10147-001SK-E:D 06/25/2021
Control Panel Installation Remote Station Applications
4.15.5 Transmitter Activated by Dry Contacts
This section describes the connection of a UL 864 listed remote station transmitter to the FACP dry contacts. The FACP contacts must be
supervised by the Remote Station Transmitter Module using end-of-line resistors (ELRs) with a value determined by the transmitter manu-
facturer. Power is also provided by the Remote Station Transmitter Manufacturer. Refer to the Remote Station Transmitter Manufacturer’s
manual for details.

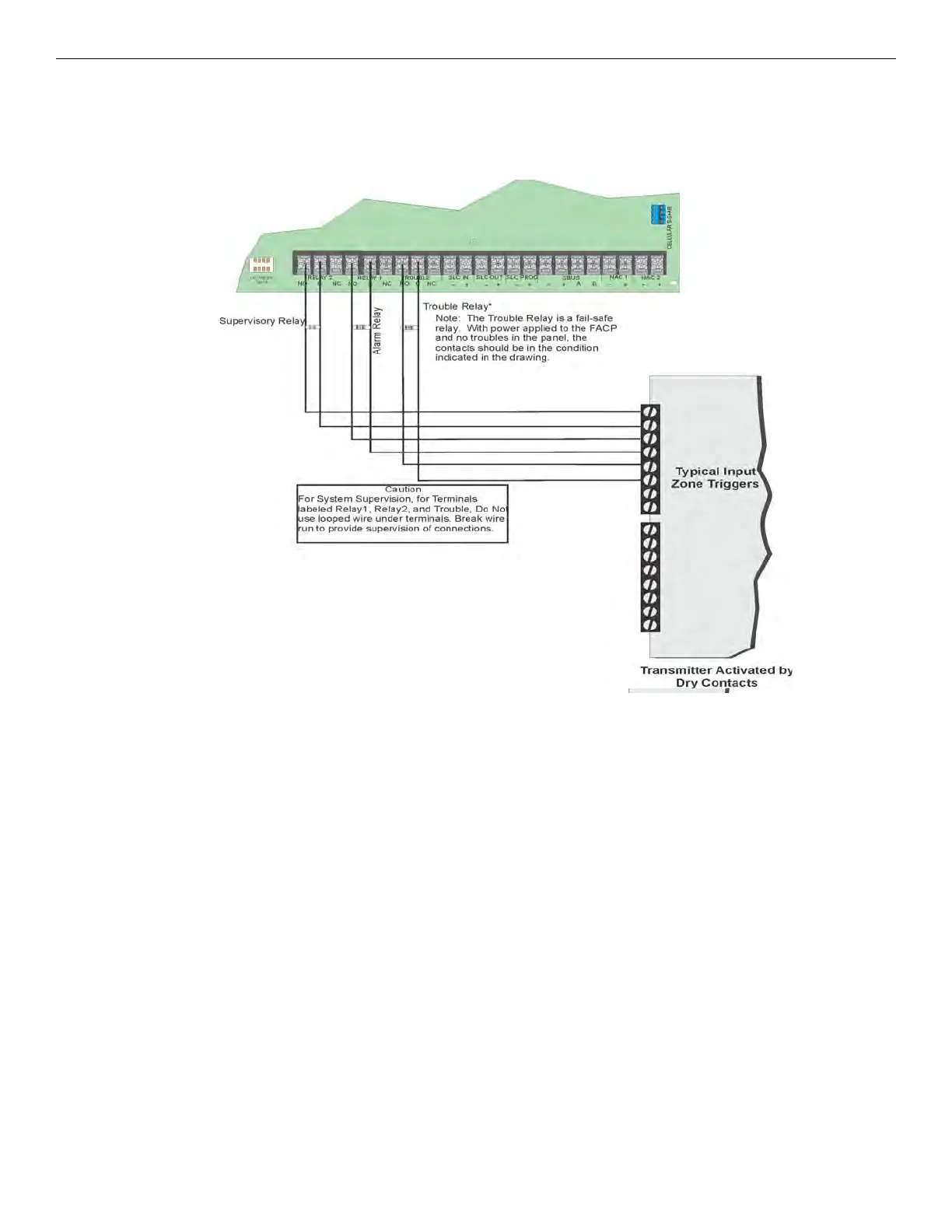

Figure 4.54
