26 IFP-75/IFP-75HV Installation/Operation Manual — P/N LS10147-001SK-E:D 06/25/2021
Control Panel Installation AC Connection
4.2 AC Connection
At installation, connect the AC terminals to the power source as shown in Figure 4.3. It may be necessary for a professional electrician to
make this connection.

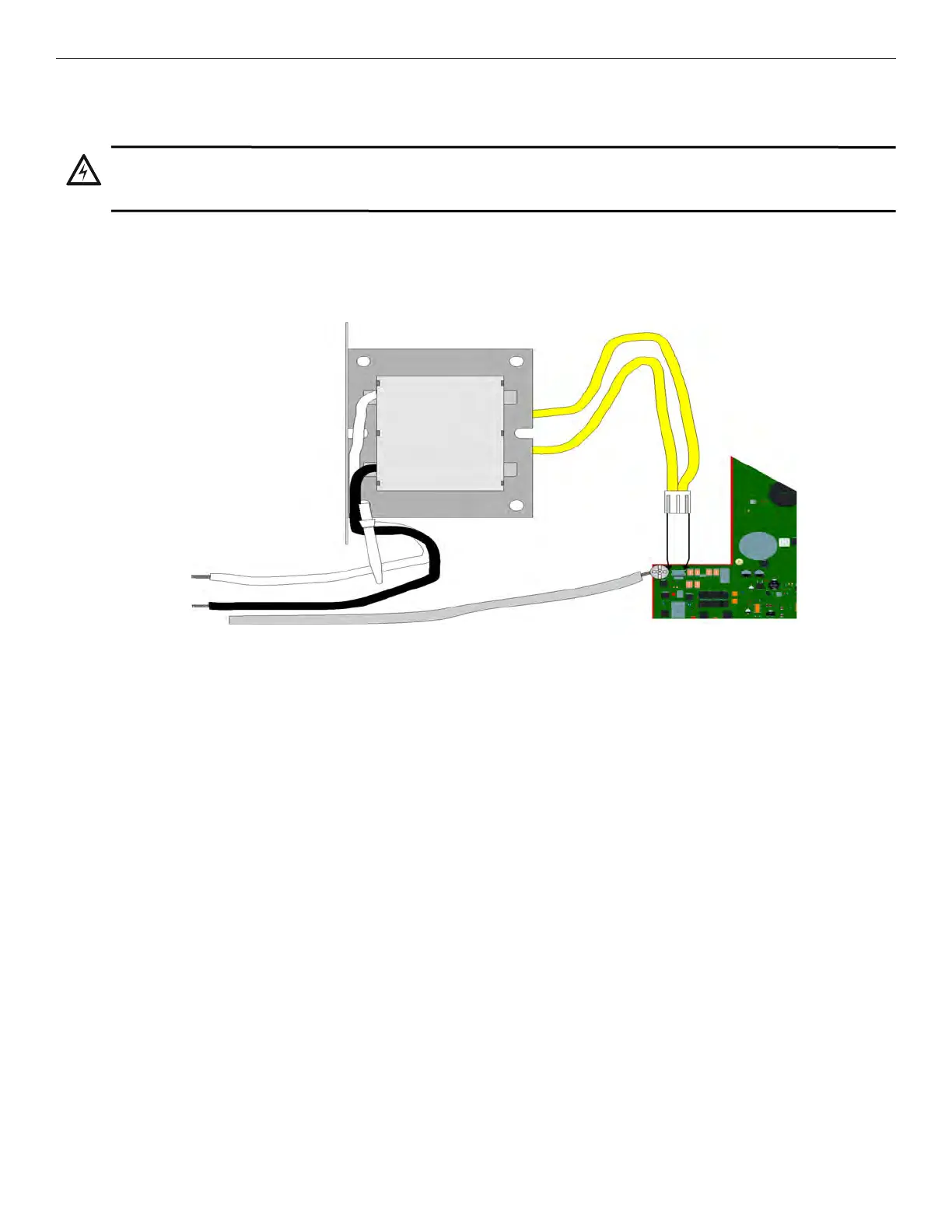

Figure 4.3 120/240V Power Connection
!
WARNING: RISK OF ELECTRICAL SHOCK AND EQUIPMENT DAMAGE
SEVERAL DIFFERENT SOURCES OF POWER CAN BE CONNECTED TO THIS PANEL. DISCONNECT ALL SOURCES OF
POWER BEFORE SERVICING. THE PANEL AND ASSOCIATED EQUIPMENT MAY BE DAMAGED BY REMOVING
AND/OR INSERTING CARDS, MODULES OR INTERCONNECTING CABLES WHILE THIS UNIT IS ENERGIZED.
To AC
ground
supervised
PRI: 120V, 60Hz
240V, 50/60Hz,
BLK-WHT
SEC: 36V, 85VA
YEL-YEL
120/240V
AC power for the IFP-75 is rated at 120VAC, 60Hz, 1.5A.
AC power for the IFP-75HV is rated at 240VAC, 50/60Hz, 1A.
