Sync Network Options Network Management
Communicator Reporting Table
The Communicator Report Table specifies the Event Reporting for each panel on the network. Each row in the table specifies the following.
Also, associated with the receivers are the Account Number and the Daily Test Option. The table format can have up to 99 rows.
1. From the Main Menu, do the following.
2. Select 6 to access the Network Programming.
3. Press 6 to enter the Communicator Options Menu.
4. Select 4 to access the Communicator Reporting Table.
5. Press * to add rows, Press ENTER to edit the data.

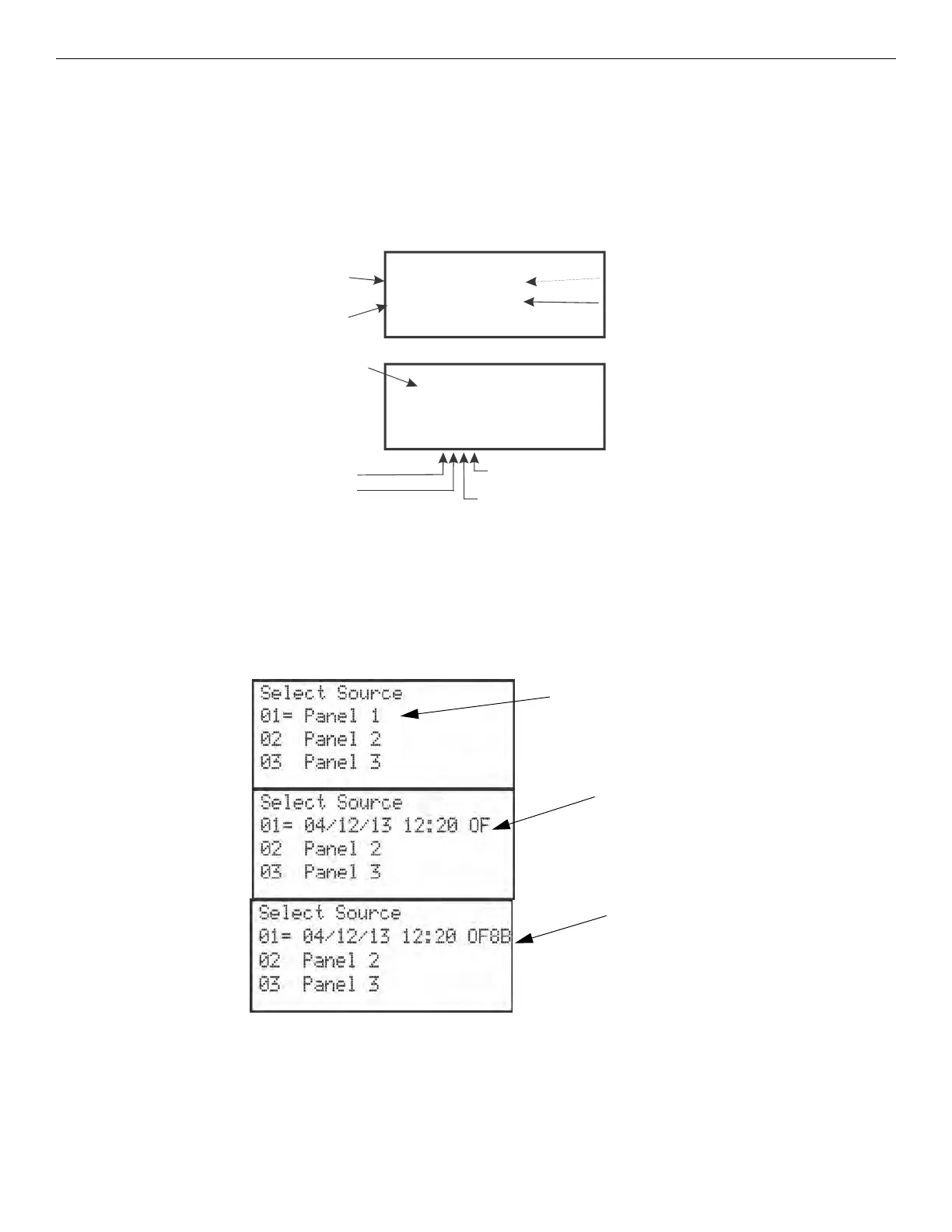

Figure 6.1 Communicator Reporting
6.3 Sync Network Options
After you make changes to network programming, if the distribution of network options fail, the System will report a trouble of network
options out of sync. Use this Menu to redistribute the changed options to the rest of the network. The user will be required to choose a panel
from which to source the options. Scroll down through the informational message and press ENTER to view the Select Source screen.
1. Enter the Installer Code. The panel will automatically access the Main Menu.
2. Select 6 to access the Network Programming Menu.
3. Select 8 to access the Sync Network Options.
4. Select from which panel to source the options.
Figure 6.2 SYNC Network Options
• panel • event types to report • primary and backup receiver numbers • report by point or by zone
Panel#
0=Delete
Primary Receiver
Number
Test Primary Account
Secondary Receiver
Number
Test Secondary Account
Report Alarms
Report Supervisory
Report Troubles
Report Event by Point
Y=Point/N=Zone
Panel: 03 YYYY
R009:321456 N
R013:987456 N
<Help Text>
P#ASTP Prit Sect
01=03YYYY 009N 013N
02=02NNYN 015N 014Y
* = Add Row
Line 1 scrolls to show the date
With the line selected
Scroll down to show checksum
