Appendix B: Editing Text Using the Built-In Programmer
This section contains the tables of programmable characters that may be used for the device, module, site, template, group, and zone names.
T9 style editing is used.
B.1 Characters Used for Editing Text
Table B.1 lists the available characters and their associated numeric designator. When programming, do the following.
1. Use the Up or Down arrow key to scroll to the mode you want to select.
2. Press the number shown in Table B.1 until the character you want to select is shown.
3. Press the left and right arrow to move the cursor, and press ENTER to accept.
B.2 Example Name Edit
1. Press the up or down arrow to select the upper case letters mode, Press 2 until “F” appears.
2. Press the up or down arrow to change the mode to lower case letters, Press 3 until “i” appears.
3. Press 6 until “r” appears.
4. Press 2 until “e” appears.
5. Press 0 to space, then continue to the next word using the same process.
6. Press ENTER to accept.

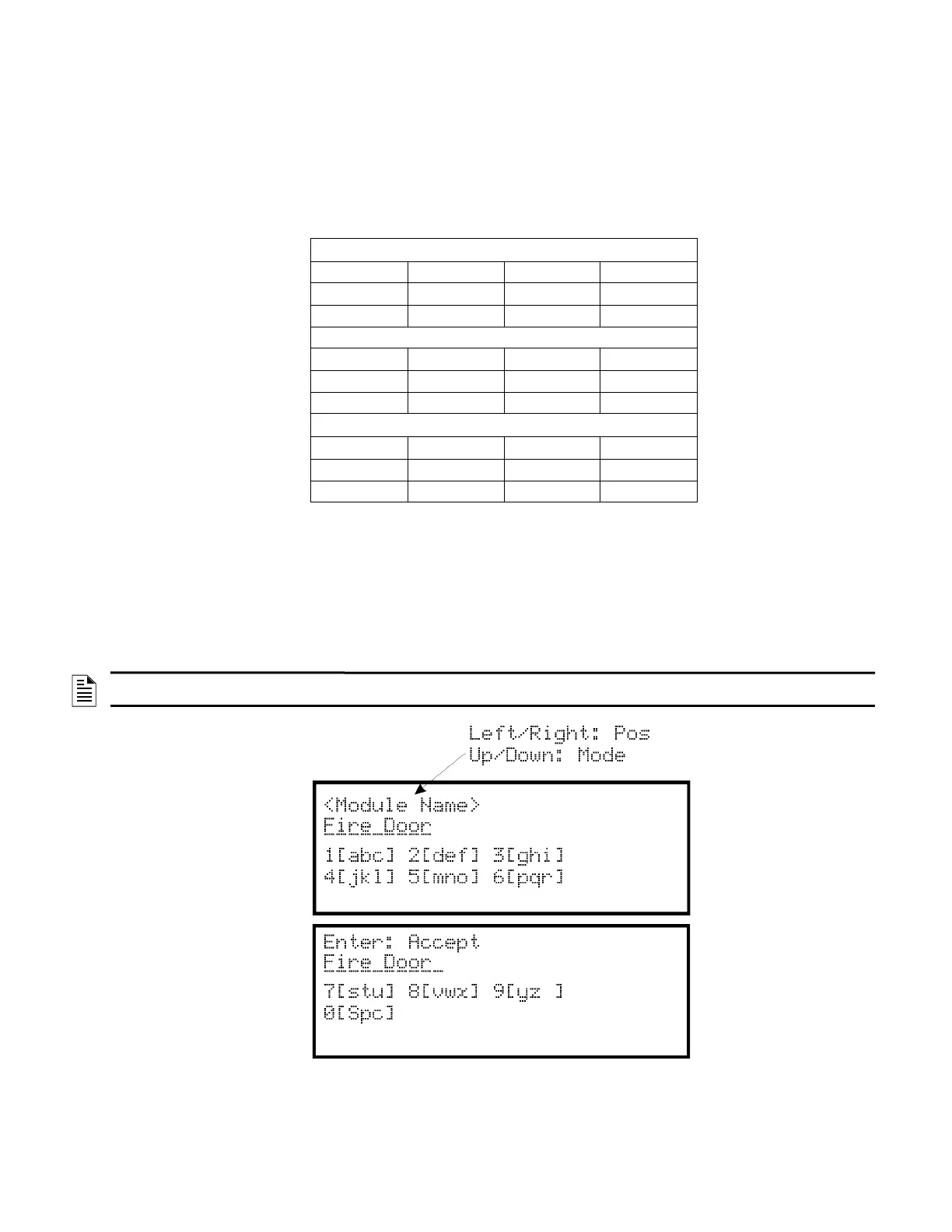

Figure B.1 Edit Name Example
Lower Case Letters
abc1 def2 ghi3 jkl4
mno5 pqr6 stu7 vwx8
yz9 Spc0
Upper Case Letters
ABC1 DEF2 GHI3 JKL4
MNO5 PQR6 STU7 VWX8
YZ9 Spc0
Numbers and Special Characters
1
[ ]1 2 ( )2 3 . ,3 4 : ;4
5 ’ "5 6 ? !6 7 ‘ / 7 8 – +8
9 = -9 0 0 * & @ * # $ #
Table B.1 Character Table
NOTE: After three seconds of no change, the System will automatically accept the letter. Also, if you press the next number, the System
will automatically accept previous choice.
