88 IFP-75/IFP-75HV Installation/Operation Manual — P/N LS10147-001SK-E:D 06/25/2021
Section 9: Programming
This Section of the manual describes how to manually program the control panel from the built-in annunciator. Each subsection describes
these Menu options. All options described in this Section can be performed using the HFSS Honeywell Fire Software Suite.
9.1 UL 864 Programming Requirements
9.2 Modules
This Section lists the options available under the Module Option in the Program Menu. The types of modules available for the control panel
are RA-100, RA-1000 or RA-2000 LCD Annunciator, 5824 Serial/Parallel input/output, 5880 LED Input/Output module, 5496 NAC
Expander, RPS-1000 Power supply, SK-NIC Network Interface Card, and 5865 LED Annunciator.
9.2.1 Edit Modules
The features you can edit when this option is selected are the following: Module Name, and Class of Wiring (Class A or Class B). To edit an
existing module, follow these steps:
1. Enter the Installer Code.
2. Select 7 to access the Program Menu.
3. Press 1 to access the Module Menu.
4. Press 1 to edit a module.
5. Use the up or down arrow to select the module you want to edit.
Editing the Module ID
6. Press the up or down arrow key to modify the Module ID.
Naming the Modules
You can assign an English name to a hardware module to easily identify it on a display.
7. To edit a module name, press the up or down arrow to select each character for the modules name (or press the right arrow to bypass the
name edit). Press the right arrow to move to the next character.

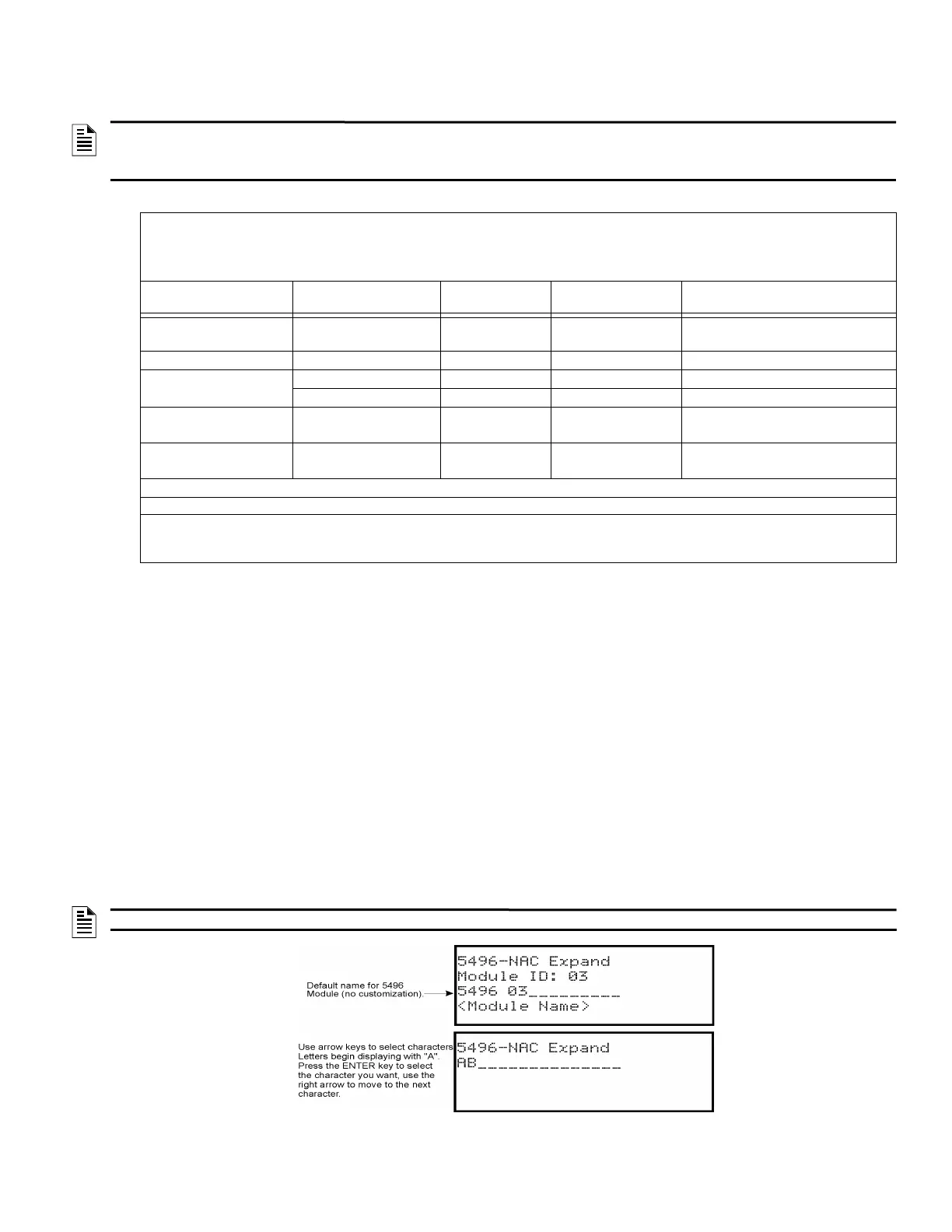

Figure 9.1 Edit Module Name Programming Screen Example
NOTE: Before any customized programming is done, JumpStart Auto-Programming should be run first. After JumpStart is run, thoroughly test
the System. The reason the System should be tested after JumpStart Auto-Programming is because JumpStart automatically programs the
System, searching for and configuring all SLC and SBUS devices it finds. JumpStart allows you to confirm the integrity of the installation prior to
performing any custom programming. After you determine that the hardware is properly installed, custom programming can be performed.
NOTICE TO USERS, INSTALLERS, AUTHORITIES HAVING JURISDICTION, AND OTHER INVOLVED PARTIES:
This product incorporates field programmable software. In order for the product to comply with the requirements in the
Standard for Control Units and Accessories for Fire Alarm Systems, UL 864, certain programming features or options must
be limited to specific values or not used at all as indicated below.
Programming Option Menu Item
Permitted in
UL 864 (Y/N)
Possible Settings
Settings Permitted in
UL 864
Time Options Auto-Resound Yes 4 or 24 hrs 4 hours if you use SWIFT devices
24 hours if you use other devices
Time Options Low AC Report Delay Yes 0–30 hours 1–3
Display Oldest Event Y (Enabled) Yes Yes & No Yes
N (Disabled) No Yes & No No
Alarm Verification
(See Note 1)
Alarm Verification Yes 60-250
(confirmation period)
0-60
Manual Release Switch
(See Note 2)
Manual Release Yes
0-120 Seconds
(delay period)
0-30 Seconds
(delay period)
Notes
Note 1: When the 2-count delay is active, you cannot use the Alarm Verification.
Note 2: The Manual Release Switch shall override any pre-discharge delays resulting in an immediate release or start of
the Manual Release Delay period. The delay period shall be 30 seconds or less from the activation of the switch to the
actuation of the releasing device(s).
Table 9.1 Programming Requirements
NOTE: See Appendix B to edit the Names.
