IFP-75/IFP-75HV Installation/Operation Manual — P/N LS10147-001SK-E:D 06/25/2021 51
Remote Station Applications Control Panel Installation
4.15.2 City Box Connection Using the 5220 Module
This section describes how to connect the control panel to a municipal fire alarm box or “city box” as required by NFPA 72 Auxiliary Pro-
tected Fire Alarm Systems for fire alarm service. The City (Master) Box is an enclosure that contains a manually operated transmitter used to
send an alarm to the Municipal Communication Center which houses the central operating part of the Fire Alarm System.
The maximum coil and wire resistance (combined) must not exceed 30 ohms.
To install the 5220 for city box connection, do the following steps:
1. Use one of the knockouts on the right side of the control panel to connect the 5220 using a short piece of conduit (it must not exceed 20
feet in length).
2. Wire the 5220 to the control panel as shown in Figure 4.50. This drawing also shows how to connect the city box coil to terminals 3 and
4 on the 5220. Do not install an EOL resistor in the terminals of the NAC circuit used for this application.
3. Connect the earth ground wire to the 5220 chassis with the mounting screw.
4. Program the NAC circuit used as a continuous and non-silencing. Refer to Section 8.5 for Point Programming, refer to Section 8.4 for
Group Settings, and refer to Section 8.3 for Zone Settings and Mapping.
It is not possible to reset the remote indication until you clear the condition and reset the control panel.

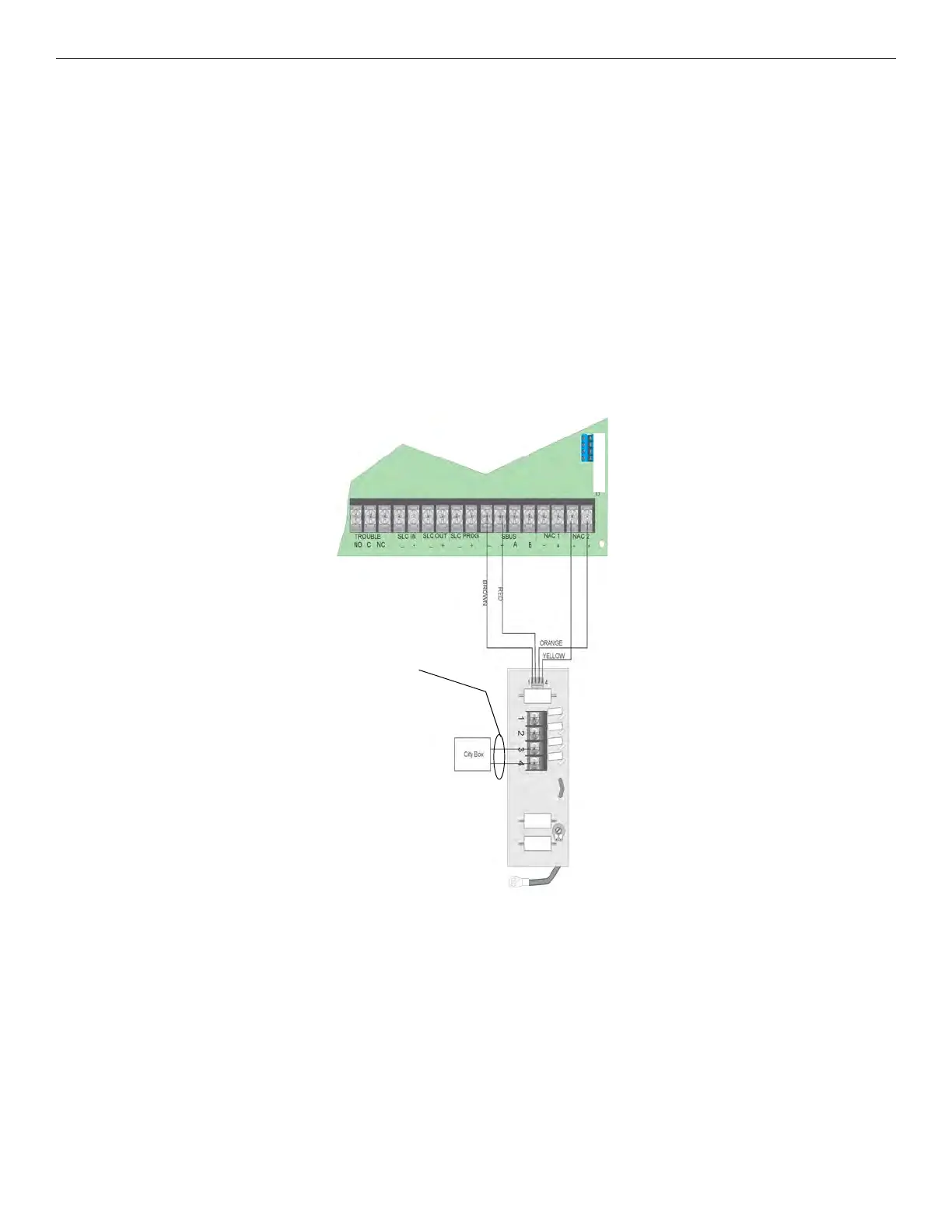

Figure 4.50 City Box Connection
City Box Standby Current: Notification supervision current counted for in the control panel draw.
Alarm Current: 1Amp for 1 second
Max Voltage: 27.4VDC
Non-Supervised
Non-Power Limited
Note:
NAC Circuit 2 Used
as an Example.
Either NAC Circuit Can
Be Used.
