5824 Serial/Parallel Printer Interface Module Installation Control Panel Installation
4.7.2 RA-2000 Connection to the Panel

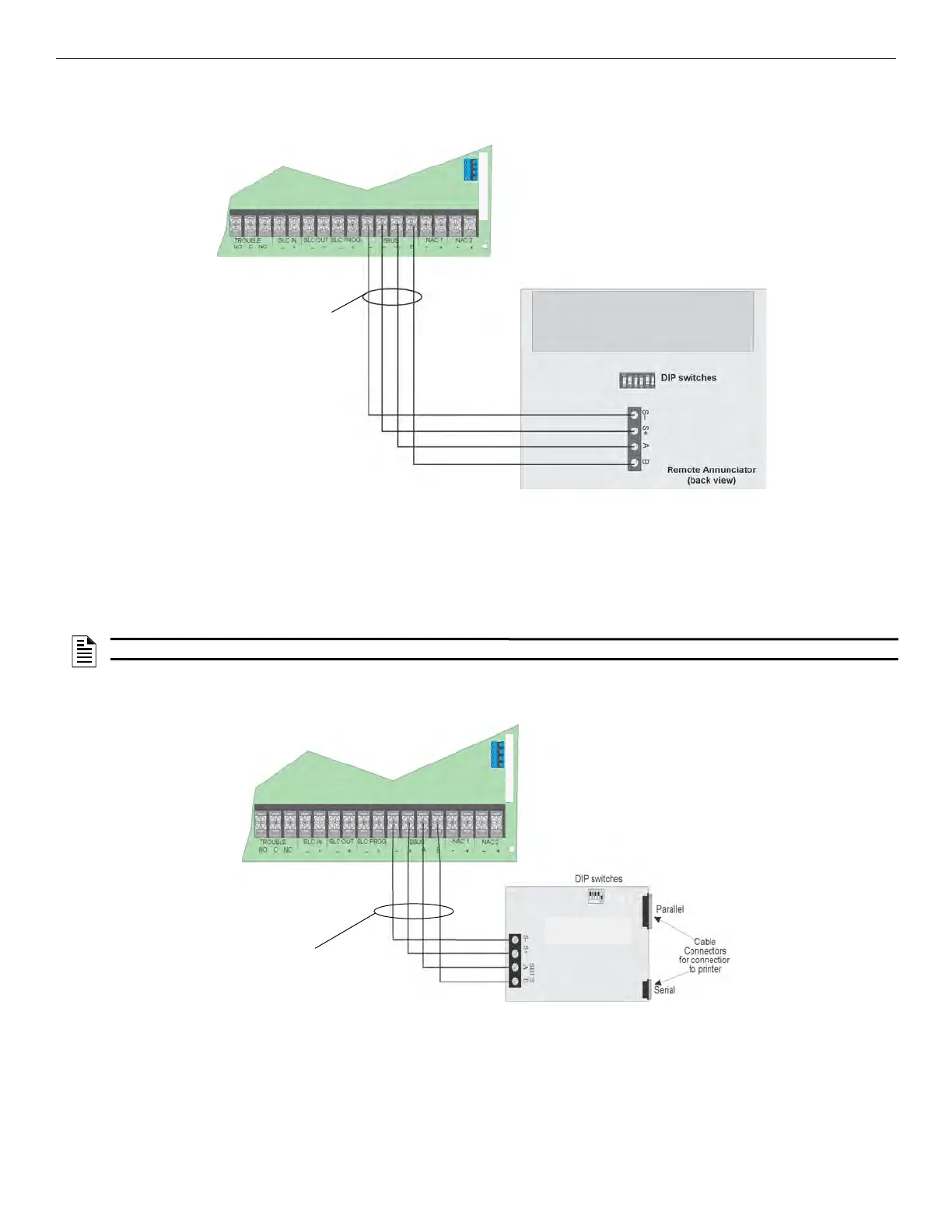

Connect the RA-2000 to the panel as shown in Figure 4.32.
Figure 4.32 Model RA-2000 Connection to the Panel
4.8 5824 Serial/Parallel Printer Interface Module Installation
The 5824 Serial/Parallel Printer Interface Module allows you to connect a printer to the panel. Printing is available for real-time events,
detector status and event history.
The 5824 installation involves the following steps.
1. Make sure the power is off at the panel.
2. Connect the 5824 to the panel as shown inFigure 4.33 ..
3. Use the DIP switches on the back of the 5824 board to assign an ID# to the 5824 (see Section 4.11.1).
4. Configure the 5824 device through programming. See Section 4.8.1.
5. Connect a printer to the 5824 as shown in Figure 4.33.
Figure 4.33 5824 Connection to the Panel
4.8.1 Selecting 5824 Options
Configuring the 5824 includes the following steps.
• Add the module to the System. JumpStart will add the module automatically (see Section 8.1). You can also add it manually (see
Section 8.2.2).
• Select a name, if desired.
• Select options for the printer and the output port. See below.
supervised
power-limited
cellular S-
NOTE: Use four 5824s per the panel maximum.
supervised
power-limited
Model 5824
Board
cellular S-
To Next Page
