Monitoring and Operating the Controller
4/07 UDC2500 Universal Digital Controller Product Manual 121
500
400
200
300
°
F
Time/Hours
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17
SEG 2
SEG 3
SEG 4
SEG 5
SEG 6
SEG 7
SEG 8
SEG 9
SG 10
SG 11
SG 12
SEG 1
F
20765
Setpoint

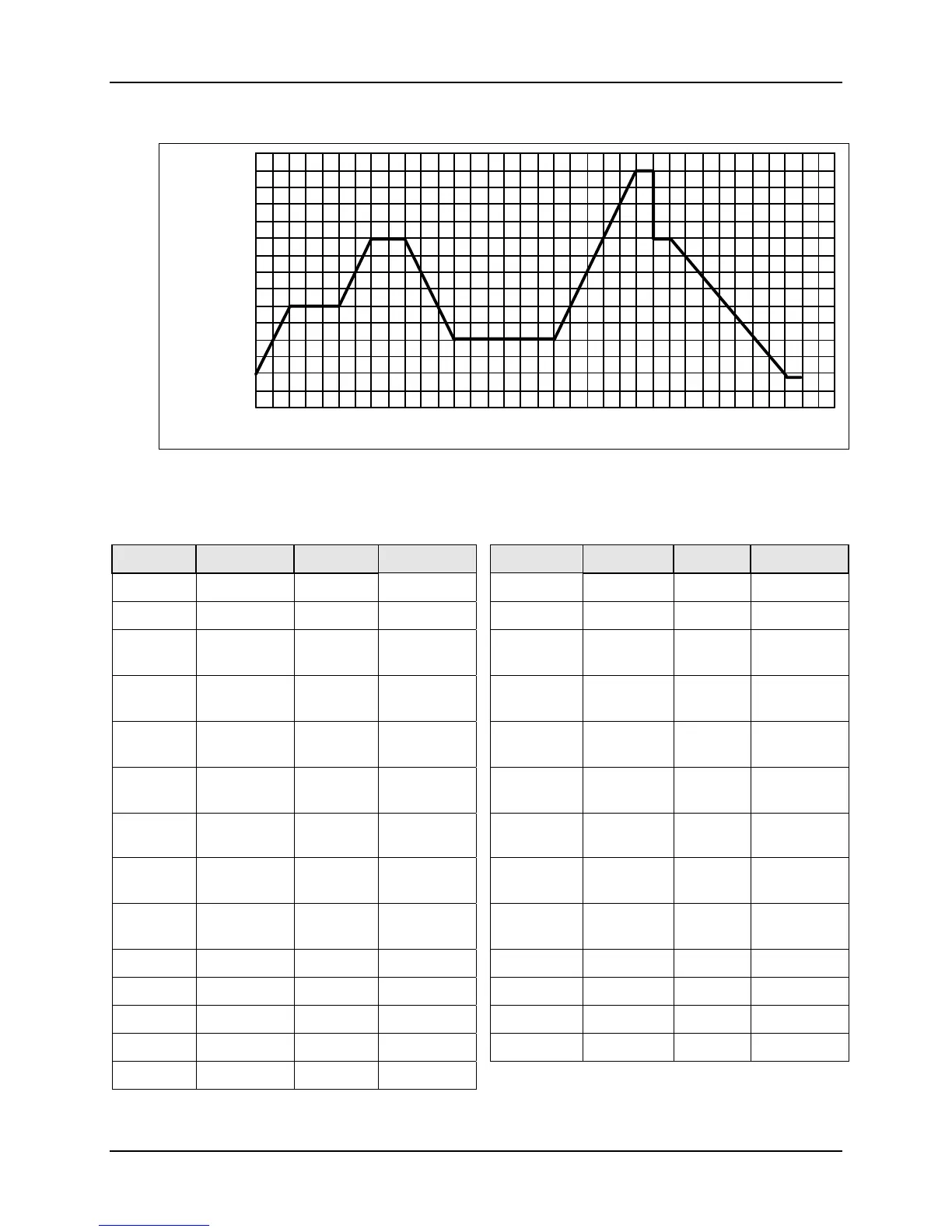

Figure 4-3 Ramp/Soak Profile Example
Ramp/Soak Profile Example
Prompt Function Segment Value Prompt Function Segment Value
STRSEG
Start Seg. 1
SG4 TI
Soak Time 4 1 hr.
ENDSEG
End Seg. 12
SG5 RP
Ramp Time 5 1 hr.:30 min.
RP UNIT
Engr. Unit for
Ramp
TIME
SG6 SP
Soak SP 6 250
PG END
Controller
Status
LAST SP
SG6 TI
Soak Time 6 3 hr.:0 min.
STATE
Controller
State at end
HOLD
SG7 RP
Ramp Time 7 2 hr.:30 min.
TO BEGIN
Reset SP
Program
DIS
SG8 SP
Soak SP 8 500
PVSTRT Program starts
at PV value
DIS
SG8 TI
Soak Time 8 0 hr.:30 min.
RECYCL
Number of
Recycles
2
SG9 RP
Ramp Time 9 0
SOKDEV
Deviation
Value
0
SG10 SP
Soak SP 10 400
SG1 RP
Ramp Time 1 1 hr.
SG10 TI
Soak Time 10 0 hr.:30 min.
SG2 SP
Soak SP 2 300
SG11 RP
Ramp Time 11 3 hr.:30 min.
SG2 TI
Soak Time 2 1 hr.:30 min.
SG12 SP
Soak SP 12 200
SG3 RP
Ramp Time 3 1 hr.
SG12TI
Soak Time 12 0 hr.:30 min.
SG4 SP
Soak SP 4 400

Honeywell UDC2500 Specifications

General

Type	Universal Digital Controller
Alarm Relays	Up to 2 alarm relays
Communication	RS485 Modbus RTU
Mounting	Panel Mount
Display	Dual 4-digit LED
Input Types	Thermocouple, RTD, mA, V
Control Modes	On/Off, PID
Output Types	Relay, mA, V
Power Supply	100-240 VAC, 24V DC
Dimensions	96x96x132 mm
