4.23 Configuring your Ethernet Connection
Introduction
This controller is shipped from the factory with the address for Infrared (IR)
communications set to 3, the Ethernet IP Address set to 10.0.0.2, the Ethernet Subnet
Mask set to 255.255.255.0 and the Ethernet Default Gateway set to 0.0.0.0. Consult your
Information Technologies (IT) representative as to how these should be configured for
your installation. The MAC address is printed on the product label located on the
instrument’s case.
Only the P.I.E. Tool
®
can be used to configure Ethernet parameters. The figures in this
section show screen-shots from the PC version of the P.I.E. Tool
®
Screens. Pocket PC
Screens are generally similar in format but smaller. The P.I.E. Tool can connect to your
controller via either Ethernet communications port or the Infrared (IR) communications
port.
Configuring the Controller via Infrared Communications
If connecting via IR and assuming that the instrument’s IR address has not been changed
from its factory setting of 3, then configure your Communications Type as Infrared and
your IR address to 3 as shown below in Figure 4-11.

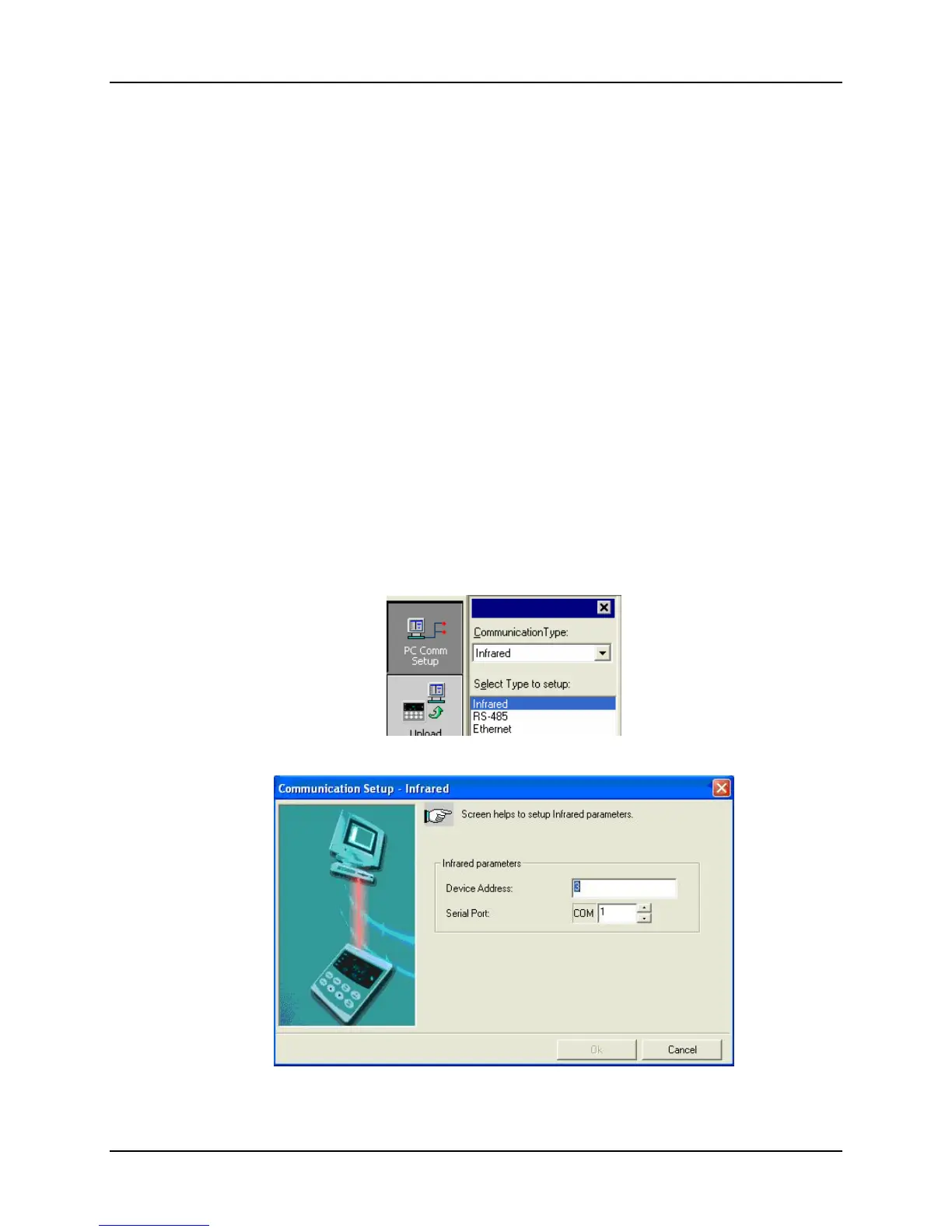

Figure 4-11 IR Communications Address

Honeywell UDC2500 Specifications

General

Type	Universal Digital Controller
Alarm Relays	Up to 2 alarm relays
Communication	RS485 Modbus RTU
Mounting	Panel Mount
Display	Dual 4-digit LED
Input Types	Thermocouple, RTD, mA, V
Control Modes	On/Off, PID
Output Types	Relay, mA, V
Power Supply	100-240 VAC, 24V DC
Dimensions	96x96x132 mm
