Installation

4/07 UDC2500 Universal Digital Controller Product Manual 15

2.5 Mounting

Physical Considerations

The controller can be mounted on either a vertical or tilted panel using the mounting kit

supplied. Adequate access space must be available at the back of the panel for installation

and servicing activities.

• Overall dimensions and panel cutout requirements for mounting the controller are

shown in Figure 2-2.

• The controller’s mounting enclosure must be grounded according to CSA standard

C22.2 No. 0.4 or Factory Mutual Class No. 3820 paragraph 6.1.5.

• The front panel is moisture rated NEMA3 and IP55 rated and can be easily upgraded

to NEMA4X and IP66.

Overall Dimensions

Max. panel thickness

19,1

.75

Panel

Cutout

92,0 + 0,8

-0,00

3,62 + 0,03

-0,00

92,0 + 0,8

-0,00

3,62 + 0,03

-0,00

inches

17,9

0,70

113,1

4,45

90,6

3,57

108,6

4,28

9,0

0,35

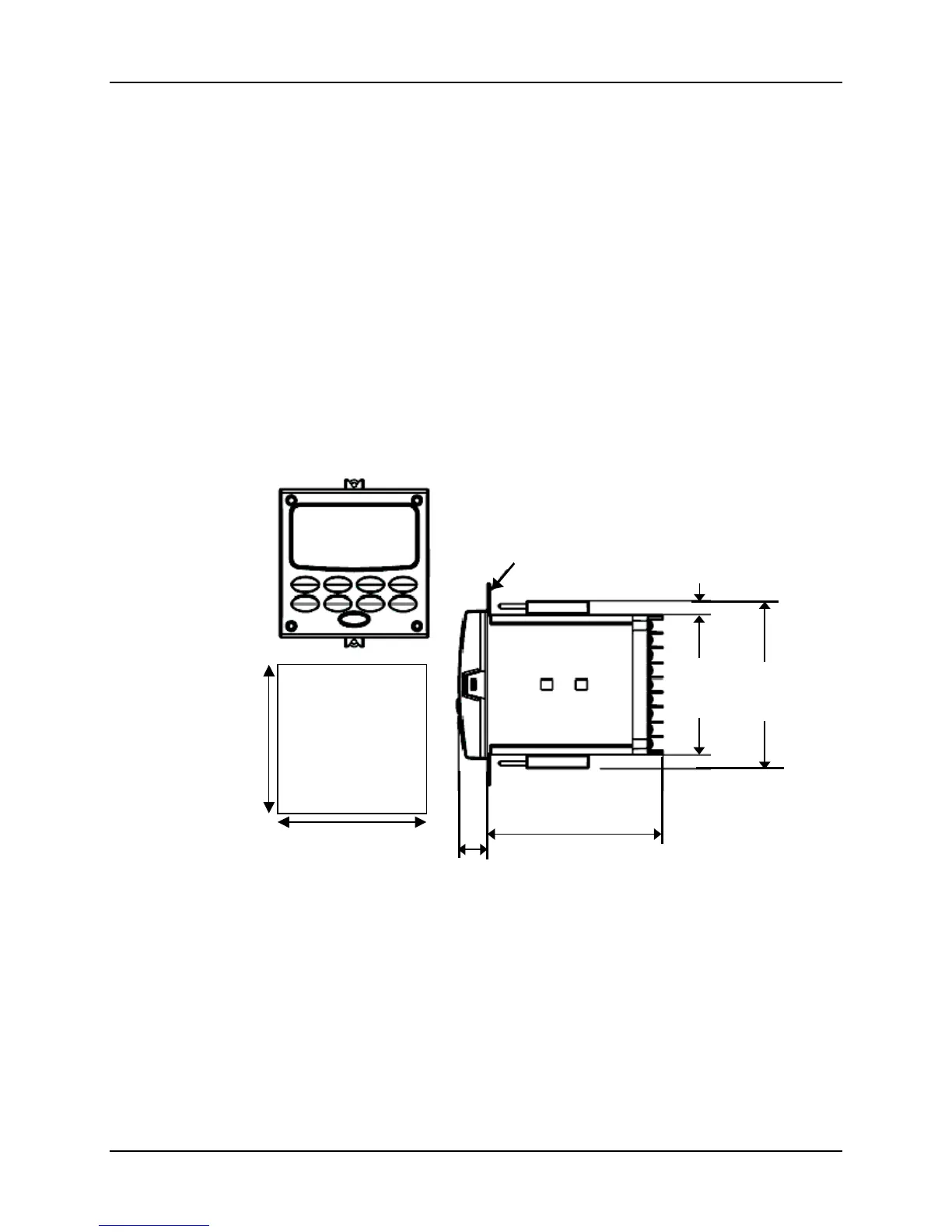

Figure 2-2 Mounting Dimensions (not to scale)
