Introduction
4 UDC2500 Universal Digital Controller Product Manual 4/07
1.3 Process Instrument Explorer Software
Overview
Process Instrument Explorer lets you configure your instrument on a desktop/laptop or
Pocket PC. For details see Process Instrument Explorer manual #51-52-25-131.
Features
• Create configurations with intuitive software program running on either a Pocket
PC, a Desktop or a laptop computer. ·
• Create/edit configurations live, just connect software to controller via comm port.·
• Create/edit configurations offline and download to controller later via comm. port.·
• Port types available on every UDC2500:·
o Infrared
o RS 485
o Ethernet
• Same port types on UDC3200 and UDC3500 allow interconnectivity.
• This software is available in English, Spanish, Italian, German and French.

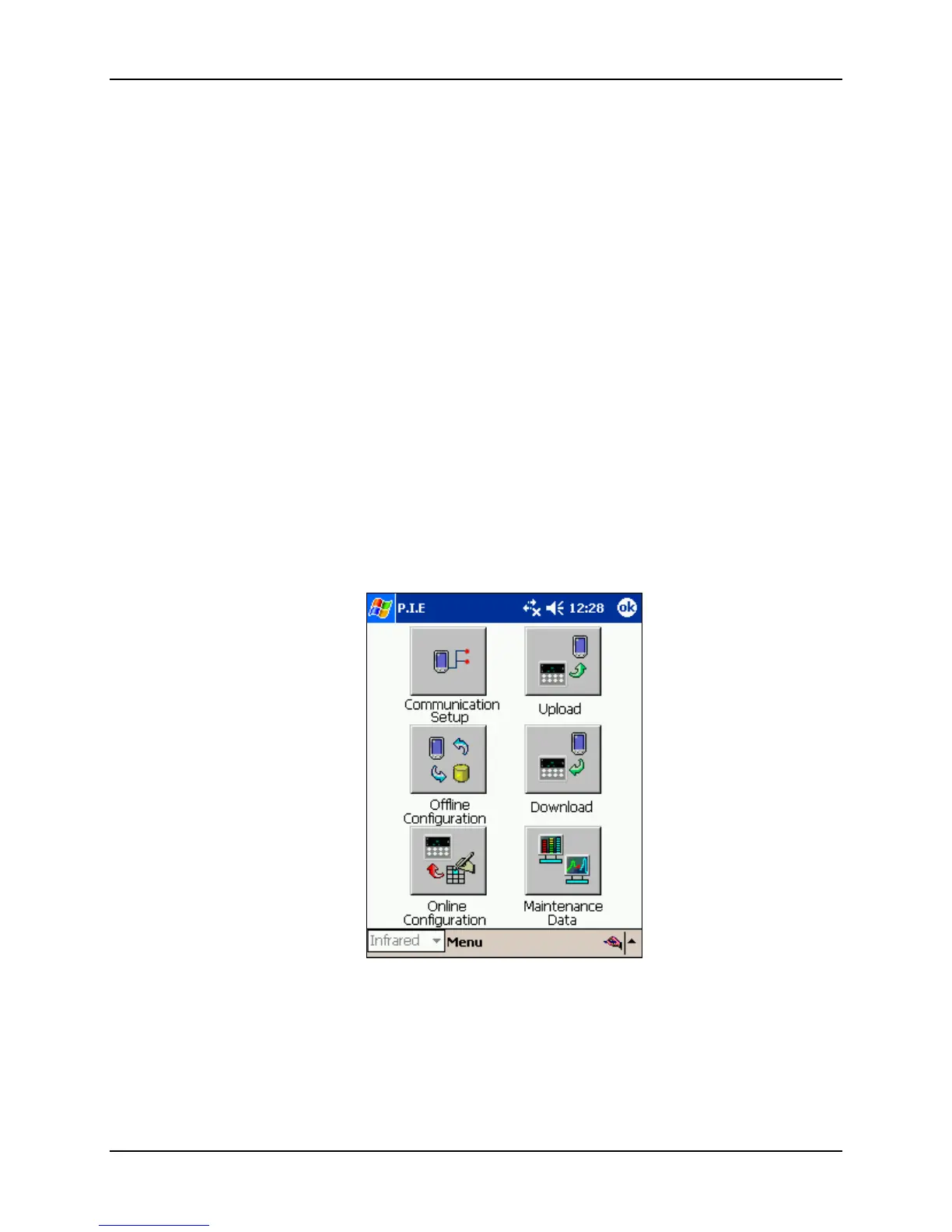

Figure 1-2 Screen capture of Process Instrument Explorer running on a Pocket
PC
Infrared communications
The infrared connection provides a non-intrusive wireless connection with the instrument
and maintains NEMA4X AND IP66 integrity.

Honeywell UDC2500 Specifications

General

Type	Universal Digital Controller
Alarm Relays	Up to 2 alarm relays
Communication	RS485 Modbus RTU
Mounting	Panel Mount
Display	Dual 4-digit LED
Input Types	Thermocouple, RTD, mA, V
Control Modes	On/Off, PID
Output Types	Relay, mA, V
Power Supply	100-240 VAC, 24V DC
Dimensions	96x96x132 mm
