Hardware options installation 41
Installing an SFF HDD assembly

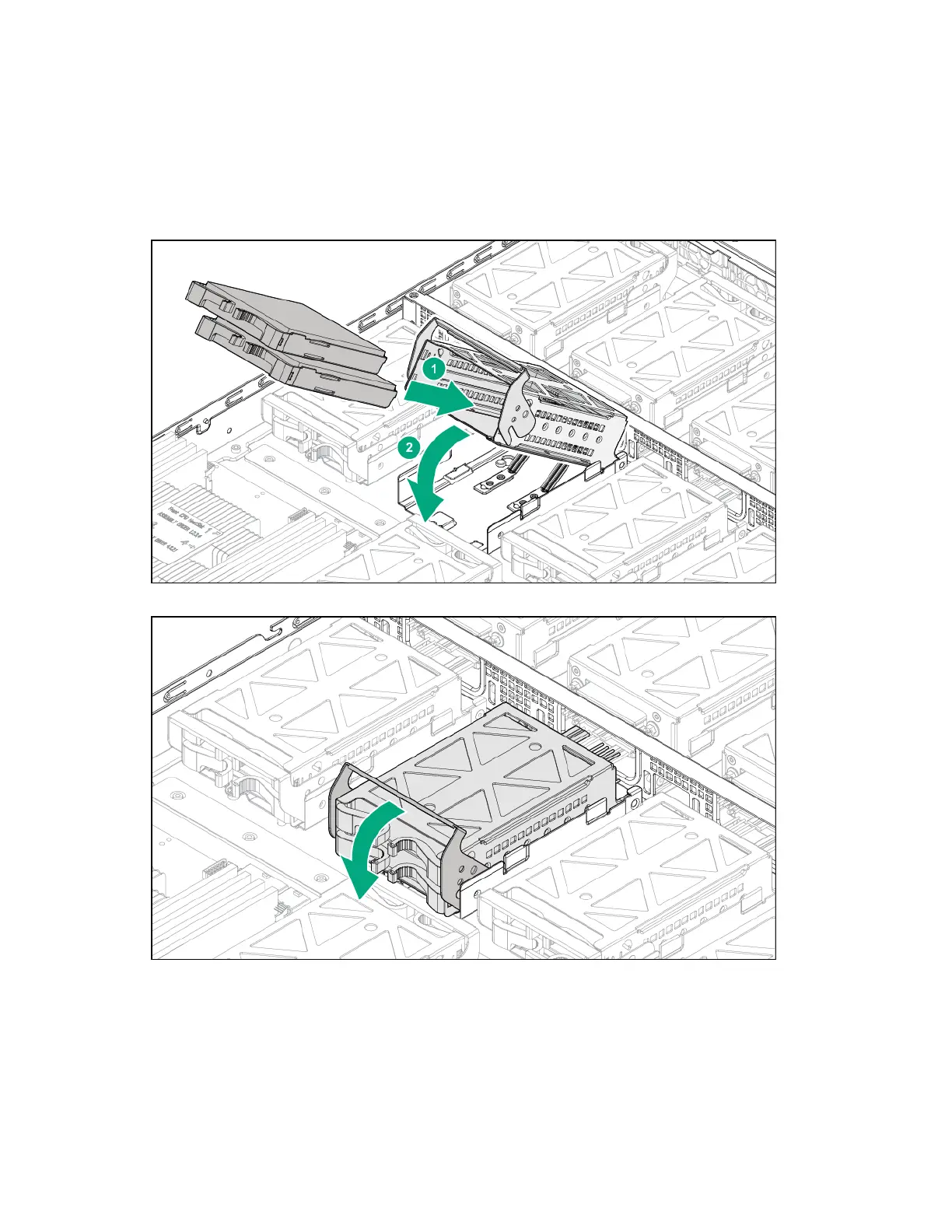

To install an SFF HDD assembly:
1. Power down the server and detach all power cords from the power supplies.
2. Remove the access panel (on page 31).
3. Install the HDD assembly into the HDD cage.
4. Press the HDD cage down into the chassis.
5. Flip down the handle to lock the HDD cage in the chassis.
6. Install the access panel (on page 31).
