Hardware options installation
72
Trusted Platform Modules (TPM)
Removing a
TPM
To remove a
TPM
:
1.
Power down the server and detach all of the power c
ords from the power supplies.
2.
Remove the access panel (on page
31
).
3.
Remove the riser board (on page
54
).
4.

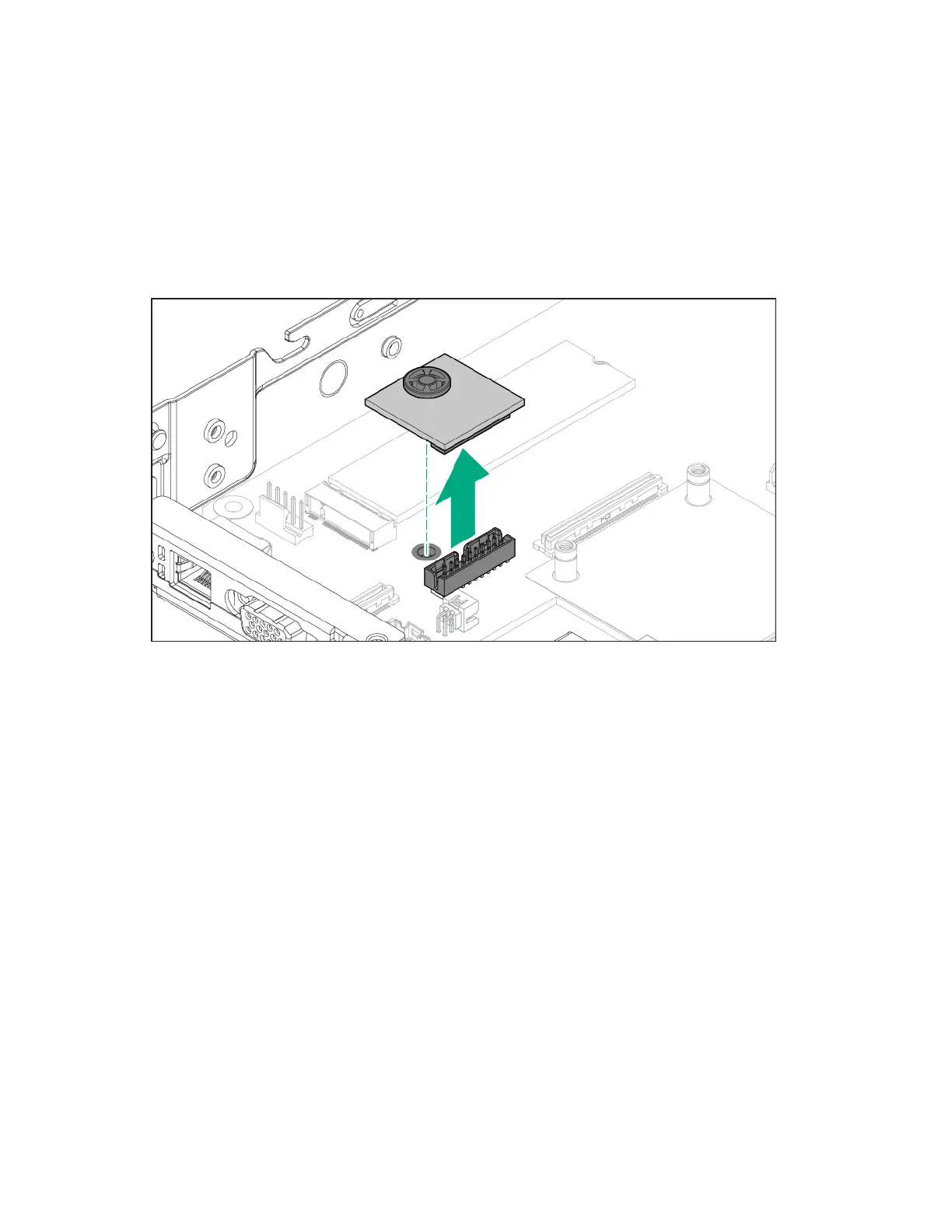

Hold the TPM by it edges and lift the TPM from t
he system board gently.
71
73
