Hardware options installation 62
CPLD boards
Removing a CPLD board
To remove a CPLD board:
1. Power down the server and detach all power cords from the power supplies.
2. Remove the rear SSD assembly (on page 29).
3. Remove the access panel (on page 31).
4. Remove the air fence (on page 50)
5. Remove the internal fan module (on page 56).
6. Remove the rear storage cage (on page 60).
7. Disconnect the cables from the CPLD board. For additional cable information see page 13.

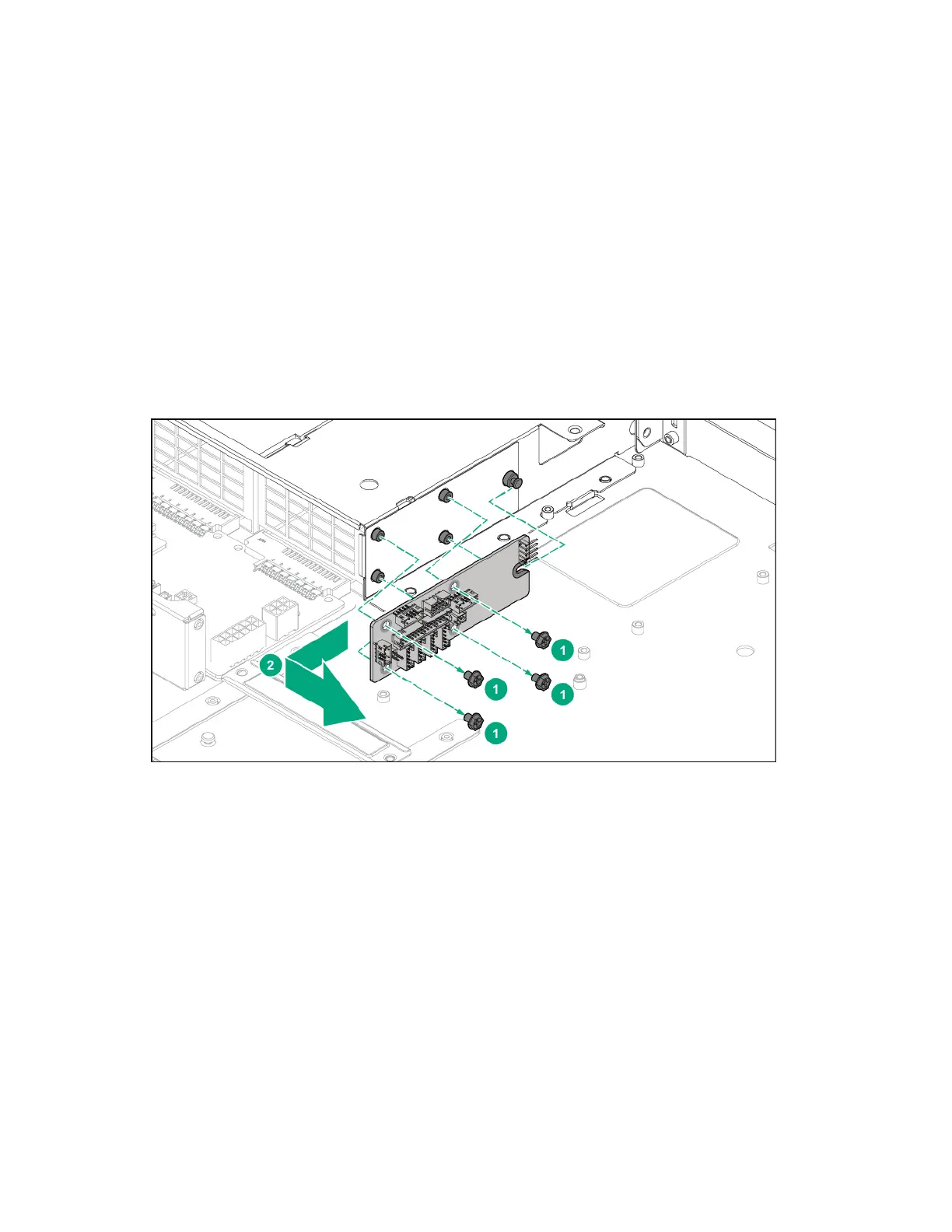

8. Remove the screws securing the CPLD board to the chassis.
9. Slide to remove the CPLD board.
