Hardware options installation 47
Installing a fan control board
To install a fan control board:

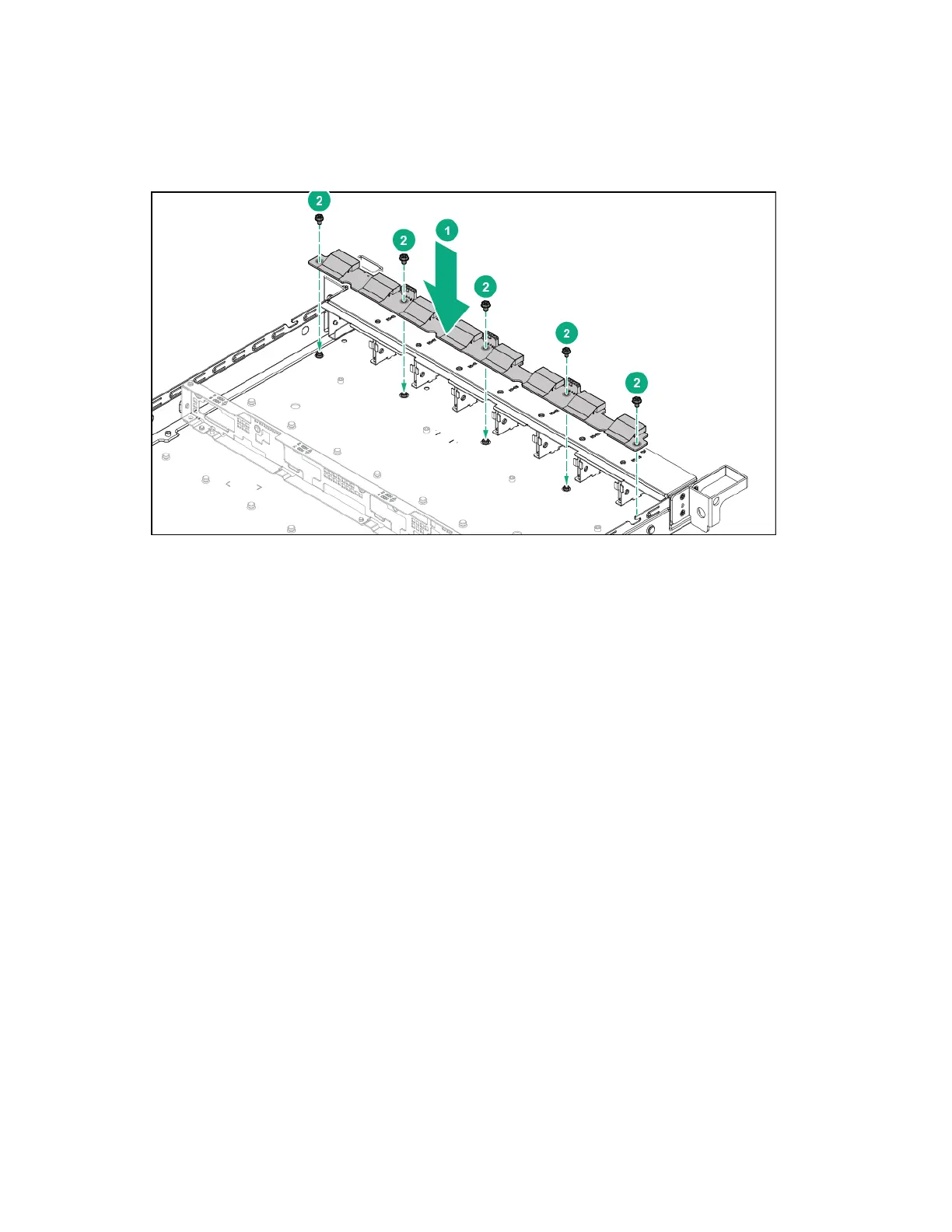

1. Align the holes on the fan control board with the holes on the chassis.
2. Secure the fan control board to the chassis with screws.
3. Connect the cables to the fan control board, see page 88 or 90.
4. Install the access panel (on page 31).
5. Install the fan modules (on page 27).
