Installing a CPLD board

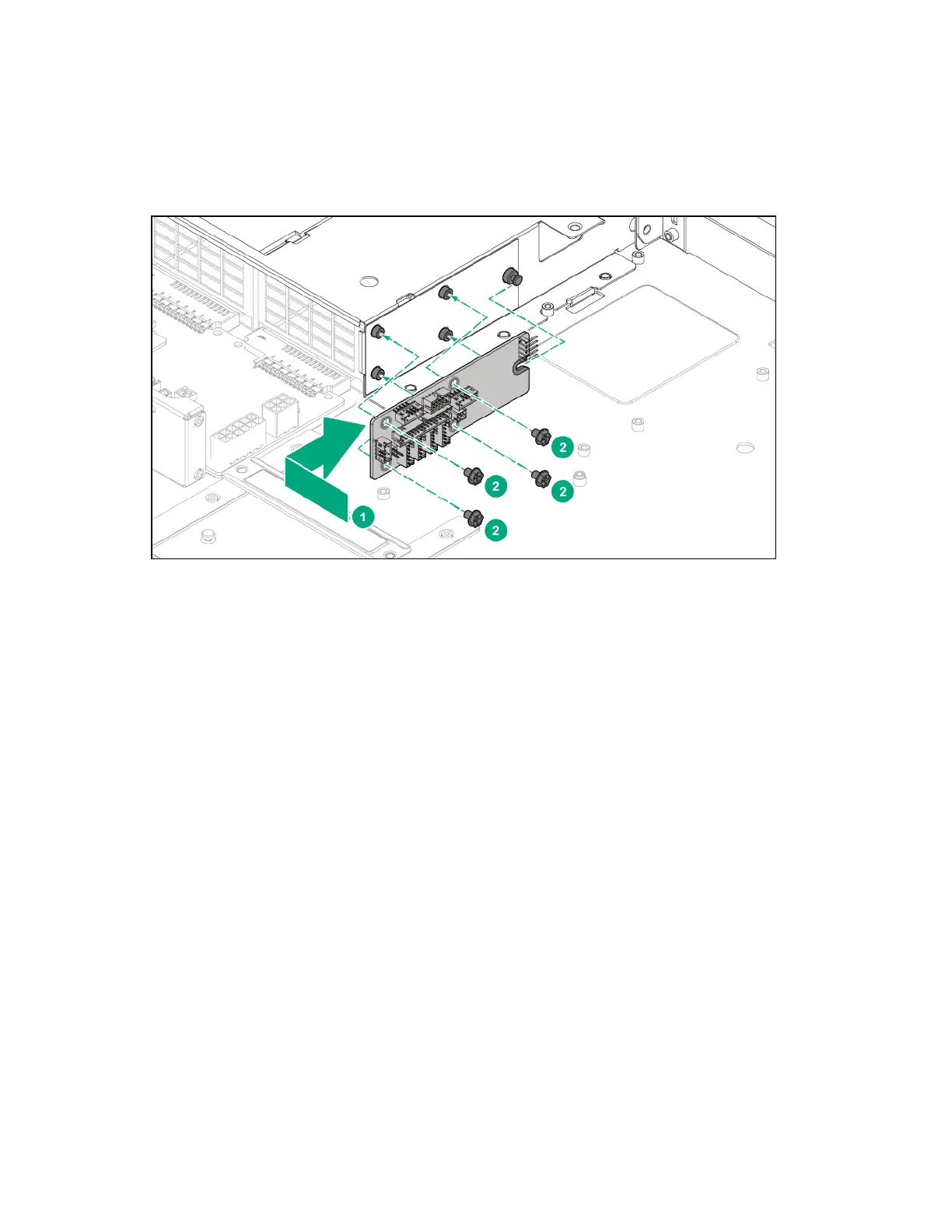

To install a CPLD board:
1. Align the notch on the CPLD board with the post on the chassis.
2. Slide the CPLD board to lock on the chassis, make sure the holes are aligned.
3. Secure the CPLD board to the chassis with screws.
4. Connect the cables to the CPLD board. For additional cable information see page 13.
5. Install the rear storage cage (on page 61).
6. Install the internal fan module (on page 58).
7. Install the air fence (on page 51).
8. Install the access panel (on page 31).
9. Install the rear SSD assembly (on page 28).
