Cabling 88
Cabling

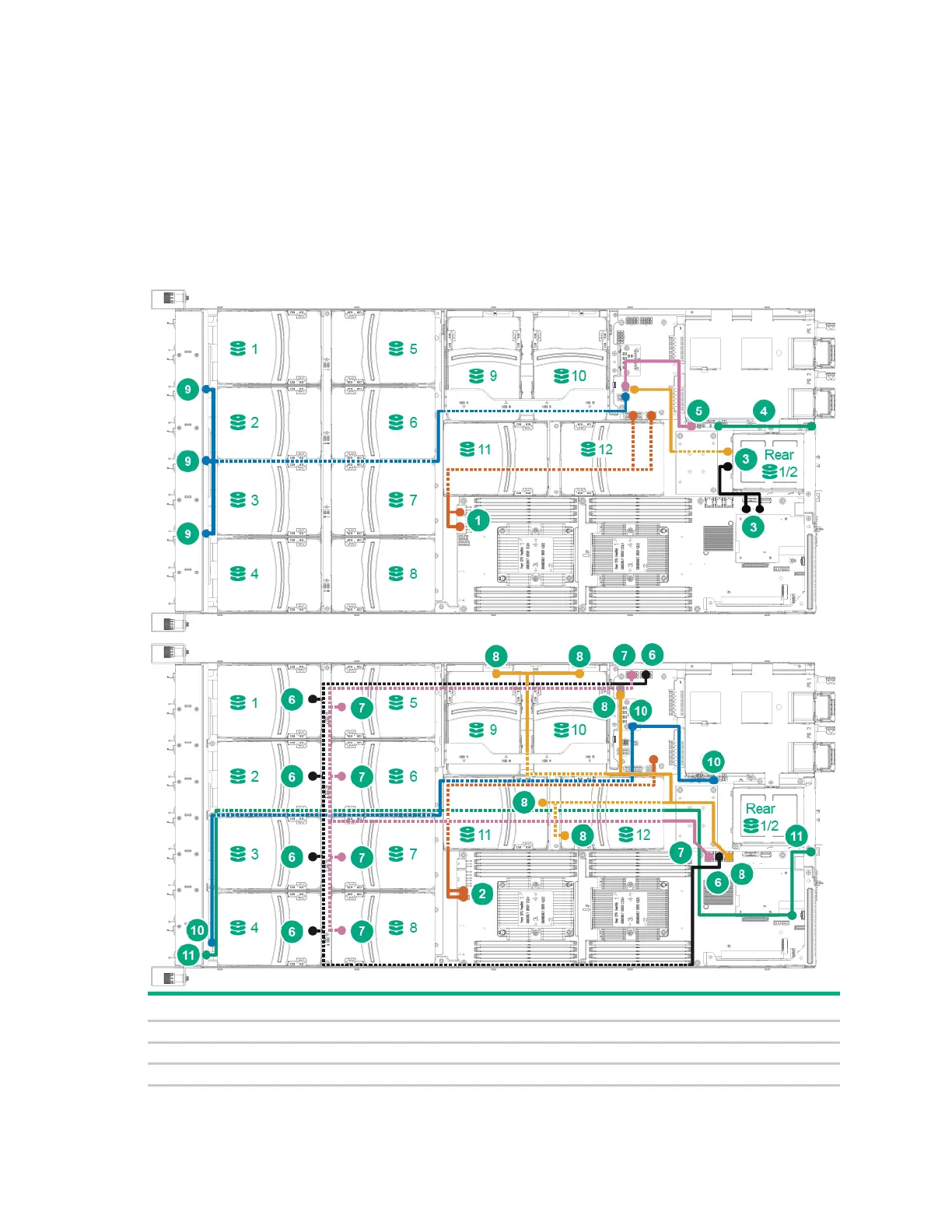

Internal system cable routing
The server internal cable routing is listed in the following figure and table:
12 LFF HDDs
Item
Description
Quantity
1
MB power cable
Power interposer board J1, J10 to system board J19, J25 (x 1)
2
MB sideband signal cable
Power interposer board J17 to system board J15 (x 1)
3
SSD power and signal cable
Rear HDD/SSD to system board J11, J14 (x 1)
