Hardware options installation 42

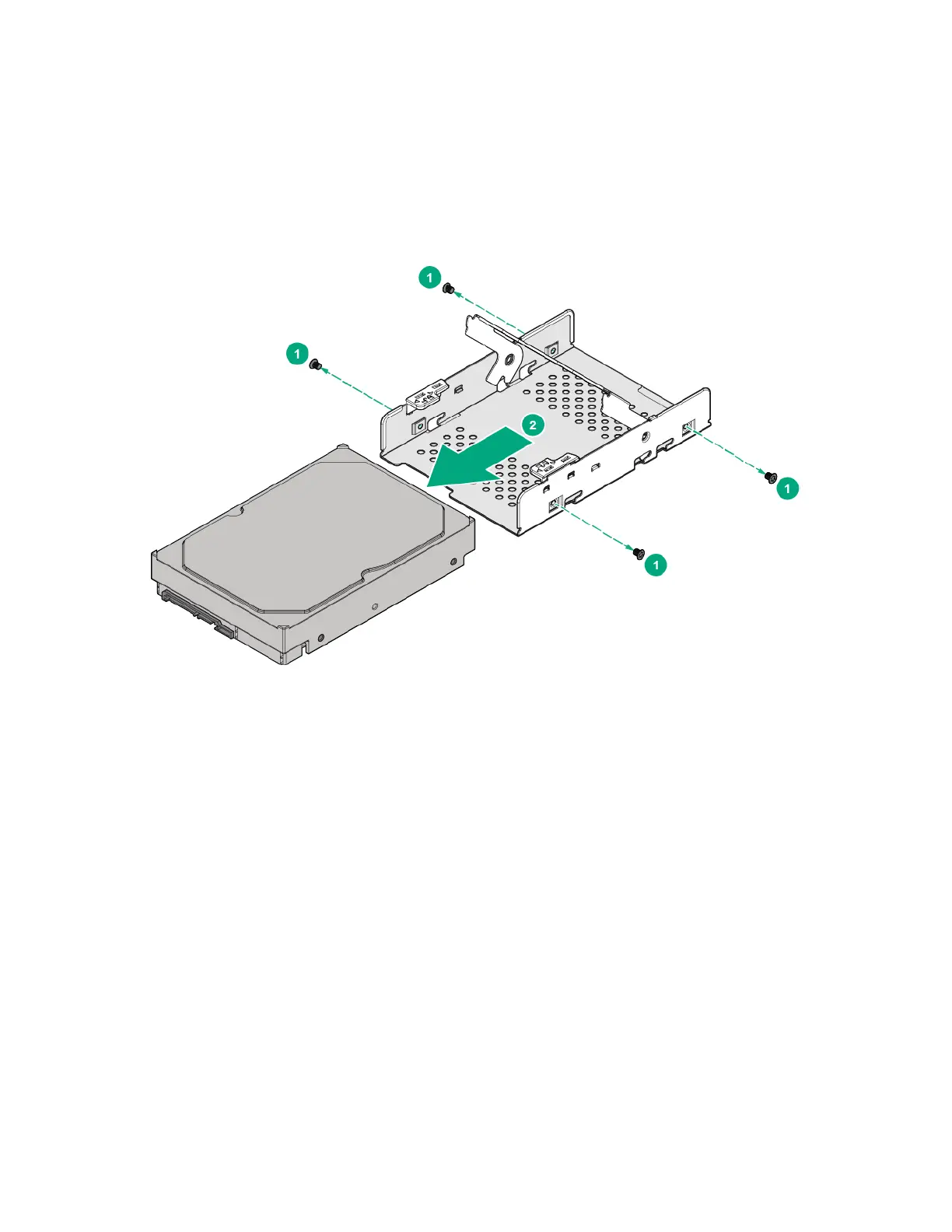

Removing a 3.5” HDD module
To remove a 3.5” HDD module:
1. Power down the server and detach all power cords from the power supplies.
2. Remove the access panel (on page 31).
3. Remove the HDD assembly (on page 36).
4. Remove the screws securing the HDD to the HDD carrier.
5. Slide to remove the HDD from the HDD carrier.
