Hardware options installation 61
Installing a rear storage cage

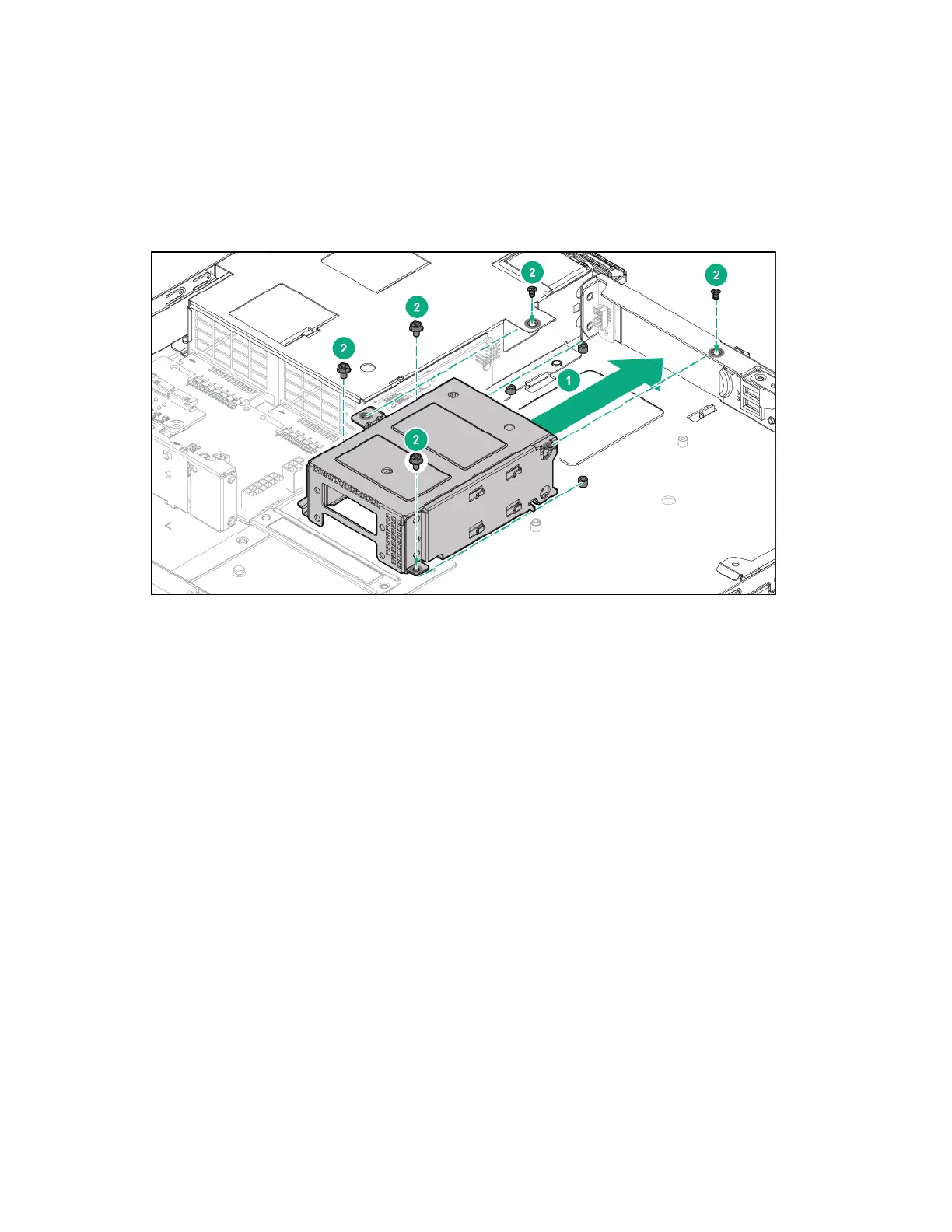

To install a rear storage cage:
1. Position the storage cage in the chassis. Make sure the screw holes on the storage cage are aligned
with the standoffs on the chassis.
2. Install the storage cage. To install correctly, make sure the flange on the top left side of the storage
cage is seated underneath the flange of the PSU cage.
3. Secure the rear storage cage to the chassis with screws.
4. Align the holes on the cables with the holes on the rear storage cage.
5. Secure the cables to the rear storage cage with screws.
6. Install the internal fan module (on page 58).
7. Install the air fence (on page 51).
8. Install the access panel (on page 31).
9. Install the rear SSD assembly (on page 28).
