Installing a memory module
The system board includes 16 DIMM slots (four channels per processor, each channel contains two
memory slots) for the installation of DDR4 1600/1866/2133/2400/2667 MHz memory.

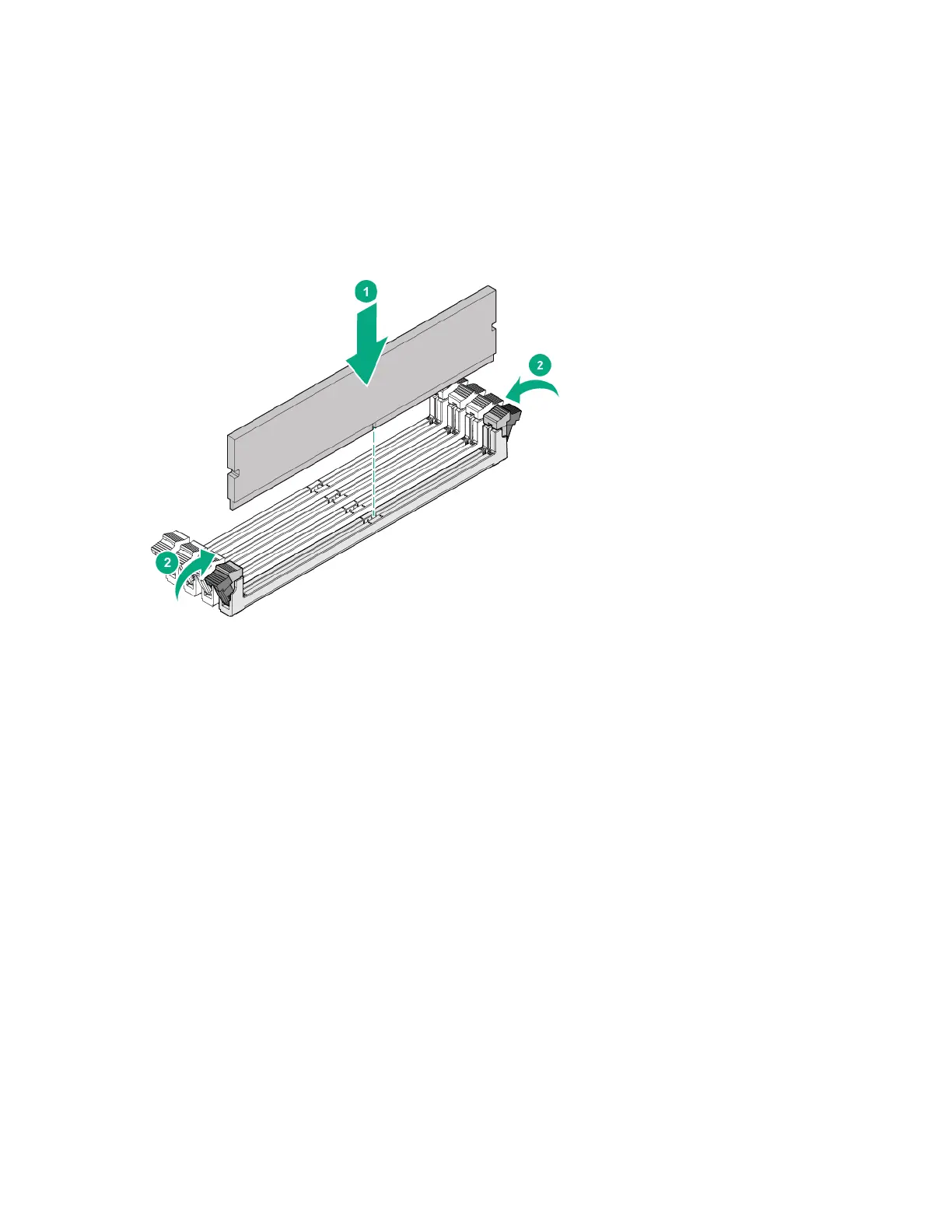

To install the memory module:
1. Pull the locking latches of the DIMM slot outwards.
2. Place the memory module in the socket so the notch and obstruction are aligned.
3. Press the edge connector of the memory module into the slot. Press down firmly so that the locking
latches of the DIMM slot are levered upwards to secure the memory module.
4. Repeat for the additional memory modules.
5. Install the access panel (on page 31).
