Hardware options installation 71
Installing a NVMe M.2 card

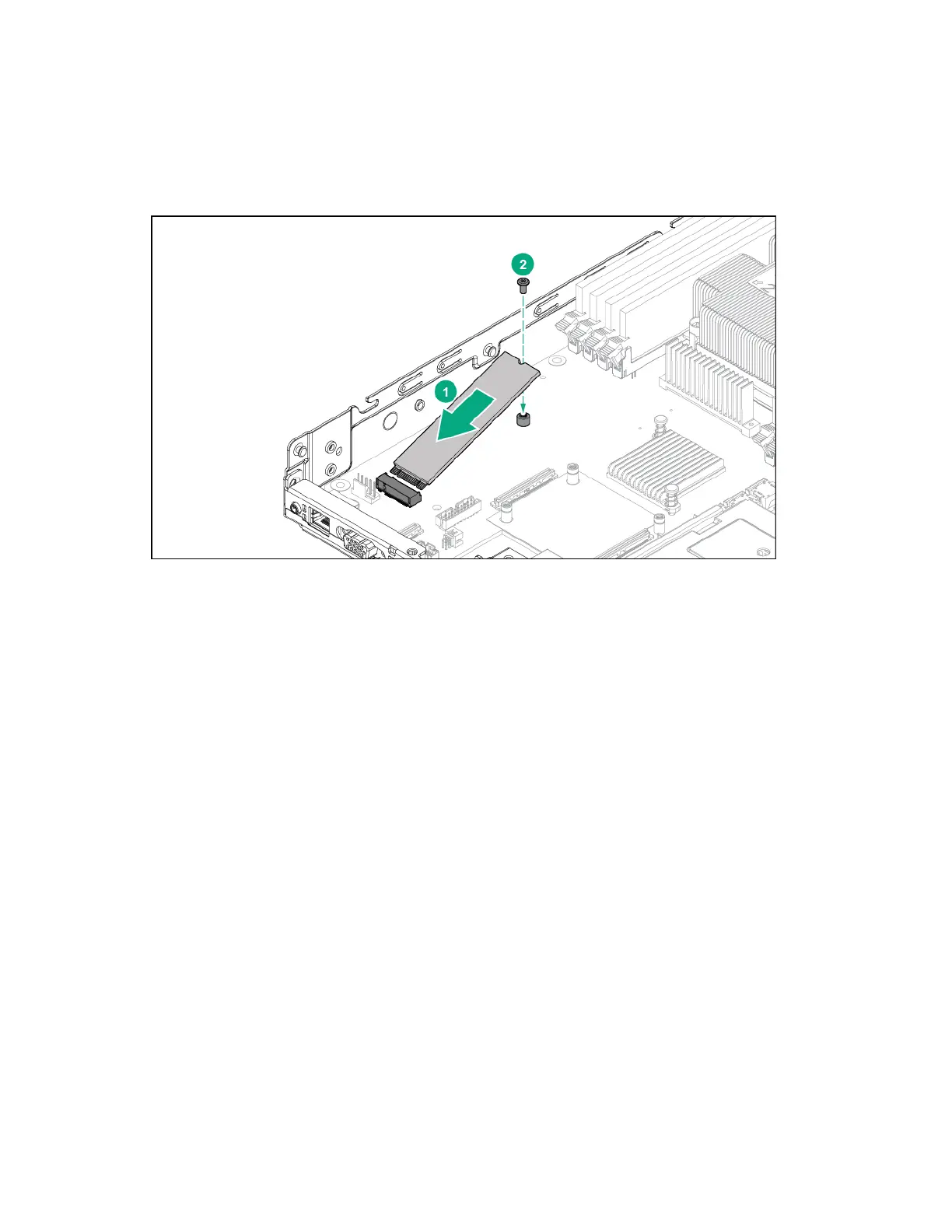

To install a NVMe M.2 card:
1. Align the protrusion on the connector with the indentation on the NVMe M.2 card.
2. Insert the NVMe M.2 card and lower it in place.
3. Secure the NVMe M.2 card to the system board with the screw.
4. Install the riser board (on page 55).
5. Install the access panel (on page 31).
