Hardware options installation 54
Riser boards

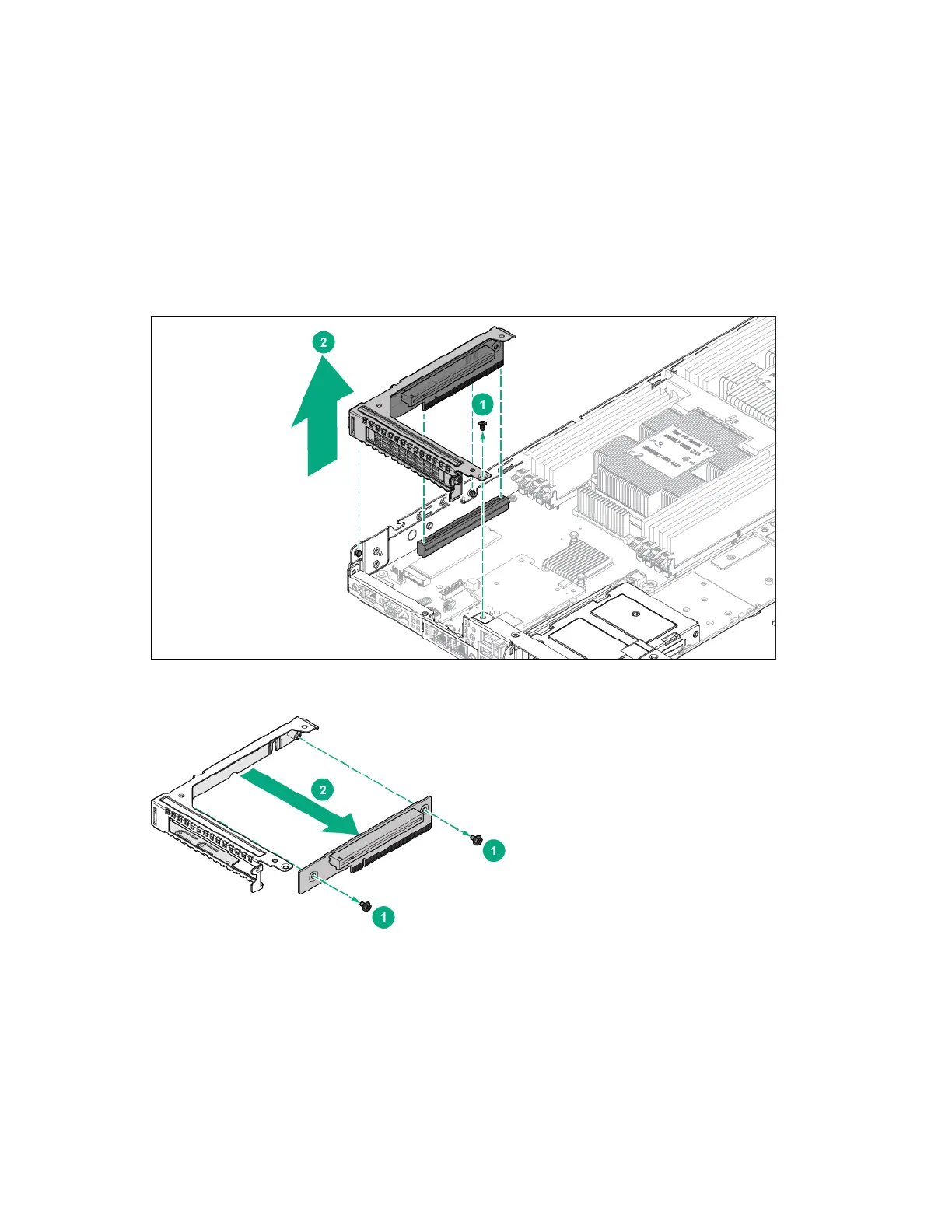

Removing a riser board
To remove a riser board:
1. Power down the server and detach all power cords from the power supplies.
2. Remove the access panel (on page 31).
3. Remove the screw securing the riser assembly to the chassis.
4. Grasp the riser assembly, and then gently lift a riser assembly up to remove the riser assembly from
the chassis.
5. Remove the screws securing the riser board to the riser bracket.
6. Remove the riser board from the riser bracket.
