Hardware options installation 68
PCIe switch boards
This section applies to 20 NVMe SSD model only.
Removing a PCIe switch board
To remove a PCIe switch board:
1. Power down the server and detach all power cords from the power supplies.
2. Remove the access panel (on page 31).
3. Disconnect the cables from the PCIe switch board. For additional cable information see page 15.

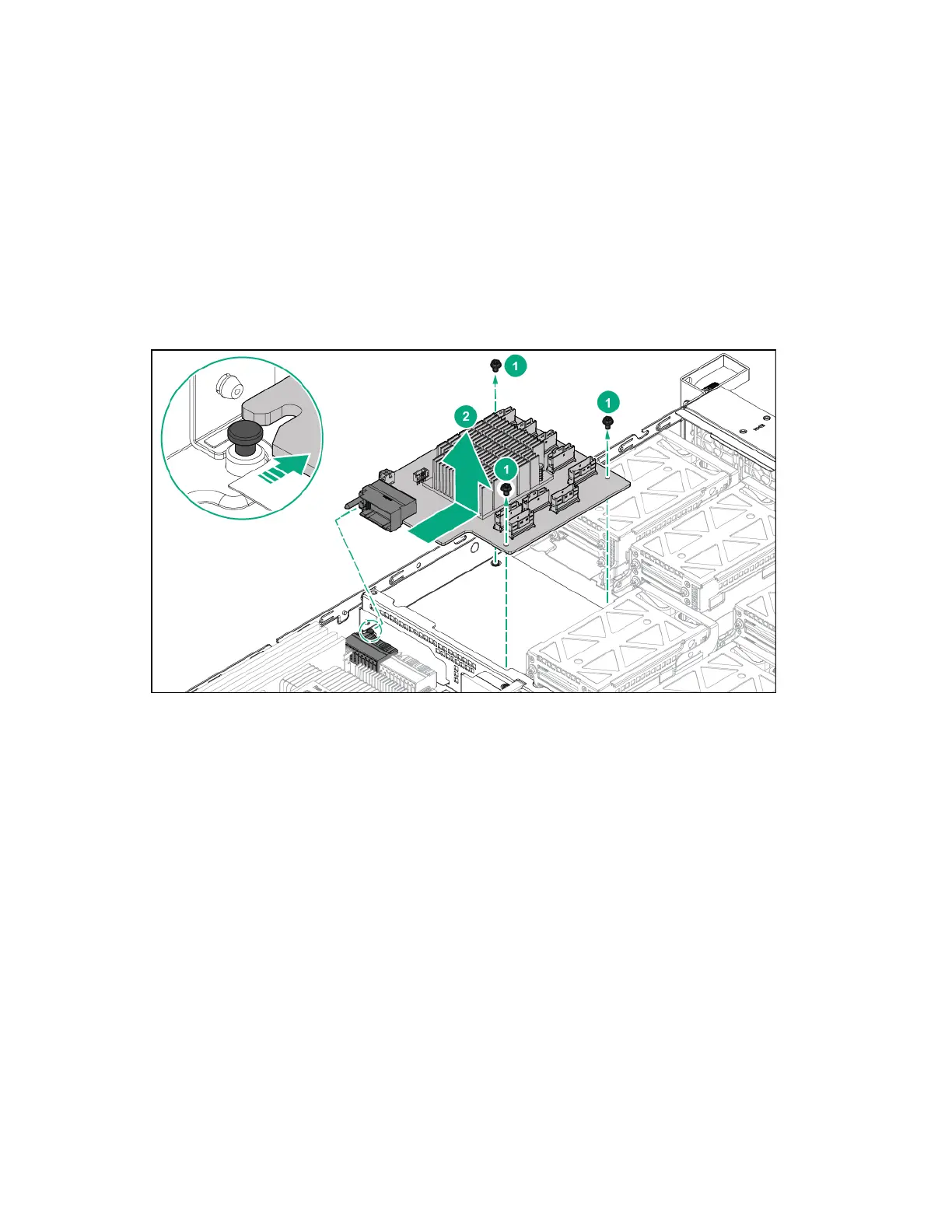

4. Remove the screws securing the PCIe switch board to the system board.
5. Remove the PCIe switch board.
