Hardware options installation 52
Power interposer boards

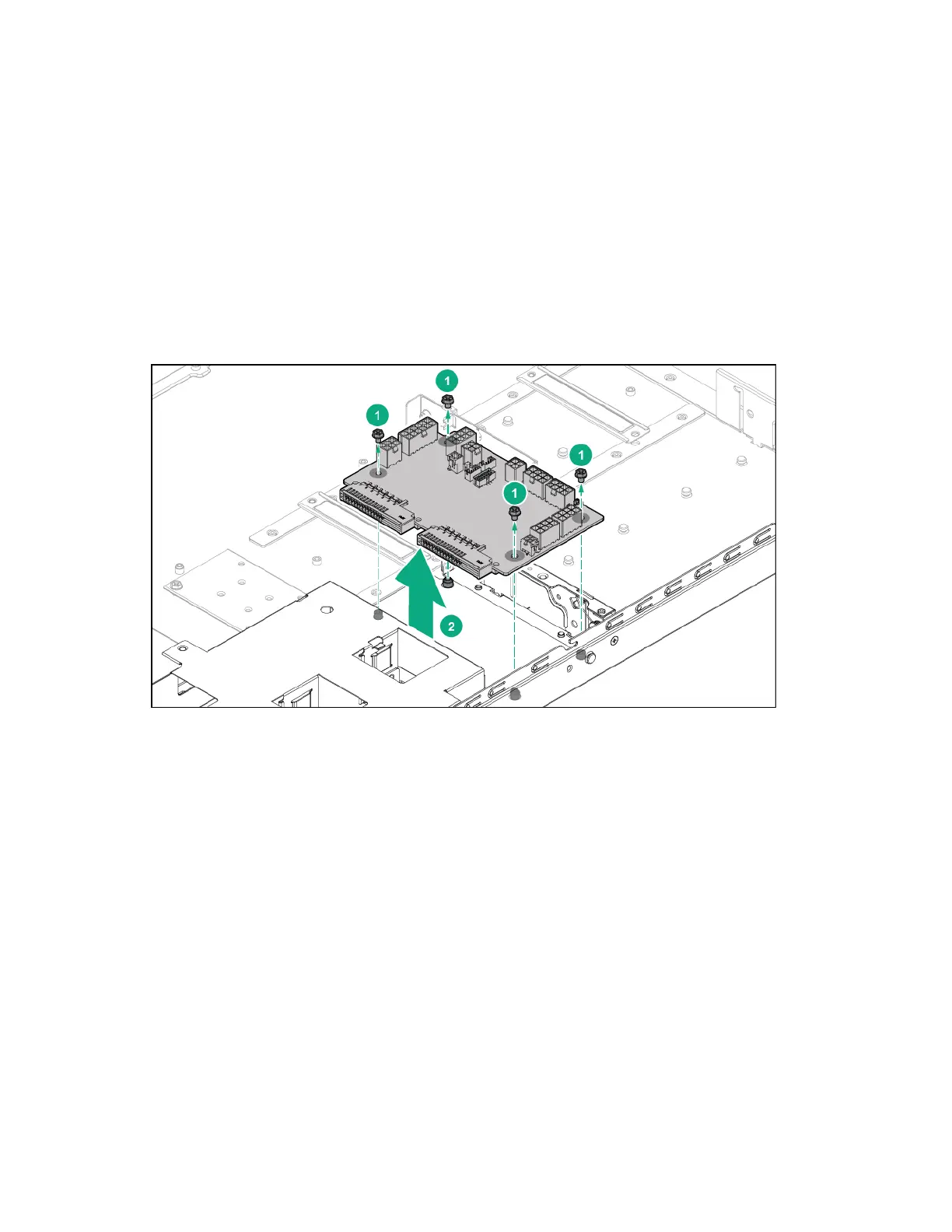

Removing a power interposer board
To remove a power interposer board:
1. Power down the server and detach all power cords from the power supplies.
2. Remove the power supply units (on page 27).
3. Remove the access panel (on page 31).
4. Disconnect the cables from the power interposer board. For additional cable information see page
11.
5. Remove the screws securing the power interposer board to the chassis.
6. Remove the power interposer board.
