Hardware options installation 56
Internal fan modules
This section applies to 20 NVMe SSD model only.
Removing an internal fan module
To remove an internal fan module:
1. Power down the server and detach all power cords from the power supplies.
2. Remove the access panel (on page 31).
3. Remove the air fence (on page 50)
4. Disconnect the cables from the power interposer board (connector J19 and J20).

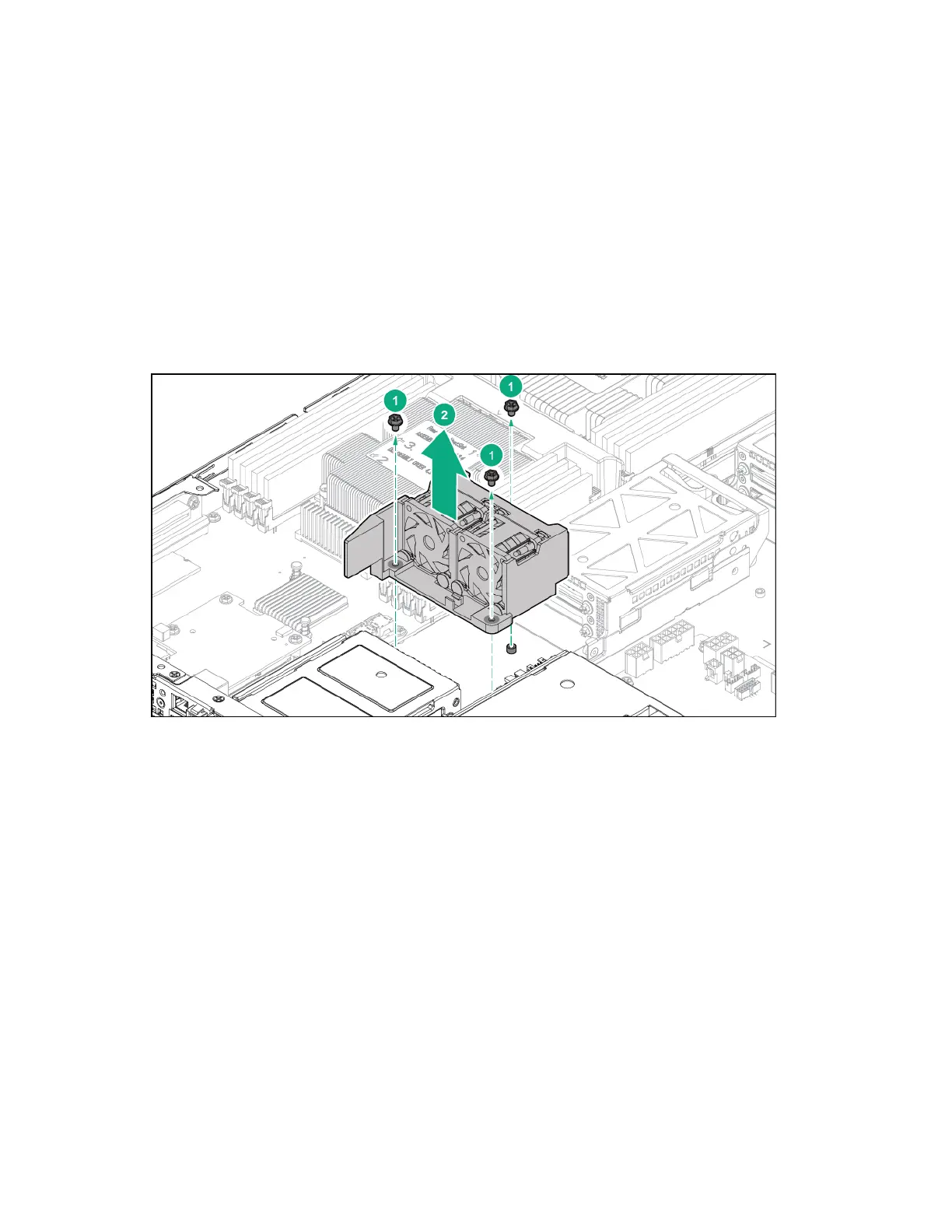

5. Remove the screws secure the internal fan assembly to the chassis.
6. Remove the internal fan assembly.
