Hardware options installation 86
Installing rackmount rails

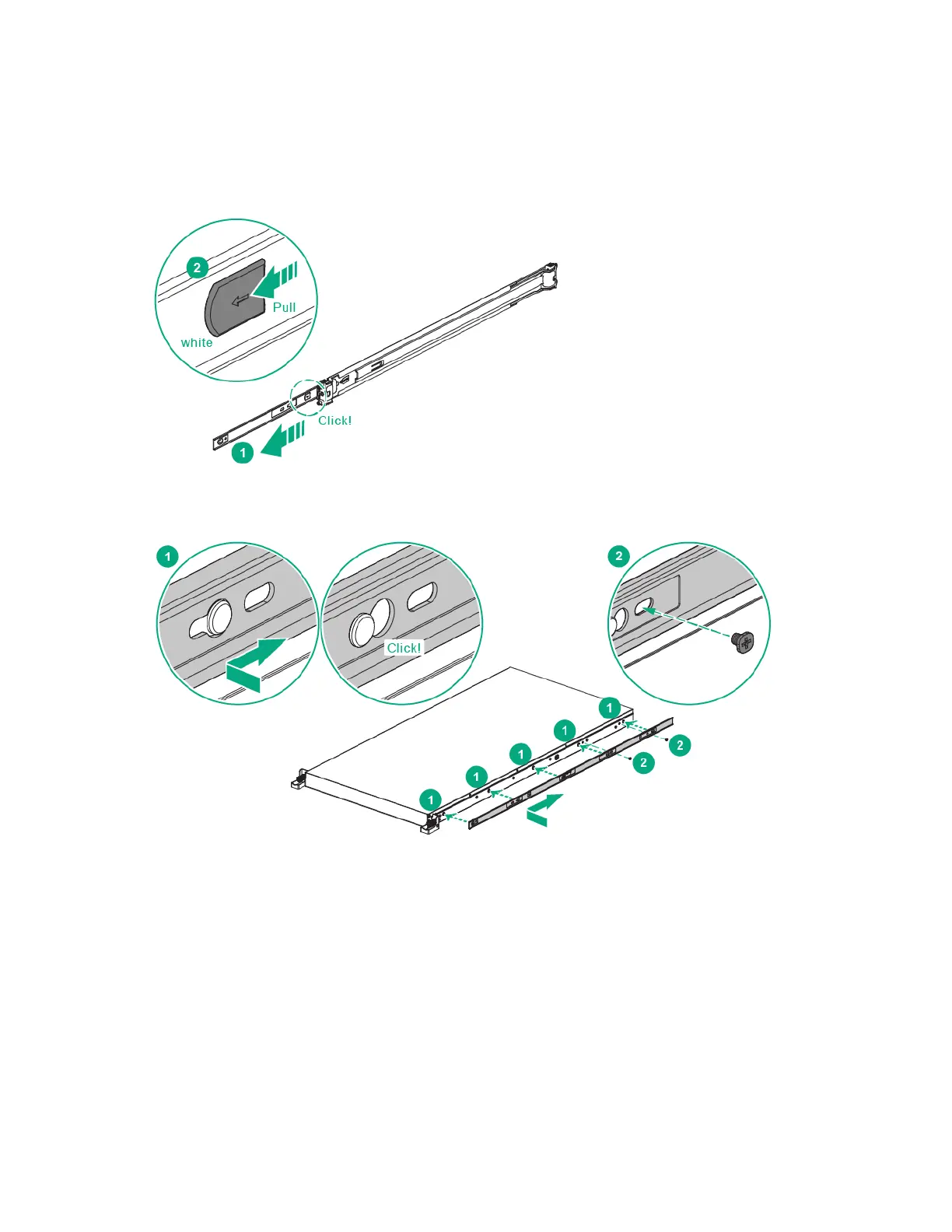

To install rackmount rails:
1. Pull the inner rail out until the rail locks in place.
2. Press the release latches to unlock the inner and outer rails.
3. Remove the inner rail from the outer rail.
4. Align the holes on the inner rail with the pins on the chassis. Slide the inner rail forward so that the
pins are in place.
5. Secure the inner rail with screws.
