Hardware options installation 64
LED boards
Removing a LED board
To remove a LED board:
1. Power down the server and detach all power cords from the power supplies.
2. Remove the rear SSD assembly (on page 29).
3. Remove the access panel (on page 31).
4. Remove the air fence (on page 50)
5. Remove the internal fan module (on page 56).
6. Remove the rear storage cage (on page 60).
7. Remove the CPLD board (on page 62).
8. Disconnect the cable from the LED board. For additional cable information see page 10.

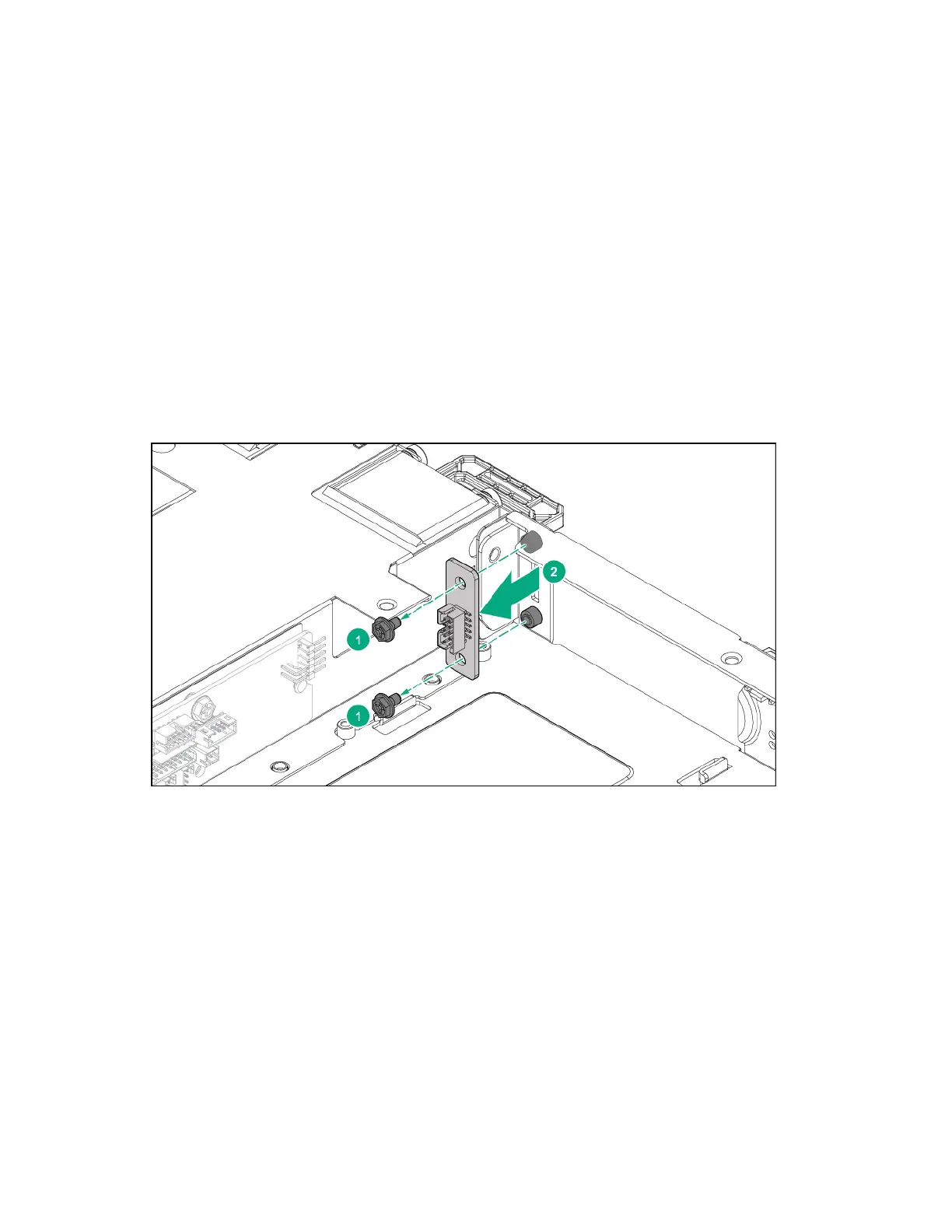

9. Remove the screws secure the LED board to the chassis.
10. Remove the LED board.
