Hardware options installation 65
Installing a LED board
To install a LED board:

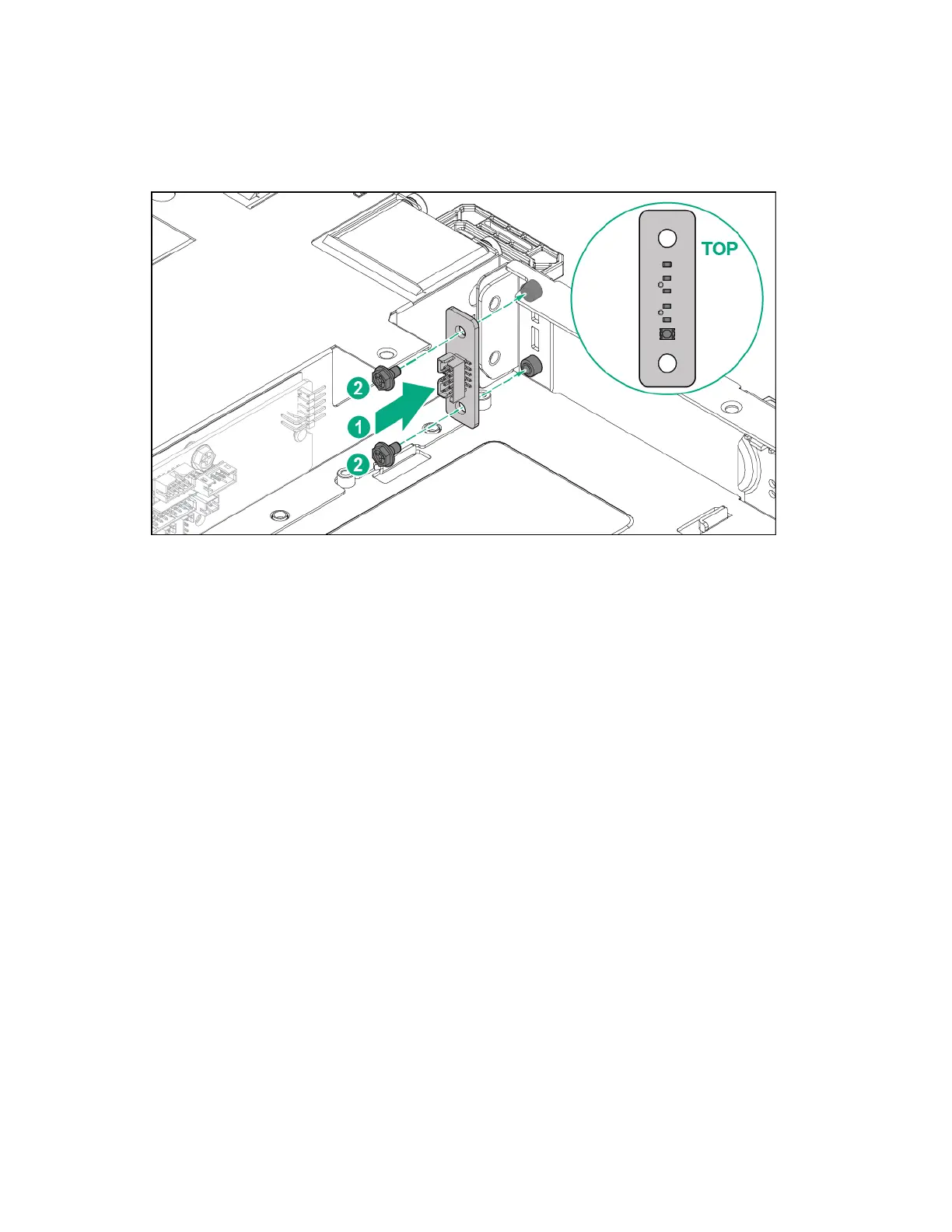

1. Align the LEDs on the LED board with the holes on the chassis.
2. Secure the LED board to the chassis with screws.
3. Connect the cable to the LED board. For additional cable information see page 10.
4. Install the CPLD board (on page 63).
5. Install the rear storage cage (on page 61).
6. Install the internal fan module (on page 58).
7. Install the air fence (on page 51).
8. Install the access panel (on page 31).
9. Install the rear SSD assembly (on page 28).
