Hardware options installation 82
Installing a system board module
To install a system board module:

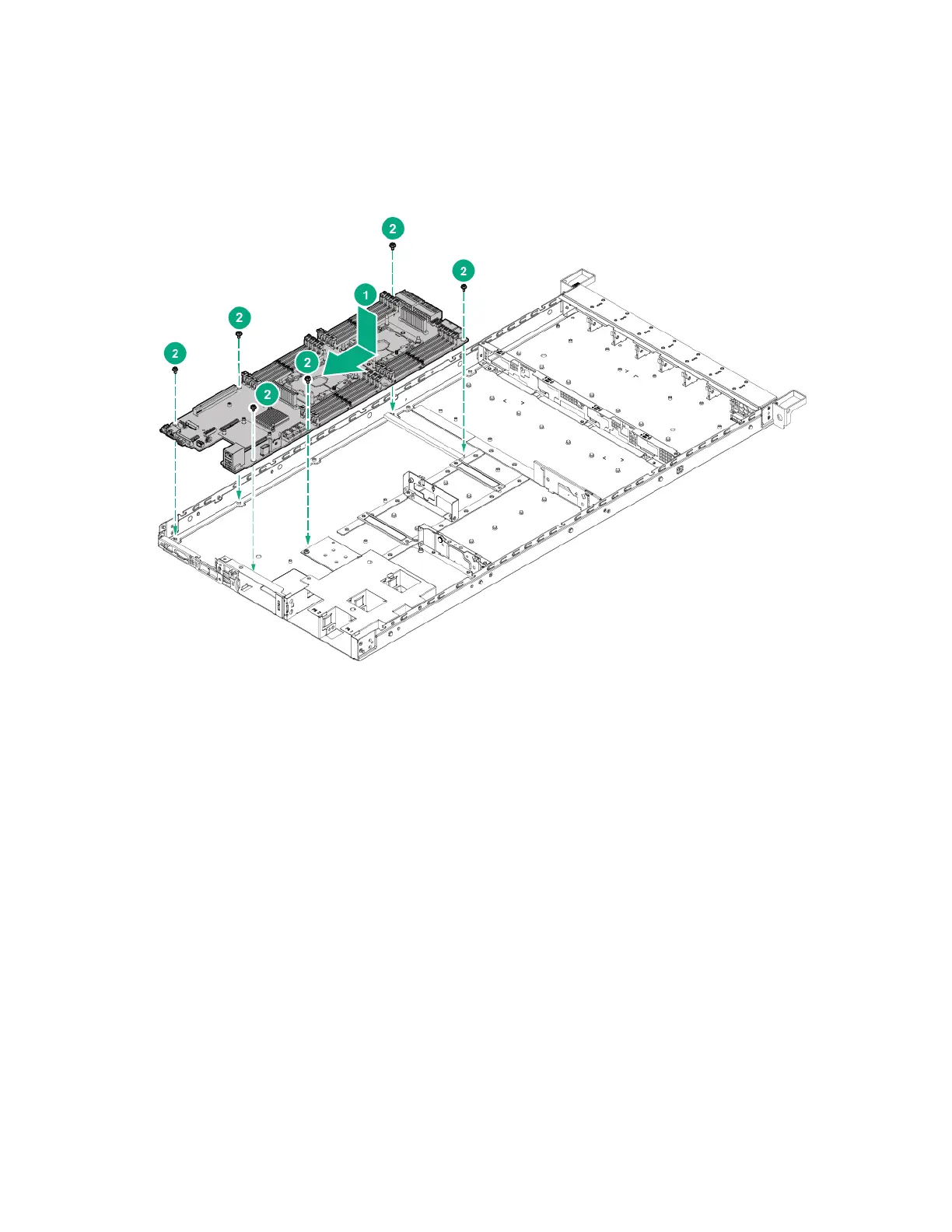

1. Align the I/O ports on system board with the slots on the rear of the chassis.
2. Install the system board into the chassis.
3. Secure the system board and the chassis with thumb screw.
4. Connect the cables to the system board, see page 88 or 90.
5. Install the processors (on page 78).
6. Install the memory modules (on page 75).
7. Install the riser board (on page 55).
8. Install the PCIe switch board (on page 69).
9. Install the OCP mezzanine card (on page 67).
10. Install the air baffle (on page 49).
11. Install the access panel (on page 31).
