Hardware options installation 69
Installing a PCIe switch board

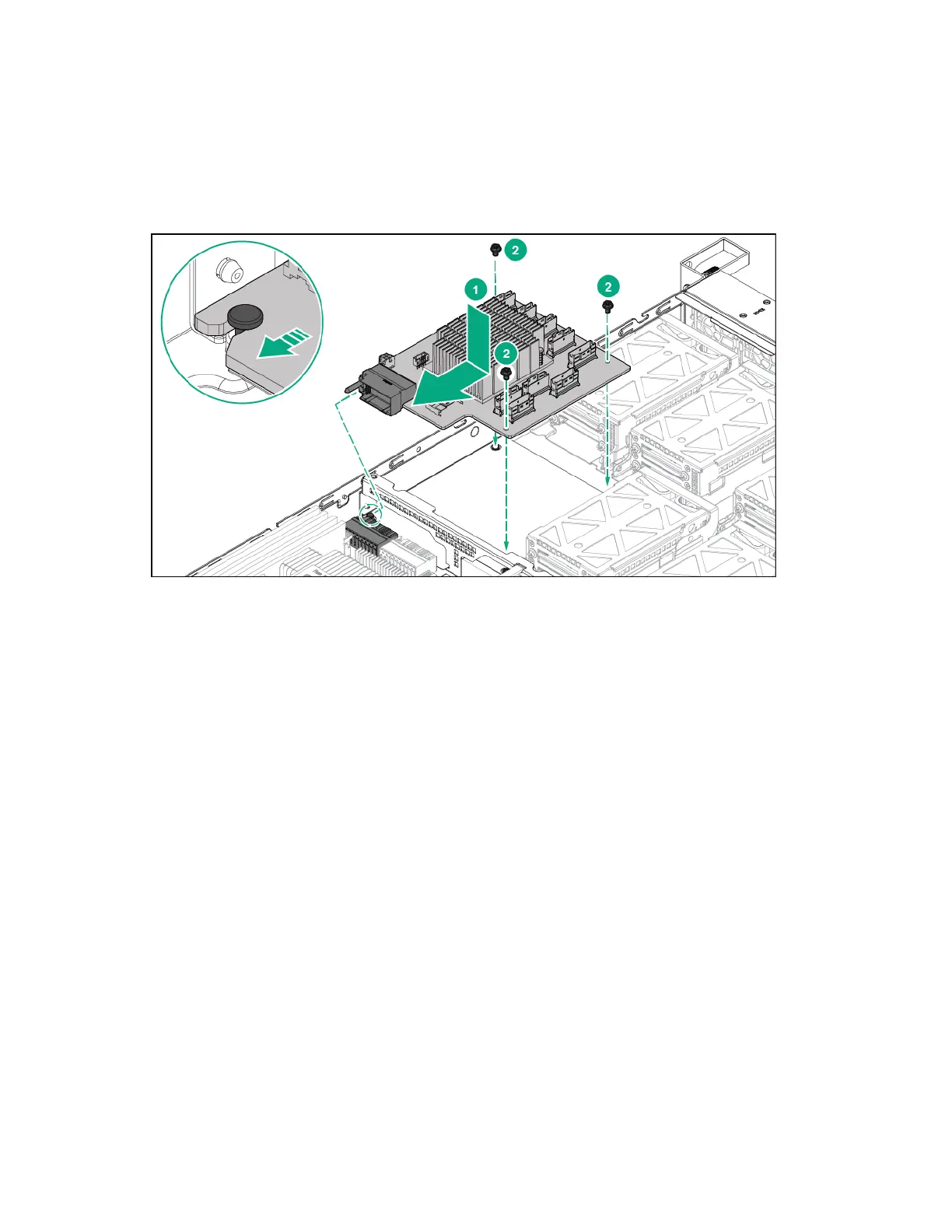

To install a PCIe switch board:
1. Align the connector on the PCIe switch board with the slot on the system board. Make sure the notch
on the PCIe switch board is locked with the post on the chassis.
2. Install the PCIe switch board gently.
3. Secure the PCIe switch board to the chassis with screws.
4. Connect the cables to the PCIe switch board. For additional cable information see page 15.
5. Install the access panel (on page 31).
