Hardware options installation 53
Installing a power interposer board
To install a power interposer board:

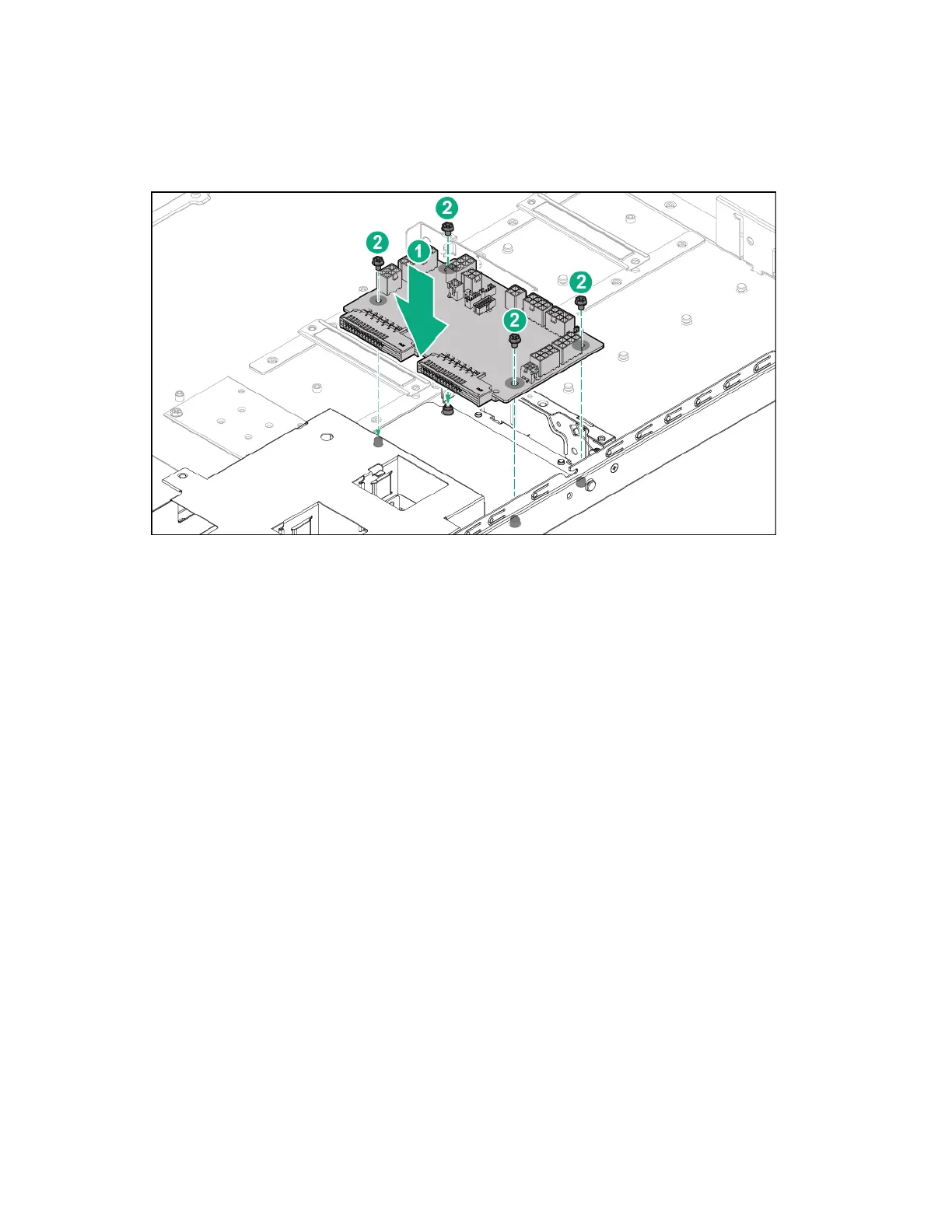

1. Align the holes on the power interposer board with the holes on the chassis.
2. Secure the power interposer board to the chassis with screws.
3. Connect the cables to the power interposer board. For additional cable information see page 11.
4. Install the access panel (on page 31).
5. Install the power supply units (on page 28).
