HPE Cloudline CL3100 Gen10 User Manual

Component identification 8

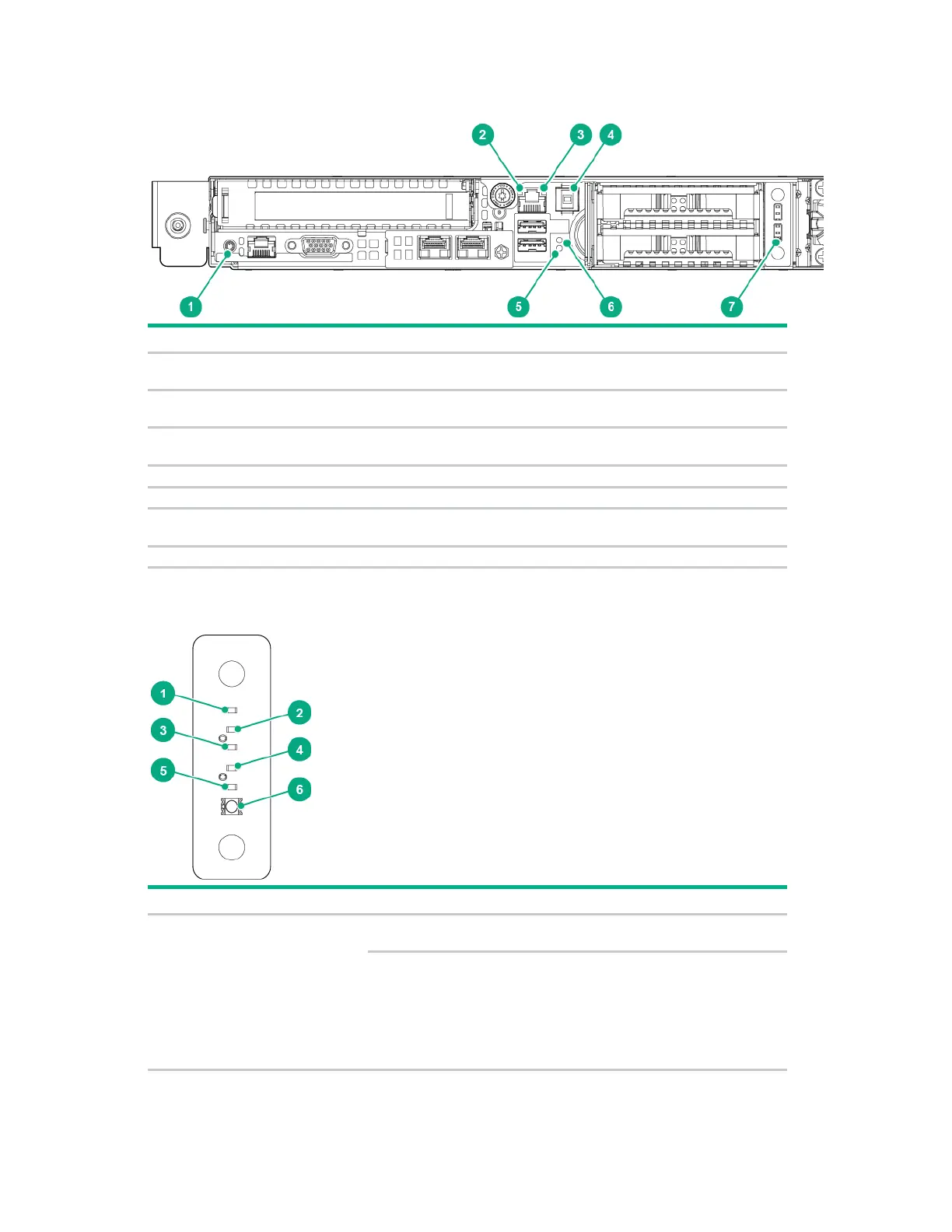

Rear panel LEDs and buttons
Item
Description
Status
1
Power button with LED
Solid green = Power status is S0
Solid orange = Power status is S5
2
Management LAN active LED
Solid green = Link
Blinking green = Active
3
Management LAN link LED
Solid amber = Link speed is 1G
Off = Link speed is 10/100Mbps
4
UID and reset button
5
UID LED
Solid blue = Event triggered by UID button
6
System status LED
Solid green = Normal operation
Solid amber = Fault detected
7
Drive LEDs
See “Drive LED status indicators”
Drive LED status indicators
Item
Description
LED Status
Status
1 (ID 4)
2 (ID 3)
3 (ID 2)
4 (ID 1)
5 (ID 0)
Drive ID LED
All Off
No drive is installed, or no drive fault/rebuild
occurred
Any bit on
5 LEDs show drive location. Location of a
being located drive when status LED shows
blinking red 4Hz, or location of a fault drive
when status LED shows steady red.
If more than one location needs to be
displayed, then each number will be shown
for 5 seconds duration and loops repeatedly.
