Hardware options installation 45
Installing an SSD module
To install an SSD module:
1. Power down the server and detach all power cords from the power supplies.
2. Remove the access panel (on page 31).

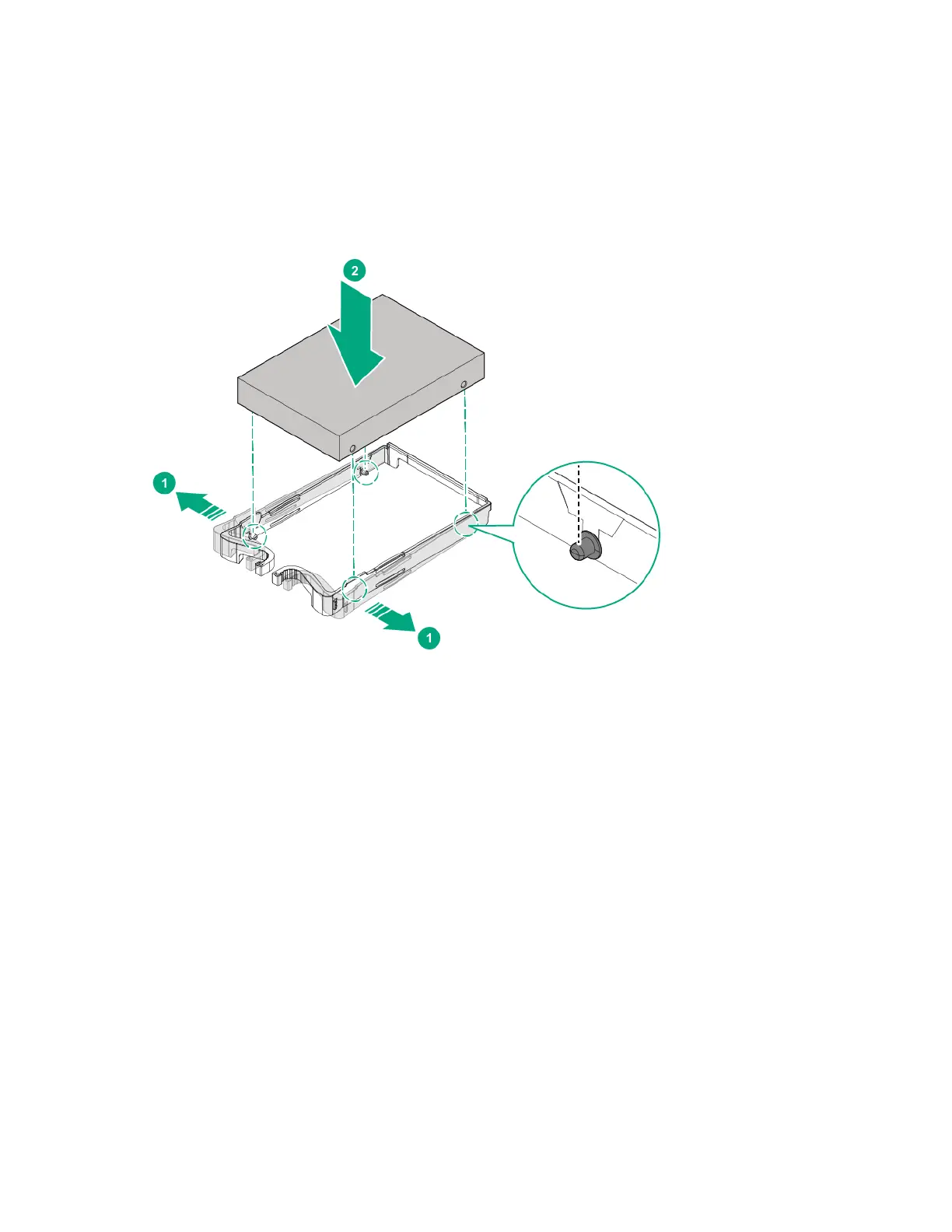

3. Pry open the SSD bracket and align the screw holes on the SSD with the pins on the SSD bracket.
The connector faces the rear of the SSD bracket.
4. Install the SSD to the SSD bracket.
5. Install the SSD assembly (on page 41).
6. Install the access panel (on page 31).
