HPE Cloudline CL3100 Gen10 User Manual

Component identification 9
Item
Description
LED Status
Status
6
Drive status LED
Solid green
Power on with no drive activity
Blinking green
Power on with drive activity
Solid red
Drive fault has occurred (refer to ID LED)
Blinking red (4Hz)
Drive is being located (refer to ID LED)
Blinking red (1Hz)
RAID rebuild in progress

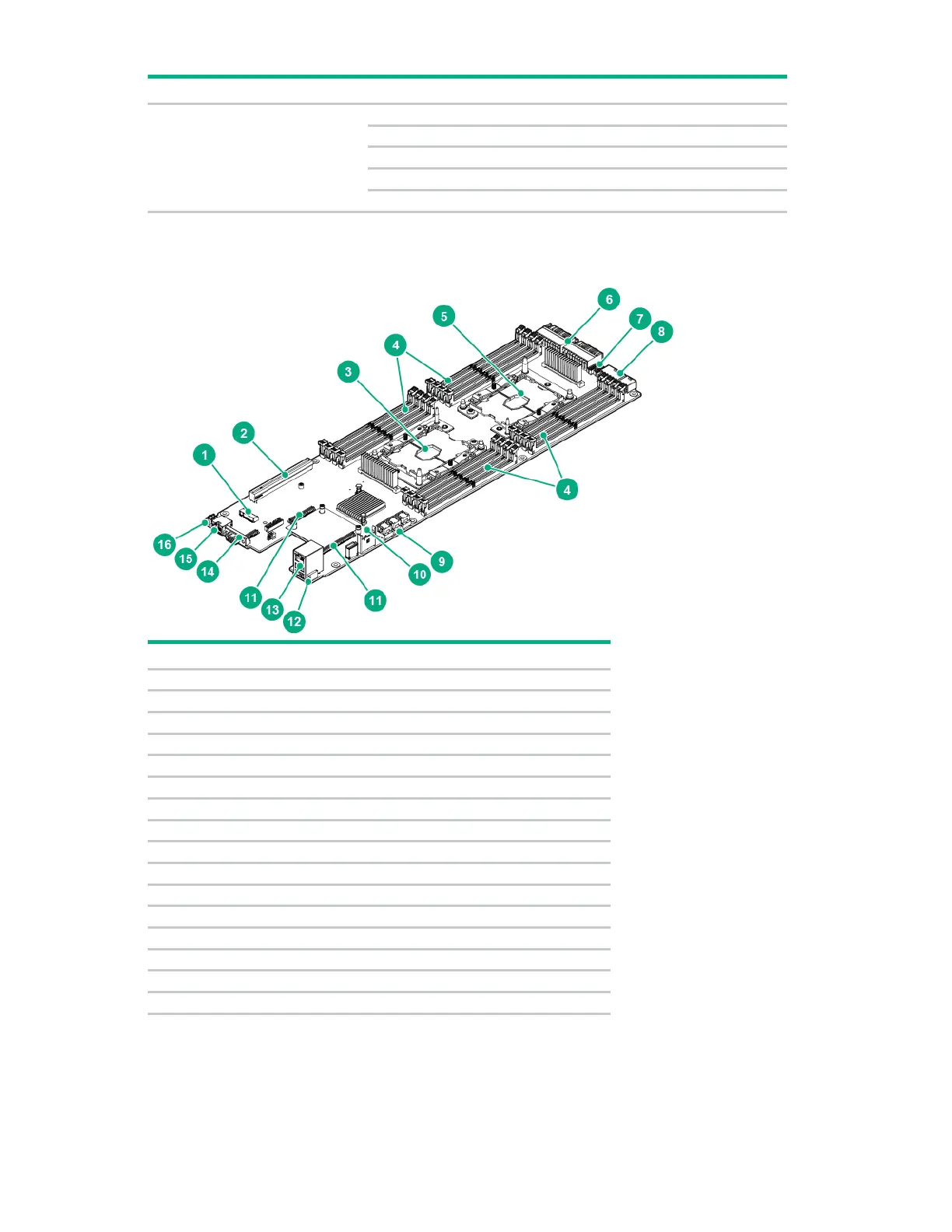

System board components
Item
Description
1
NVMe M.2 connector
2
PCIe x16 slot
3
Processor 0
4
DIMM (16)
5
Processor 1
6
PCIe x16 extend connector (2)
7
RPS connector (2)
8
Power connector (2)
9
MiniSAS connector (3)
10
Battery slot
11
OCP mezzanine connector
12
UID LED
13
Dual USB 3.0 and RJ45
14
VGA port
15
RJ45 for serial console
16
Power button
