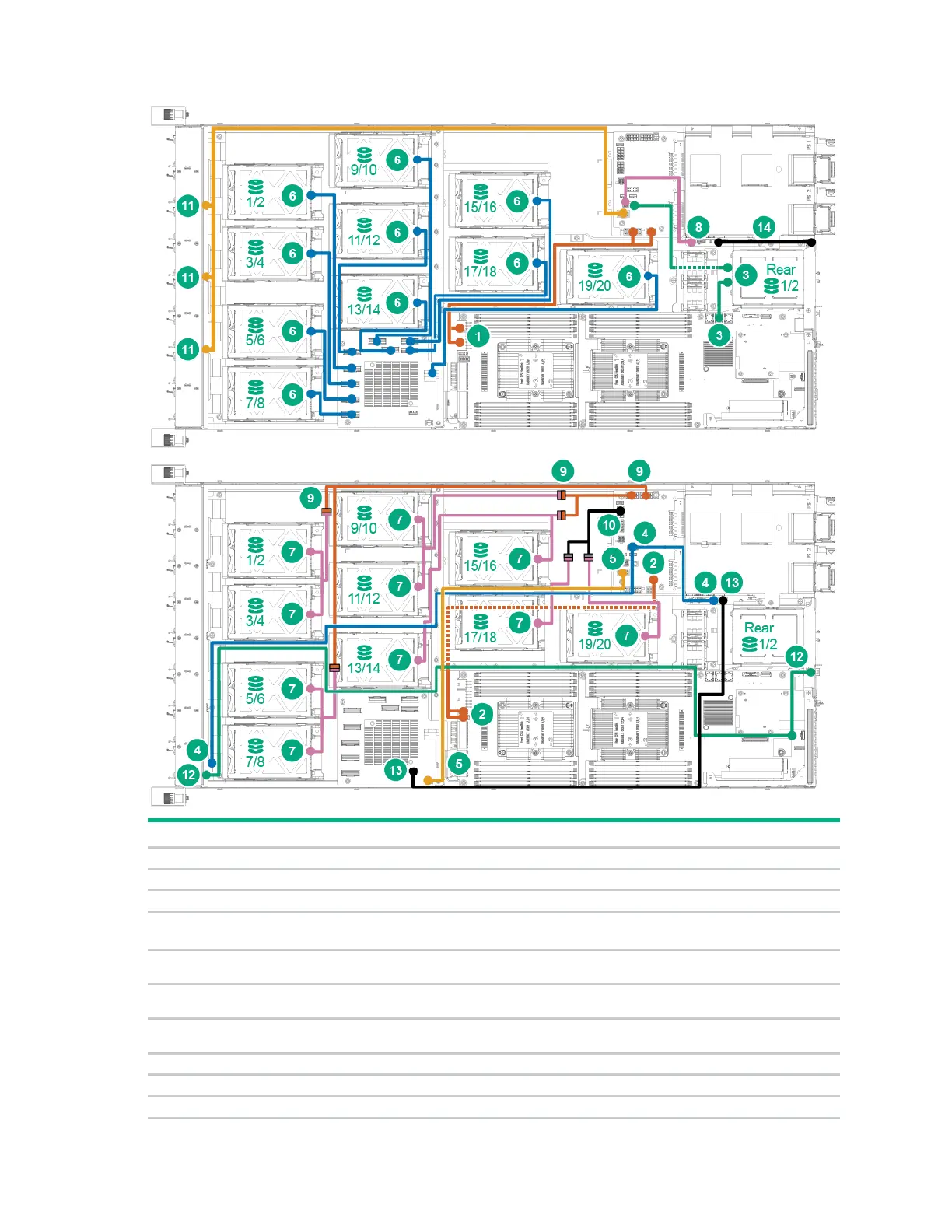

Cabling 90
20 NVMe SSD
Power interposer board J1, J10 to system board J19, J25 (x 1)
Power interposer board J17 to system board J15 (x 1)
SSD power and signal cable
Rear HDD/SSD to system board J3 (x 1)
Power interposer board J15 and CPLD board J2 to fan control
board J3 (x 1)
PCIe switch board power
cable
Power interposer board J12 to PCIe switch board J17 (x 1)
NVMe SSD signal cable for
NVMe SSD 1-20
PCIe switch board J1-J10 to SSD 1-20 (x 10)
Power cable for NVMe SSD
1-20
SSD 1-20 to power Y cable (x 10)
Power interposer board J11 to CPLD board J4 (x 1)
Power Y cable for SSD 1-16
Power interposer board J5, J6 to power Y cable (x 2)
Power Y cable for SSD 17-24
Power interposer board J4 to power Y cable (x 1)
