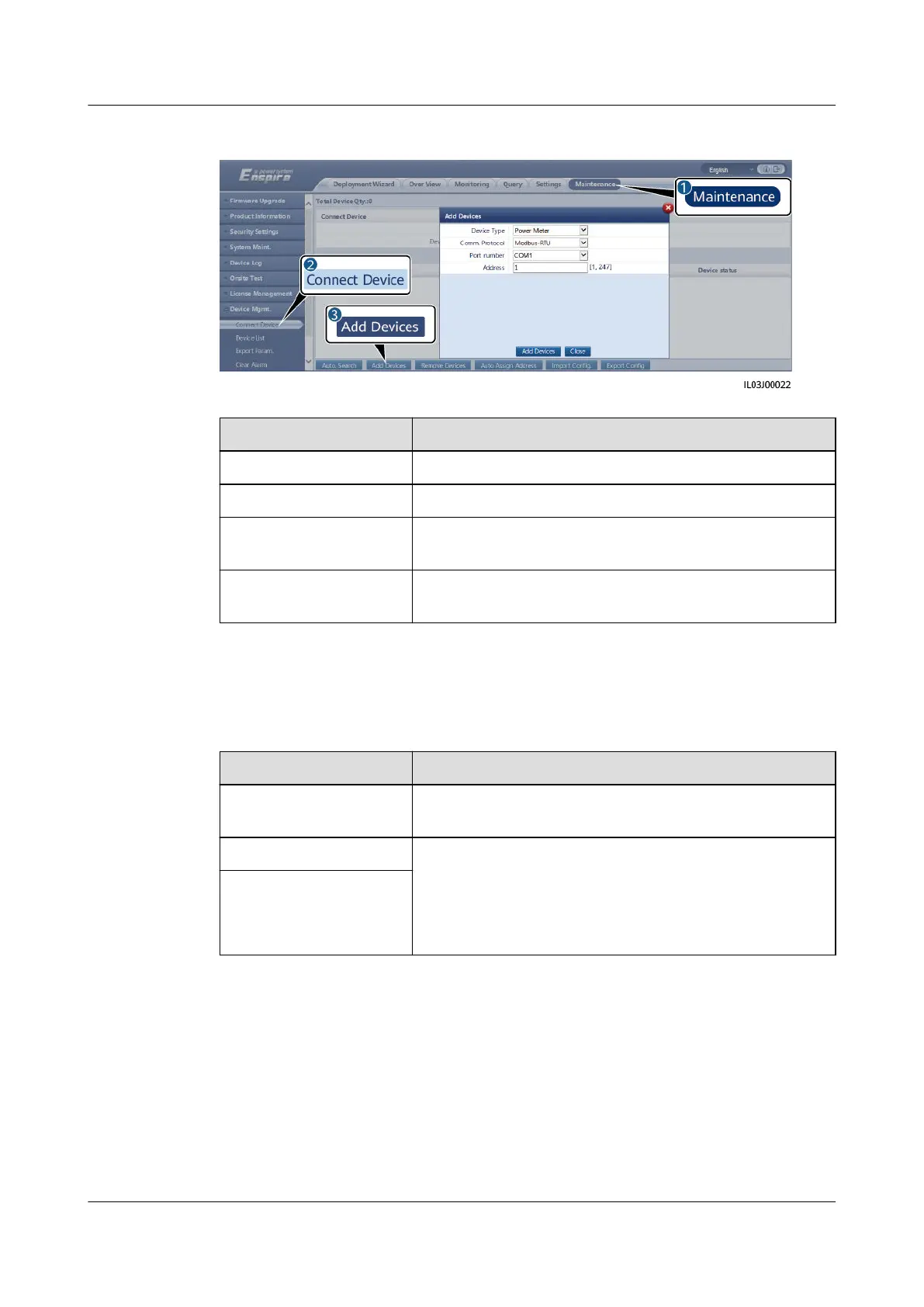

Figure 6-53 Setting access parameters
Parameter Description
Device Type Set this parameter to Power Meter.
Comm. Protocol Set this parameter to Modbus-RTU.
Port number Set this parameter to the serial number of the COM
port connected to the power meter.
Address Set this parameter to the communication address of
the power meter.
Step 2 Choose Monitoring > Meter > Running Param., set power meter parameters and
click Submit.
● If the model of the connected device is displayed in the Intelligent Power
Meter Type drop-down list box, set parameters as follows.
Parameter
Description
Intelligent Power Meter
Type
Set this parameter to the corresponding meter model.
Voltage change ratio ● Set this parameter to 1 when the power meter
uploads a value once.
● When the power meter uploads a value twice, set
this parameter based on the actual transformer
ratio.
Current change ratio
SmartLogger3000
User Manual 6 WebUI Operations
Issue 10 (2022-08-20) Copyright © Huawei Technologies Co., Ltd. 173
