information to the management system. The SmartLogger does not parse the
IEC103 device data.
● Parsing mode: The IEC103 device is connected to the SmartLogger, and the
SmartLogger parses the IEC103 device data.
Transparent Transmission Mode
Step 1 Set IEC103 parameters and click Submit.

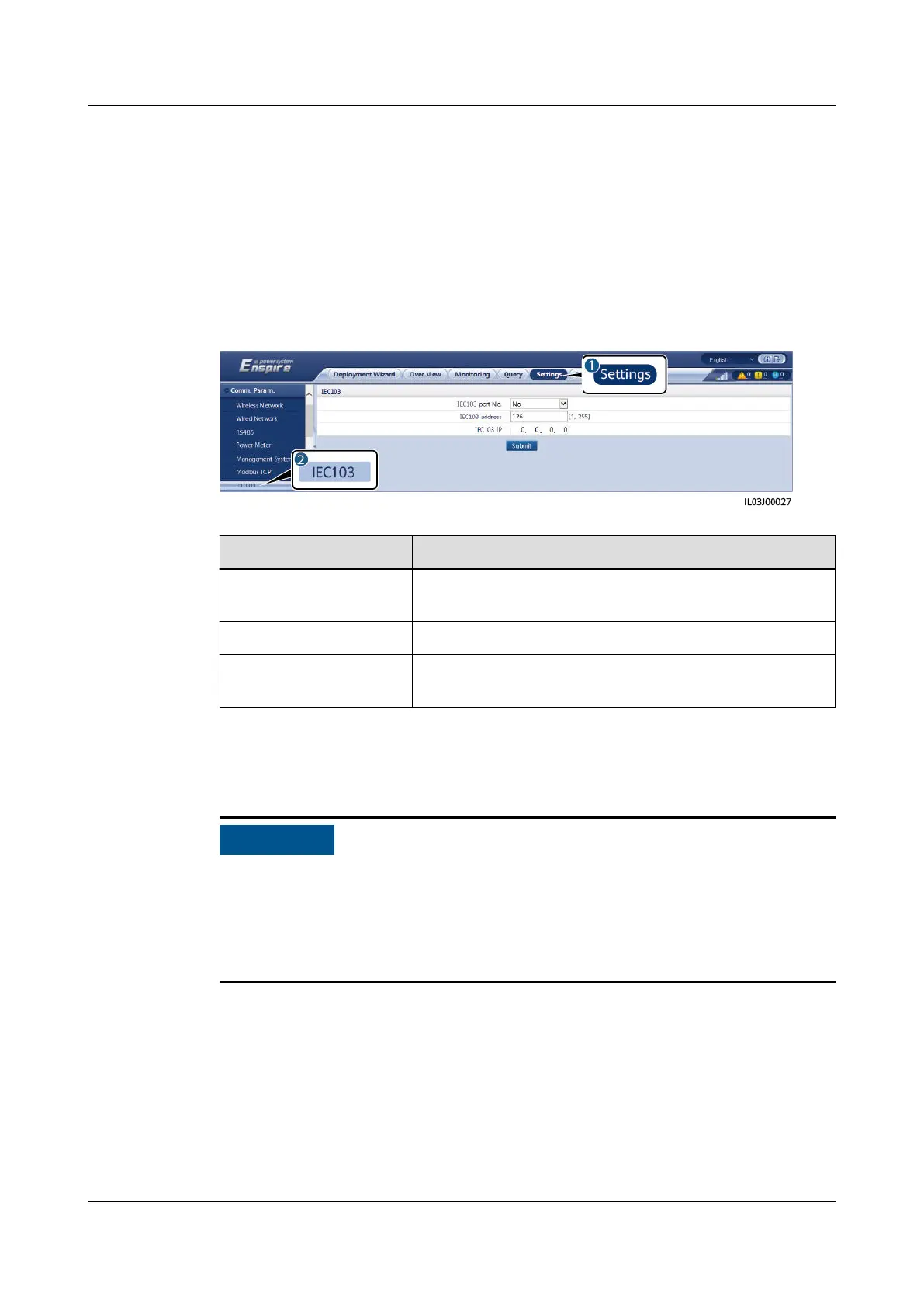

Figure 6-56 Setting IEC103 parameters
Parameter Description
IEC103 port No. Set this parameter based on the COM port connected
to the device.
IEC103 address Set this parameter to the IEC103 device address.
IEC103 IP Set this parameter to the IP address of the
management system.
Step 2 Choose Settings > Other Parameters and check that Data forwarding is set to
Enable.
● If Data forwarding is set to Enable, the SmartLogger transparently transmits
information about unconnected devices to the management system without
parsing device data.
● If Data forwarding is set to Disable, the SmartLogger does not transmit
information about unconnected devices to the management system.
----End
Parsing Mode
The SmartLogger can connect to third-party devices that support IEC103, such as
the relay protection or monitoring device like the transformer substation. The
protocol information points vary depending on vendors. Therefore, you need to
obtain a protocol information
le in .cfg format from Huawei and import the le
into the SmartLogger for successfully connecting to a custom device.
SmartLogger3000
User Manual 6 WebUI Operations
Issue 10 (2022-08-20) Copyright © Huawei Technologies Co., Ltd. 181
